Part Details for BL02RN2R1M2B by Murata Manufacturing Co Ltd
Results Overview of BL02RN2R1M2B by Murata Manufacturing Co Ltd
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Space Technology
Industrial Automation
BL02RN2R1M2B Information
BL02RN2R1M2B by Murata Manufacturing Co Ltd is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for BL02RN2R1M2B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96K7003
|
Newark | Ferrite Bead, 7A, Axial Leaded, Ferrite Case Style:-, Impedance:-, Dc Current Rating:7A, Product Range:Bl02 Series, Dc Resistance Max:-, Impedance Tolerance:-, Product Length:9Mm, Product Width:3.4Mm, Product Height:7.5Mm Rohs Compliant: Yes |Murata BL02RN2R1M2B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
ComSIT USA | AVAILABLE EU | 317 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
BL02RN2R1M2B
|
Avnet Abacus | (Alt: BL02RN2R1M2B) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 143 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Chip Stock | BLSeriesØ3.6x7.5mm7ARadialStraightTypeFerriteBeadInductor | 70500 |
|
RFQ | |
|
|
Win Source Electronics | FERRITE BEAD AXIAL 1LN | 60000 |
|
$1.8572 / $2.7858 | Buy Now |
US Tariff Estimator: BL02RN2R1M2B by Murata Manufacturing Co Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BL02RN2R1M2B
BL02RN2R1M2B CAD Models
-
Part Symbol
-

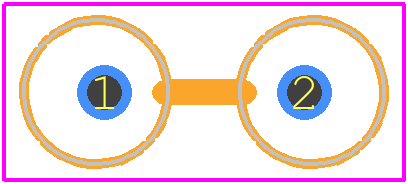

Footprint
-

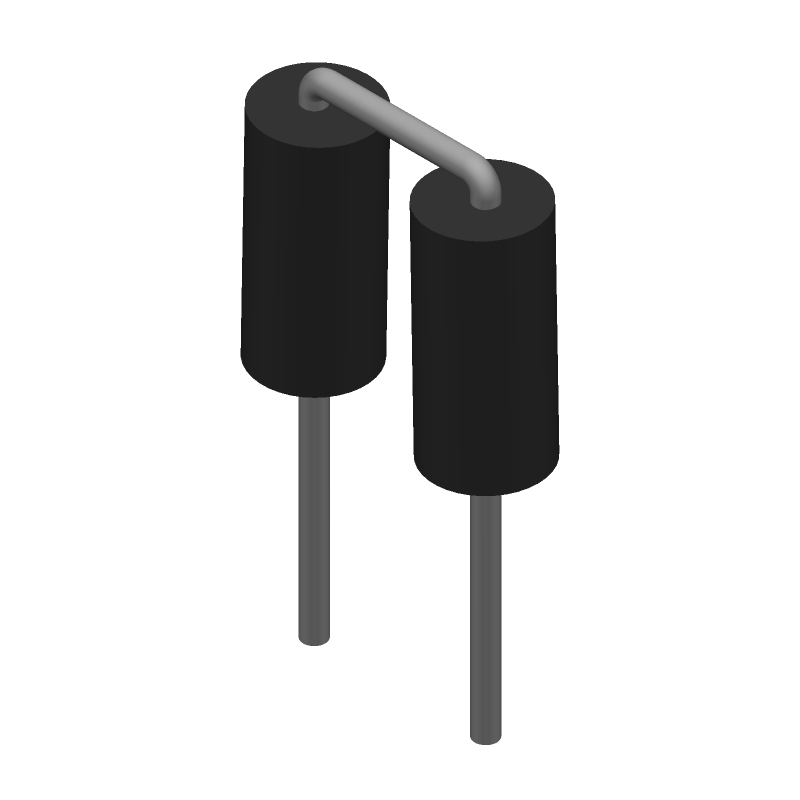

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BL02RN2R1M2B Part Data Attributes
|
|
BL02RN2R1M2B
Murata Manufacturing Co Ltd
Buy Now
Datasheet
|
Compare Parts:
BL02RN2R1M2B
Murata Manufacturing Co Ltd
Ferrite Bead, 1 Function(s), 7A,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MURATA MANUFACTURING CO LTD | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | Murata Electronics | |
| Additional Feature | RADIAL STRAIGHT LEAD TYPE | |
| Filter Type | FERRITE BEAD | |
| Height | 7.5 mm | |
| JESD-609 Code | e2 | |
| Length | 9 mm | |
| Mounting Type | THROUGH HOLE MOUNT | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | BULK | |
| Rated Current | 7 A | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Width | 3.4 mm |
BL02RN2R1M2B Frequently Asked Questions (FAQ)
-
The recommended land pattern for the BL02RN2R1M2B can be found in the Murata datasheet or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
-
Handle the component by the edges, avoid touching the pads or the component body to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat, and ensure the assembly area is ESD-safe.
-
The maximum reflow temperature for the BL02RN2R1M2B is 260°C, as specified in the datasheet. Exceeding this temperature can cause damage to the component.
-
The BL02RN2R1M2B is a ceramic capacitor, which can be sensitive to vibration. However, Murata's datasheet does not provide specific vibration ratings. It's recommended to consult with Murata's application engineers or perform vibration testing to ensure the component's reliability in your specific application.
-
Store the BL02RN2R1M2B components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Keep them in a dry, cool place, and avoid mixing them with other components to prevent damage or contamination.
