BLM18BB221SH1D Information
BLM18BB221SH1D by Murata Manufacturing Co Ltd is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for BLM18BB221SH1D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BLM18BB221SH1D
|
Avnet Americas | - Tape and Reel (Alt: BLM18BB221SH1D) COO: Japan RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0207 / $0.0212 | Buy Now |
|
|
Bristol Electronics | Min Qty: 45 | 4000 |
|
$0.0338 / $0.1125 | Buy Now |
|
DISTI #
BLM18BB221SH1D
|
TME | Ferrite: bead, Imp.@ 100MHz: 220Ω, SMD, 450mA, 0603, R: 450mΩ, BLM Min Qty: 4000 | 0 |
|
$0.0096 / $0.0144 | RFQ |
|
DISTI #
BLM18BB221SH1D
|
Avnet Abacus | (Alt: BLM18BB221SH1D) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: BLM18BB221SH1D by Murata Manufacturing Co Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BLM18BB221SH1D
BLM18BB221SH1D CAD Models
-
Part Symbol
-
Footprint
-

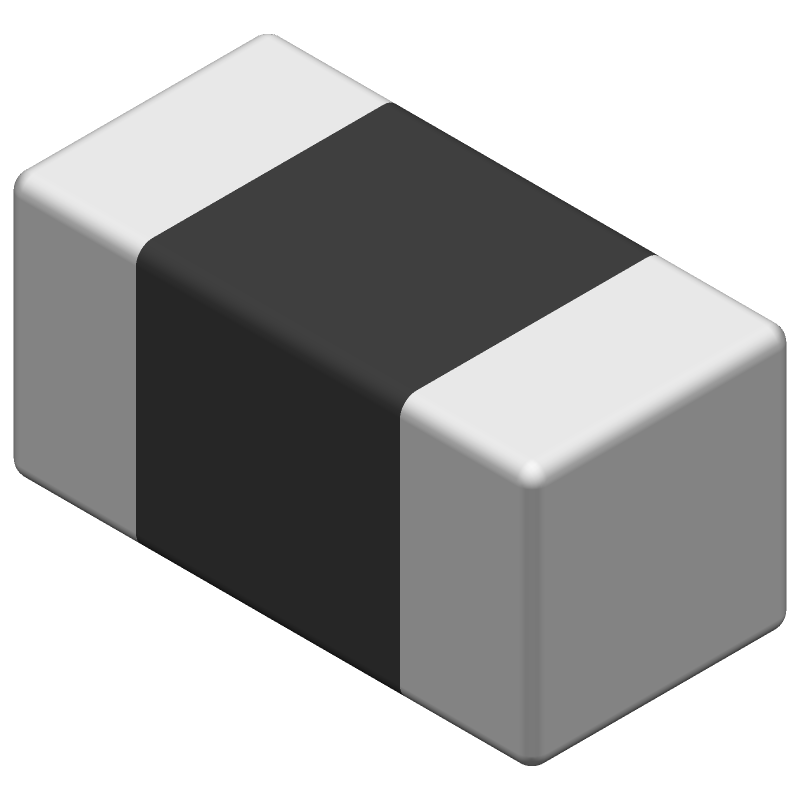

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BLM18BB221SH1D Part Data Attributes
|
|
BLM18BB221SH1D
Murata Manufacturing Co Ltd
Buy Now
Datasheet
|
Compare Parts:
BLM18BB221SH1D
Murata Manufacturing Co Ltd
Ferrite Chip, 1 Function(s), 0.45A, EIA STD PACKAGE SIZE 0603, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MURATA MANUFACTURING CO LTD | |
| Package Description | EIA STD PACKAGE SIZE 0603, 2 PIN | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Murata Electronics | |
| Additional Feature | AEC-Q200 | |
| Case Code | 0603 | |
| Construction | Chip Bead | |
| DC Resistance-Max | 0.45 Ω | |
| Filter Type | FERRITE CHIP | |
| Frequency-Max | 100 MHz | |
| Frequency-Min | 100 MHz | |
| Height | 0.8 mm | |
| JESD-609 Code | e3 | |
| Length | 1.6 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Impedance | 220 OHM Ω | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Current | 0.45 A | |
| Screening Level | AEC-Q200 | |
| Terminal Finish | Tin (Sn) | |
| Width | 0.8 mm |
