BM06B-PASS-TFT(LF)(SN) Information
BM06B-PASS-TFT(LF)(SN) by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SF-SFPP2EPASS-001 | Amphenol Cables on Demand | Amphenol SF-SFPP2EPASS-001 1m SFP+ Cable - Amphenol 10GbE SFP+ Direct Attach Copper Cable (3.3 ft) | |
| SF-SFPP2EPASS-000.5 | Amphenol Cables on Demand | Amphenol SF-SFPP2EPASS-000.5 0.5m SFP+ Cable - Amphenol 10GbE SFP+ Direct Attach Copper Cable (1.6 ft) | |
| SF-SFPP2EPASS-003 | Amphenol Cables on Demand | Amphenol SF-SFPP2EPASS-003 3m SFP+ Cable - Amphenol 10GbE SFP+ Direct Attach Copper Cable (9.8 ft) |
Price & Stock for BM06B-PASS-TFT(LF)(SN)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
JSTBM06B-PASS-TFT(LF)(SN)
|
Heilind Electronics | 6POS 2MM PITCH TOP ENTRY SHROUDED HEADER | Americas - 1875 in Stock |
|
$0.4730 / $0.5112 | Buy Now |
|
DISTI #
SMC-BM06B-PASS-TFT(LF)(SN)
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: TBC | 9321 |
|
RFQ | |
|
|
Chip Stock | ConnectorHeader,PASeries,6Position,2.00mm,SurfaceMount,TopEntry,250V,Tin,Natural | 33500 |
|
RFQ | |
|
|
LCSC | 6P PA 1x6P Tin -25+85 White 2mm 250V 6 3A 1 Surface MountVertical SMDP2mm Headers Male Pins RoHS | 304 |
|
$0.3576 / $0.7136 | Buy Now |
|
|
New Advantage Corporation | 6 Position 2 mm Pitch Top Entry SMT Shrouded Header RoHS: Compliant Min Qty: 1 Package Multiple: 500 | 31224 |
|
$1.6900 / $1.8300 | Buy Now |
|
|
Win Source Electronics | 30000 |
|
$0.3775 / $0.4874 | Buy Now |
US Tariff Estimator: BM06B-PASS-TFT(LF)(SN) by JST Manufacturing
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BM06B-PASS-TFT(LF)(SN)
BM06B-PASS-TFT(LF)(SN) CAD Models
-

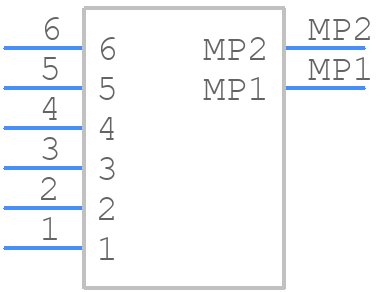

Part Symbol
-

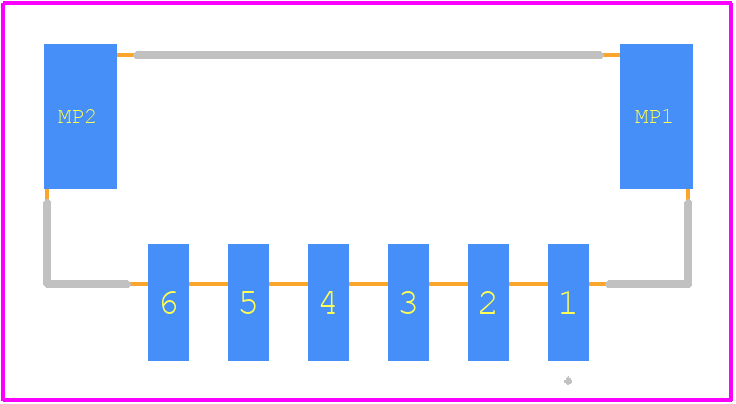

Footprint
-

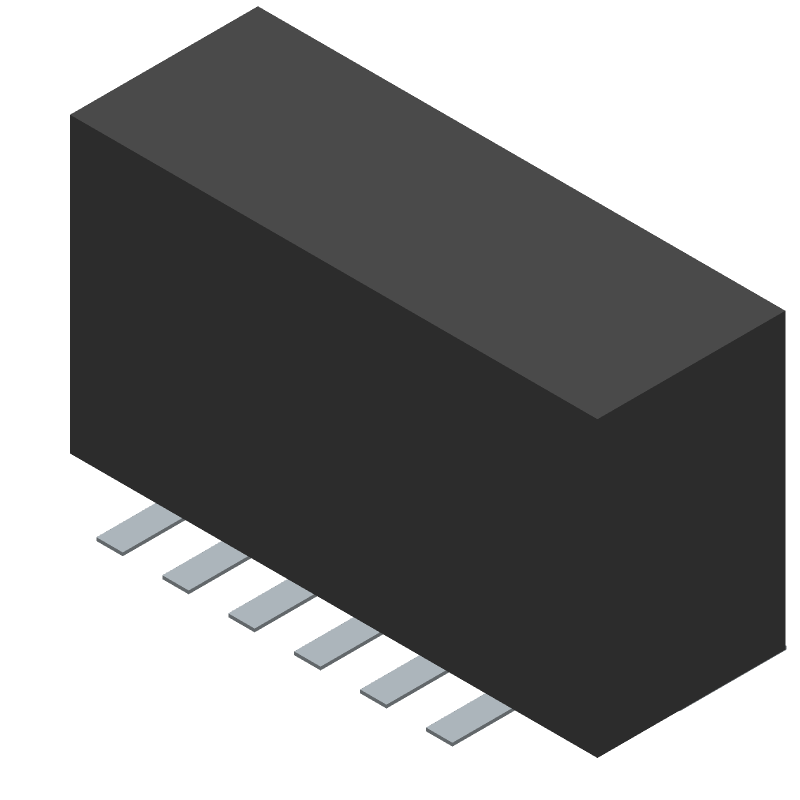

3D Model
