BQ2057WSN Information
BQ2057WSN by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BQ2057WSN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BQ2057WSN
|
TME | IC: PMIC, battery charging controller, Iout: 2A, 8.4V, SO8, tube Min Qty: 1 | 341 |
|
$2.4300 / $4.0200 | Buy Now |
|
|
Component Electronics, Inc | SMT | 125 |
|
$2.5000 / $3.8500 | Buy Now |
|
|
New Advantage Corporation | IC-2057 LITH-ION LDO CHRG MGMT 8-SOIC TI RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 645 |
|
$6.6100 / $7.1600 | Buy Now |
|
|
Win Source Electronics | IC LI-ION LDO CHRG MGMT 8-SOIC | 2500 |
|
$4.5879 / $6.8819 | Buy Now |
US Tariff Estimator: BQ2057WSN by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BQ2057WSN
BQ2057WSN CAD Models
-

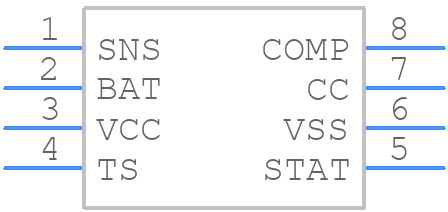

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BQ2057WSN Part Data Attributes
|
|
BQ2057WSN
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
BQ2057WSN
Texas Instruments
Low Dropout linear 2-cell Li-ion battery charge controller with AutoCompTM, 8.4V 8-SOIC -20 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| parentfamilyid | 892923 | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Schedule B Code | 8542.39.00.00 | |
| CAGE Code | 01295, 33809 | |
| UNSPSC | 32101619 | |
| kg CO2e/kg | 12.04 | |
| Average Weight (mg) | 66.775 | |
| CO2e (mg) | 803.971 | |
| Samacsys Description | Charge Mgmt LI-ION/LI-POL 2A 8.4V 8-Pin Texas Instruments BQ2057WSN, Battery Charge Controller Lithium-Ion, Lithium-Polymer, 8-Pin SOIC | |
| Samacsys Manufacturer | Texas Instruments | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Total Weight | 96.73 | |
| Category CO2 Kg | 504 | |
| CO2 | 48751.92 | |
| Compliance Temperature Grade | Commercial Extended: -20C to +70C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2025-06-25 | |
| CAS Accounted for Wt | 100 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.40 | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | LINEAR BATTERY CHARGER | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 4 mA | |
| Supply Voltage-Max (Vsup) | 15 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for BQ2057WSN
This table gives cross-reference parts and alternative options found for BQ2057WSN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BQ2057WSN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BQ2057SN | Unitrode Corp (RETIRED) | Check for Price | Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SOIC-8 | BQ2057WSN vs BQ2057SN |
| BQ2057CSNTRG4 | Texas Instruments | Check for Price | Low Dropout Linear 1-cell Li-Ion Charge Controller with AutoCompTM, 4.2V 8-SOIC -20 to 70 | BQ2057WSN vs BQ2057CSNTRG4 |
| BQ2057TSN | Rochester Electronics LLC | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | BQ2057WSN vs BQ2057TSN |
| BQ2057TSNTR | Texas Instruments | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | BQ2057WSN vs BQ2057TSNTR |
| BQ2057WSNTR | Rochester Electronics LLC | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | BQ2057WSN vs BQ2057WSNTR |
| BQ2057WSN | Unitrode Corp (RETIRED) | Check for Price | Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SOIC-8 | BQ2057WSN vs BQ2057WSN |
| BQ2057CSN | Unitrode Corporation | Check for Price | Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SOIC-8 | BQ2057WSN vs BQ2057CSN |
| BQ2057TSNTRG4 | Texas Instruments | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, PLASTIC, MS-012AA, SOIC-8 | BQ2057WSN vs BQ2057TSNTRG4 |
BQ2057WSN Frequently Asked Questions (FAQ)
-
A good PCB layout is crucial for accurate measurements. TI recommends a 4-layer PCB with a solid ground plane, and keeping the sense lines (VSS and VDD) as short as possible. Also, keep the battery voltage and current sense lines away from noisy digital lines.
-
Calibration involves setting the full-scale capacity (FSC) and the empty voltage (EV) registers. FSC is set based on the battery's nominal capacity, and EV is set based on the battery's voltage at 0% SOC. TI provides a calibration procedure in the datasheet and application notes.
-
Temperature affects the BQ2057WSN's accuracy, especially for voltage and current measurements. TI recommends using an external thermistor to measure temperature and applying temperature compensation using the device's built-in temperature compensation registers.
-
The POR and BOR ensure the device resets properly during power-up and brown-out conditions. Designers should ensure that their system can handle the POR and BOR signals, and that the device is properly reset before starting normal operation.
-
The sense resistors (RSENSE) should be chosen based on the maximum expected current, desired accuracy, and power dissipation. TI provides guidelines for selecting RSENSE in the datasheet and application notes.
