Part Details for BQ2057WSNTR by Texas Instruments
Results Overview of BQ2057WSNTR by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (8 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
BQ2057WSNTR Information
BQ2057WSNTR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BQ2057WSNTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | LowDropoutlinear2-cellLi-ionbatterychargecontrollerwithAutoCompTM,8.4V8-SOIC-20to70 | 3880 |
|
RFQ | |
|
|
LCSC | Lithium Battery 2 SOIC-8 Battery Management RoHS | 5 |
|
$4.5495 / $7.1431 | Buy Now |
|
|
Win Source Electronics | IC LI-ION LDO CHRG MGMT 8-SOIC | 2380 |
|
$4.3641 / $6.5461 | Buy Now |
US Tariff Estimator: BQ2057WSNTR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BQ2057WSNTR
BQ2057WSNTR CAD Models
-

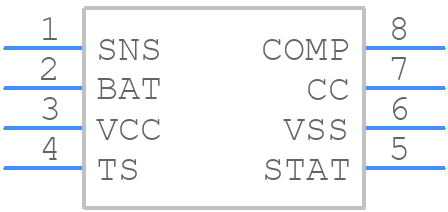

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BQ2057WSNTR Part Data Attributes
|
|
BQ2057WSNTR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
BQ2057WSNTR
Texas Instruments
Low Dropout linear 2-cell Li-ion battery charge controller with AutoCompTM, 8.4V 8-SOIC -20 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustable Threshold | Yes | |
| Analog IC - Other Type | Linear Battery Charger | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max (Isup) | 4 Ma | |
| Supply Voltage-Max (Vsup) | 15 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Other | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for BQ2057WSNTR
This table gives cross-reference parts and alternative options found for BQ2057WSNTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BQ2057WSNTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BQ2057CSN | Texas Instruments | $2.1012 | Low Dropout linear 1-cell Li-ion battery charge controller with AutoCompTM, 4.2V 8-SOIC -20 to 70 | BQ2057WSNTR vs BQ2057CSN |
| BQ2057SNG4 | Texas Instruments | Check for Price | Low Dropout linear 1-cell Li-ion battery charge controller with AutoCompTM, 4.1V 8-SOIC -20 to 70 | BQ2057WSNTR vs BQ2057SNG4 |
| BQ2057WSNG4 | Texas Instruments | Check for Price | Low Dropout Linear 2-cell Li-Ion Charge Controller with AutoCompTM, 8.4V 8-SOIC -20 to 70 | BQ2057WSNTR vs BQ2057WSNG4 |
| BQ2057WSN | Unitrode Corporation | Check for Price | Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SOIC-8 | BQ2057WSNTR vs BQ2057WSN |
| BQ2057CSNTR | Rochester Electronics LLC | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | BQ2057WSNTR vs BQ2057CSNTR |
| BQ2057TSN | Texas Instruments | Check for Price | Low Dropout linear 2-cell Li-ion battery charge controller with AutoCompTM, 8.2V 8-SOIC -20 to 70 | BQ2057WSNTR vs BQ2057TSN |
| BQ2057CSN | Rochester Electronics LLC | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | BQ2057WSNTR vs BQ2057CSN |
| BQ2057CSNTR | Texas Instruments | Check for Price | Low Dropout linear 1-cell Li-ion battery charge controller with AutoCompTM, 4.2V 8-SOIC -20 to 70 | BQ2057WSNTR vs BQ2057CSNTR |
BQ2057WSNTR Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power traces short and wide, and use a common ground point for the IC and the battery.
-
Use a high-precision resistor divider network to scale the battery voltage, and calibrate the device using the CAL pin. Also, ensure that the battery voltage is within the recommended range of 2.5V to 4.5V.
-
The BQ2057WSNTR can handle up to 2A of continuous current, but it's recommended to limit the current to 1.5A for optimal performance and to prevent overheating.
-
Use the OVP pin to detect overcharge conditions and disconnect the charger using an external FET or relay. The OVP threshold is set to 4.2V, but can be adjusted using an external resistor divider network.
-
Yes, the BQ2057WSNTR is designed to work with lithium-ion polymer batteries. However, ensure that the battery's protection circuit is disabled or configured to work with the BQ2057WSNTR's charging algorithm.
