Part Details for BQ27510DRZR-G3 by Texas Instruments
Results Overview of BQ27510DRZR-G3 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Computing and Data Storage
BQ27510DRZR-G3 Information
BQ27510DRZR-G3 by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BQ27510DRZR-G3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 2 |
|
RFQ | ||
|
|
Chip Stock | ICBATTFUELGAUGELI-ION12SONBatteryBatteryMonitorICLithiumIon12-SON(2.5x4) | 29579 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 693 |
|
RFQ | |
|
|
Win Source Electronics | IC BATT FUEL GAUGE LI-ION 12SON | 23049 |
|
$5.1429 / $6.6428 | Buy Now |
US Tariff Estimator: BQ27510DRZR-G3 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BQ27510DRZR-G3
BQ27510DRZR-G3 CAD Models
-

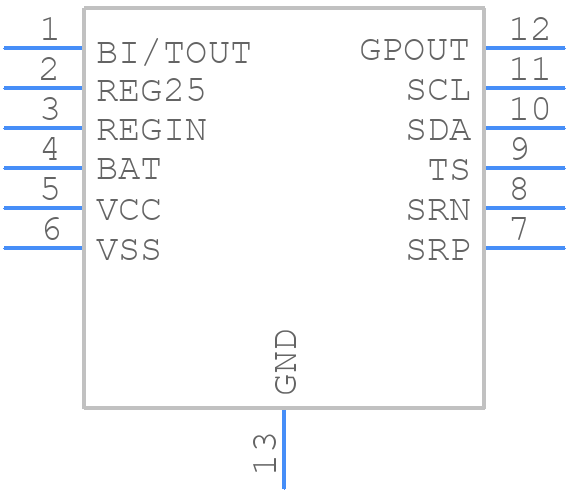

Part Symbol
-
Footprint
-

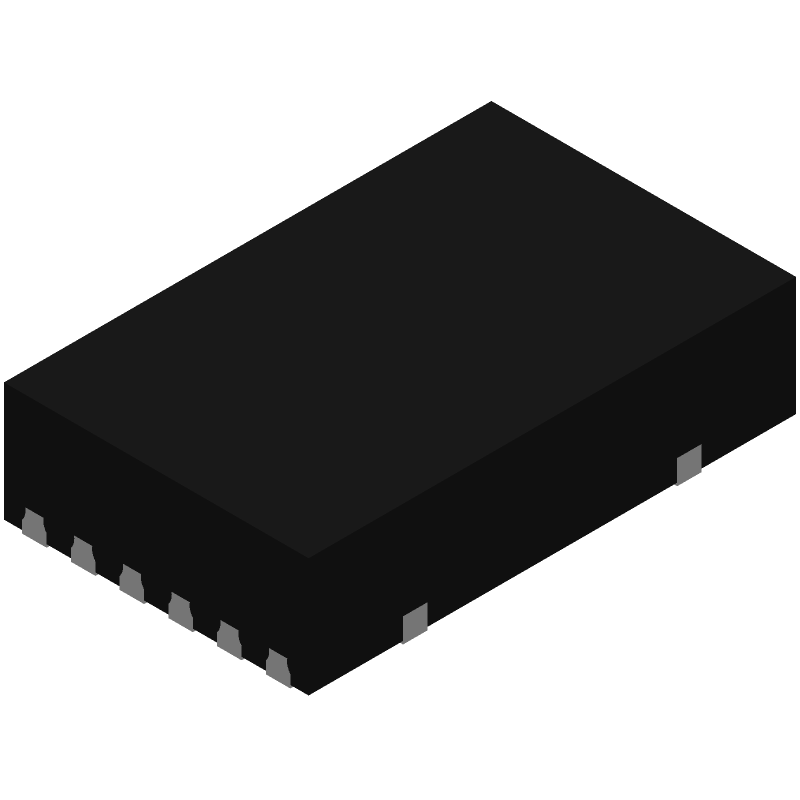

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BQ27510DRZR-G3 Part Data Attributes
|
|
BQ27510DRZR-G3
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
BQ27510DRZR-G3
Texas Instruments
System-side Impedance-Track fuel gauge that provides 32 bytes of user-programmable data Flash memory 12-SON -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Package Description | Hvson, Solcc12,.16,16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Battery Gauge | |
| JESD-30 Code | R-PDSO-N12 | |
| JESD-609 Code | e4 | |
| Length | 4 Mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC12,.16,16 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.6 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.4 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2.5 Mm |
Alternate Parts for BQ27510DRZR-G3
This table gives cross-reference parts and alternative options found for BQ27510DRZR-G3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BQ27510DRZR-G3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BQ27510DRZR | Texas Instruments | $4.0941 | System side Impedance Track™; fuel gauge with integrated LDO 12-SON -40 to 85 | BQ27510DRZR-G3 vs BQ27510DRZR |
| BQ27510DRZR-G1 | Texas Instruments | Check for Price | System-side Impedance-Track fuel gauge that provides 96 bytes of user-programmable data Flash memory 12-SON -40 to 85 | BQ27510DRZR-G3 vs BQ27510DRZR-G1 |
BQ27510DRZR-G3 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate layer for the fuel gauge circuitry is recommended. Keep the sense resistors close to the battery and use a Kelvin connection to minimize errors.
-
Use the TI-provided calibration software and follow the application note (SLUA533) guidelines to create a custom calibration file for your specific battery. This involves measuring the battery's capacity, internal resistance, and other characteristics.
-
The BQ27510DRZR-G3 can track up to 4,096 charge/discharge cycles. If your application requires more, consider using an external cycle counter or a different fuel gauge IC.
-
Yes, but you'll need to use an external balancing circuit to ensure equal charging and discharging of each cell. The BQ27510DRZR-G3 can only measure the total capacity of the pack, not individual cell capacities.
-
Implement a state-of-charge (SOC) correction algorithm in your system's firmware to adjust the fuel gauge reading based on the battery's voltage, temperature, and other factors. This can improve accuracy at extreme SOC levels.
