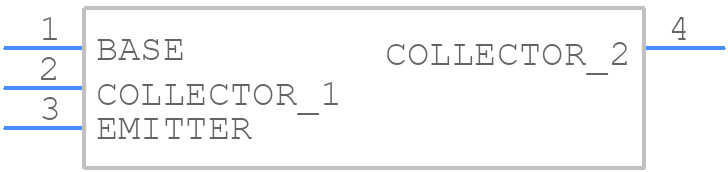

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSP52T3G by onsemi
Overview of BSP52T3G by onsemi
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Price & Stock for BSP52T3G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69K8933
|
Newark | Darlington Transistor, Npn, 80V, Sot-223, Transistor Polarity:Npn, No. Of Pins:4Pins, Transistor Mounting:Surface Mount, Operating Temperature Max:150°C, Product Range:-, Qualification:-, Collector Emitter Voltage Max:80V Rohs Compliant: Yes |Onsemi BSP52T3G Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1210 / $0.1860 | Buy Now |
|
DISTI #
09R9391
|
Newark | Darlington Transistor, Npn, 80V, Sot-223, Transistor Polarity:Npn, No. Of Pins:4Pins, Transistor Mounting:Surface Mount, Operating Temperature Max:150°C, Product Range:-, Qualification:Aec-Q101, Collector Emitter Voltage Max:80V Rohs Compliant: Yes |Onsemi BSP52T3G Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.2060 | Buy Now |
|
DISTI #
BSP52T3GOSCT-ND
|
DigiKey | TRANS NPN DARL 80V 1A SOT223 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1199 / $0.4100 | Buy Now |
|
DISTI #
BSP52T3G
|
Avnet Americas | Trans Darlington NPN 80V 1A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: BSP52T3G) RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.1253 / $0.1403 | Buy Now |
|
DISTI #
863-BSP52T3G
|
Mouser Electronics | Darlington Transistors SS DL XSTR NPN 80V RoHS: Compliant | 2374 |
|
$0.1160 / $0.4100 | Buy Now |
|
DISTI #
70100378
|
RS | Transistor, Darlington, Si, NPN, Medium Power, Small Signal, Vo 80VDC, VI 5VDC | ON Semiconductor BSP52T3G RoHS: Not Compliant Min Qty: 50 Package Multiple: 1 Container: Bulk | 0 |
|
$0.3090 / $0.3630 | RFQ |
|
|
Future Electronics | BSP Series 80 V 1 A NPN Small Signal Darlington Transistor - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Container: Reel | 4000Reel |
|
$0.1200 / $0.1280 | Buy Now |
|
|
Future Electronics | BSP Series 80 V 1 A NPN Small Signal Darlington Transistor - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 8000 Package Multiple: 4000 Container: Reel | 0Reel |
|
$0.1200 / $0.1280 | Buy Now |
|
DISTI #
BSP52T3G
|
Avnet Americas | Trans Darlington NPN 80V 1A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: BSP52T3G) RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.1253 / $0.1403 | Buy Now |
|
DISTI #
BSP52T3G
|
TME | Transistor: NPN, bipolar, Darlington, 80V, 1A, 0.8W, SOT223 Min Qty: 5 | 0 |
|
$0.1250 / $0.2210 | RFQ |
Part Details for BSP52T3G
BSP52T3G CAD Models
BSP52T3G Part Data Attributes
|
|
BSP52T3G
onsemi
Buy Now
Datasheet
|
Compare Parts:
BSP52T3G
onsemi
NPN Bipolar Darlington Transistor, SOT-223 (TO-261) 4 LEAD, 4000-REEL
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-223 (TO-261) 4 LEAD | |
| Package Description | TO-261, 4 PIN | |
| Pin Count | 4 | |
| Manufacturer Package Code | 0.0318 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 64 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 1 A | |
| Collector-Emitter Voltage-Max | 80 V | |
| Configuration | DARLINGTON | |
| DC Current Gain-Min (hFE) | 2000 | |
| JEDEC-95 Code | TO-261AA | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 1.25 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for BSP52T3G
This table gives cross-reference parts and alternative options found for BSP52T3G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BSP52T3G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| BSP52,115 | BSP52 - NPN Darlington transistor@en-us SC-73 4-Pin | Nexperia | BSP52T3G vs BSP52,115 |
| BSP52 | 1000mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, ROHS COMPLIANT, SOT-223, 4 PIN | Rochester Electronics LLC | BSP52T3G vs BSP52 |
| BSP52 | 500mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-261AA, PLASTIC, CASE 318E-04, 4 PIN | Motorola Mobility LLC | BSP52T3G vs BSP52 |
| BSP52 | Small Signal Bipolar Transistor | Nexperia | BSP52T3G vs BSP52 |
| BSP52,115 | BSP50; BSP51; BSP52 - NPN Darlington transistors SC-73 4-Pin | NXP Semiconductors | BSP52T3G vs BSP52,115 |
| 933969470115 | TRANSISTOR 2000 mA, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SMD, SC-73, 4 PIN, BIP General Purpose Small Signal | NXP Semiconductors | BSP52T3G vs 933969470115 |
| 933969470115 | Small Signal Bipolar Transistor | Nexperia | BSP52T3G vs 933969470115 |
| BSP52 | Small Signal Bipolar Transistor, 0.5A I(C), 90V V(BR)CEO, 1-Element, NPN, Silicon | YAGEO Corporation | BSP52T3G vs BSP52 |
| BSP52 | Small Signal Bipolar Transistor, 0.8A I(C), 1-Element, NPN, Silicon, TO-261AA, SOT-223, 4 PIN | Fairchild Semiconductor Corporation | BSP52T3G vs BSP52 |
| BSP52/T3 | Small Signal Bipolar Transistor | Nexperia | BSP52T3G vs BSP52/T3 |
