BT136S-600E,118 Information
BT136S-600E,118 by WeEn Semiconductor Co Ltd is a TRIAC.
TRIACs are under the broader part category of Trigger Devices.
Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 951600E20H | Amphenol Communications Solutions | XCede, High speed backplane connectors, 6-Pair, 8 Position, Open. | |
| 951600E40H | Amphenol Communications Solutions | XCede, High speed backplane connectors, 6-Pair, 8 Position, Open. | |
| 951600E70H | Amphenol Communications Solutions | XCede, High speed backplane connectors, 6-Pair, 8 Position, Open. |
Price & Stock for BT136S-600E,118
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BT136S-600E,118
|
Avnet Americas | Thyristor TRIAC 600V 27A 3-Pin(2+Tab) DPAK T/R - Tape and Reel (Alt: BT136S-600E,118) COO: China RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1812 / $0.1928 | Buy Now |
|
|
Rochester Electronics | Four Quadrant Triac RoHS: Compliant Status: Active Min Qty: 1 | 5000 |
|
$0.1550 / $0.2500 | Buy Now |
|
DISTI #
BT136S-600E.118
|
TME | Triac, 600V, 4A, DPAK, Igt: 10/25mA, Ifsm: 25A, 4Q, sensitive gate Min Qty: 1 | 1449 |
|
$0.2740 / $0.9100 | Buy Now |
|
DISTI #
BT136S-600E,118
|
Avnet Silica | Thyristor TRIAC 600V 27A 3Pin2Tab DPAK TR (Alt: BT136S-600E,118) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BT136S-600E,118
|
EBV Elektronik | Thyristor TRIAC 600V 27A 3Pin2Tab DPAK TR (Alt: BT136S-600E,118) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: BT136S-600E,118 by WeEn Semiconductor Co Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BT136S-600E,118
BT136S-600E,118 CAD Models
-
Part Symbol
-

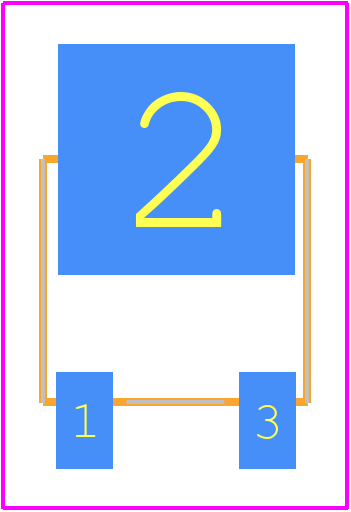

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BT136S-600E,118 Part Data Attributes
|
|
BT136S-600E,118
WeEn Semiconductor Co Ltd
Buy Now
Datasheet
|
Compare Parts:
BT136S-600E,118
WeEn Semiconductor Co Ltd
4 Quadrant Logic Level TRIAC, 600V V(DRM), 4A I(T)RMS, TO-252AA, PLASTIC, SC-63, TO-252, DPAK-3/2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WEEN SEMICONDUCTORS CO LTD | |
| Package Description | PLASTIC, SC-63, TO-252, DPAK-3/2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.30.00.80 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | WeEn Semiconductors | |
| Additional Feature | SENSITIVE GATE | |
| Case Connection | MAIN TERMINAL 2 | |
| Configuration | SINGLE | |
| JEDEC-95 Code | TO-252AA | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| RMS On-state Current-Max | 4 A | |
| Reference Standard | IEC-60134 | |
| Repetitive Peak Off-state Voltage | 600 V | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC |
Alternate Parts for BT136S-600E,118
This table gives cross-reference parts and alternative options found for BT136S-600E,118. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BT136S-600E,118, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BT136S-600,118 | WeEn Semiconductor Co Ltd | $0.4179 | 4 Quadrant Logic Level TRIAC, 600V V(DRM), 4A I(T)RMS, TO-252AA, PLASTIC, SC-63, TO-252, DPAK-3/2 | BT136S-600E,118 vs BT136S-600,118 |
| BT136S-600E | NXP Semiconductors | Check for Price | 600V, 4A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SC-63, DPAK-3 | BT136S-600E,118 vs BT136S-600E |
| BT136S-600G | NXP Semiconductors | Check for Price | TRIAC, 600 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SOT-428, 3 PIN | BT136S-600E,118 vs BT136S-600G |
| BT136S-600F/T3 | NXP Semiconductors | Check for Price | TRIAC, 600 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SC-63, DPAK-3 | BT136S-600E,118 vs BT136S-600F/T3 |
| BT136S-600DT/R | NXP Semiconductors | Check for Price | 600V, 4A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SC-63, DPAK-3 | BT136S-600E,118 vs BT136S-600DT/R |
| BT136S-600/T3 | NXP Semiconductors | Check for Price | TRIAC, 600 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SC-63, DPAK-3 | BT136S-600E,118 vs BT136S-600/T3 |
| BT136S-600D | WeEn Semiconductor Co Ltd | Check for Price | 4 Quadrant Logic Level TRIAC, 600V V(DRM), 4A I(T)RMS, TO-252AA, SC-63, TO-252, DPAK-3/2 | BT136S-600E,118 vs BT136S-600D |
| 934049290118 | WeEn Semiconductor Co Ltd | Check for Price | 4 Quadrant Logic Level TRIAC, 600V V(DRM), 4A I(T)RMS | BT136S-600E,118 vs 934049290118 |
| 934048960118 | WeEn Semiconductor Co Ltd | Check for Price | 4 Quadrant Logic Level TRIAC, 600V V(DRM), 4A I(T)RMS | BT136S-600E,118 vs 934048960118 |
| BT136S-600F,118 | NXP Semiconductors | Check for Price | BT136S-600F | BT136S-600E,118 vs BT136S-600F,118 |
BT136S-600E,118 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BT136S-600E,118 is -40°C to 125°C.
-
To ensure safe operating area (SOA) for the BT136S-600E,118, you should operate the device within the recommended voltage and current ratings, and ensure that the device is properly heat-sinked to prevent overheating.
-
The recommended gate current for the BT136S-600E,118 is typically in the range of 10-50 mA, depending on the specific application and switching frequency.
-
While the BT136S-600E,118 can be used for high-frequency switching applications, it's not the most suitable device for such applications due to its relatively high switching losses. For high-frequency applications, a more suitable device with lower switching losses would be recommended.
-
To protect the BT136S-600E,118 from electrical overstress (EOS), you should use a suitable voltage clamp or transient voltage suppressor (TVS) to limit the voltage across the device, and ensure that the device is properly heat-sinked to prevent overheating.
