Part Details for BT151-800R,127 by WeEn Semiconductor Co Ltd
Results Overview of BT151-800R,127 by WeEn Semiconductor Co Ltd
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Renewable Energy
Entertainment and Gaming
BT151-800R,127 Information
BT151-800R,127 by WeEn Semiconductor Co Ltd is a Silicon Controlled Rectifier.
Silicon Controlled Rectifiers are under the broader part category of Trigger Devices.
Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 54122-106120800RLF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded stacking vertical header, through hole, double Row, 12 position, 2.54mm (0.100in) pitch | |
| 54122-402400800RLF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded stacking vertical header, through hole, double Row, 40 position, 2.54mm (0.100in) pitch |
Price & Stock for BT151-800R,127
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65AC5891
|
Newark | Scr Thyristor, 12A, 800V, To-220Ab, Peak Repetitive Off-State Voltage, Vdrm:800V, Gate Trigger Current Max, Igt:15Ma, Current It Av:7.5A, On State Rms Current It(Rms):12A, Thyristor Case Style:To-220Ab, No. Of Pins:3Pins, Peak Non Rohs Compliant: Yes |Ween Semiconductors BT151-800R,127 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 4238 |
|
$0.3600 / $1.3200 | Buy Now |
|
DISTI #
BT151-800R,127
|
Avnet Americas | Thyristor SCR 800V 132A 3-Pin(3+Tab) TO-220AB Tube - Rail/Tube (Alt: BT151-800R,127) COO: China Min Qty: 6000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Tube | 0 |
|
$0.2437 / $0.2594 | Buy Now |
|
DISTI #
BT151-800R.127
|
TME | Thyristor, 800V, Ifmax: 12A, 7.5A, Igt: 2mA, TO220AB, THT, tube, 2us Min Qty: 1 | 0 |
|
$0.3180 / $1.0900 | RFQ |
|
DISTI #
BT151-800R,127
|
Avnet Silica | Thyristor SCR 800V 132A 3Pin3Tab TO220AB Tube (Alt: BT151-800R,127) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days | Silica - 108000 |
|
Buy Now | |
|
DISTI #
BT151-800R,127
|
EBV Elektronik | Thyristor SCR 800V 132A 3Pin3Tab TO220AB Tube (Alt: BT151-800R,127) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | SOT78/RAILH/THYRISTORS RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 342000 |
|
$0.2931 / $0.3175 | Buy Now |
US Tariff Estimator: BT151-800R,127 by WeEn Semiconductor Co Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BT151-800R,127
BT151-800R,127 CAD Models
-
Part Symbol
-

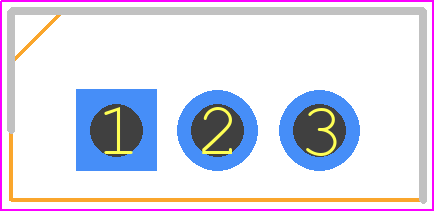

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BT151-800R,127 Part Data Attributes
|
|
BT151-800R,127
WeEn Semiconductor Co Ltd
Buy Now
Datasheet
|
Compare Parts:
BT151-800R,127
WeEn Semiconductor Co Ltd
Silicon Controlled Rectifier, 12A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-220AB, PLASTIC, SC-46, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Plastic, Sc-46, 3 Pin | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.30.00.80 | |
| Factory Lead Time | 12 Weeks | |
| Additional Feature | High Reliability | |
| Case Connection | Anode | |
| Configuration | Single | |
| DC Gate Trigger Current-Max | 15 Ma | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| RMS On-state Current-Max | 12 A | |
| Reference Standard | Iec-60134 | |
| Repetitive Peak Off-state Voltage | 800 V | |
| Repetitive Peak Reverse Voltage | 800 V | |
| Surface Mount | No | |
| Terminal Finish | Tin | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single | |
| Trigger Device Type | Scr |
Alternate Parts for BT151-800R,127
This table gives cross-reference parts and alternative options found for BT151-800R,127. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BT151-800R,127, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TN1215-800G-TR | STMicroelectronics | $0.7430 | 12A standard SCRs | BT151-800R,127 vs TN1215-800G-TR |
| CS220-12N | Central Semiconductor Corp | Check for Price | Silicon Controlled Rectifier, 12A I(T)RMS, 12000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-220AB, TO-220, 3 PIN | BT151-800R,127 vs CS220-12N |
| TYN812 | STMicroelectronics | Check for Price | 12A, 800V, SCR, TO-220AB | BT151-800R,127 vs TYN812 |
| BT151-800C,127 | WeEn Semiconductor Co Ltd | Check for Price | Silicon Controlled Rectifier, 12A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-220AB, PLASTIC PACKAGE-3 | BT151-800R,127 vs BT151-800C,127 |
| 2N6399 | onsemi | Check for Price | 12A, 800V, SCR, TO-220AB, CASE 221A-07, 3 PIN | BT151-800R,127 vs 2N6399 |
| MCR12N | onsemi | Check for Price | 12A, 800V, SCR, TO-220AB, CASE 221A-09, 3 PIN | BT151-800R,127 vs MCR12N |
| S8012D | Littelfuse Inc | Check for Price | Silicon Controlled Rectifier, 12A I(T)RMS, 7600mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-252, TO-252, 3 PIN | BT151-800R,127 vs S8012D |
| 2N6399 | TT Electronics Power and Hybrid / Semelab Limited | Check for Price | SCR, TO-220AB, TO-220, 3 PIN | BT151-800R,127 vs 2N6399 |
| 2N6399 | Semitronics Corp | Check for Price | Silicon Controlled Rectifier, 12A I(T)RMS, 5000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-220AB, TO-220, 3 PIN | BT151-800R,127 vs 2N6399 |
| TN1625-800G-TR | STMicroelectronics | Check for Price | 12A, 800V, SCR, D2PAK-3 | BT151-800R,127 vs TN1625-800G-TR |
BT151-800R,127 Frequently Asked Questions (FAQ)
-
The recommended operating frequency for the BT151-800R,127 is up to 400 Hz, but it can be used at higher frequencies with proper cooling and derating.
-
To ensure safe operating area (SOA) for the BT151-800R,127, follow the guidelines in the datasheet for maximum voltage, current, and power dissipation, and consider factors like temperature, switching frequency, and load characteristics.
-
The recommended gate current for the BT151-800R,127 is typically in the range of 10-50 mA, but the optimal value depends on the specific application and switching frequency.
-
The BT151-800R,127 is rated for operation up to 125°C, but derating is required for temperatures above 100°C. Consult the datasheet for specific derating guidelines.
-
Use a suitable overvoltage protection circuit, such as a voltage clamp or a metal-oxide varistor (MOV), and consider adding overcurrent protection, such as a fuse or a current-limiting resistor, to prevent damage to the device.
