BUF634T Information
BUF634T by Texas Instruments is a Buffer Amplifier.
Buffer Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| BUF634T | Texas Instruments | 250-mA high-speed buffer - see BUF634A for upgraded version 5-TO-220 -40 to 125 | |
| BUF634TG3 | Texas Instruments | 250-mA high-speed buffer - see BUF634A for upgraded version 5-TO-220 -40 to 125 |
Price & Stock for BUF634T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 43 |
|
RFQ | ||
|
|
Rochester Electronics | Buffer Amplifier, 1 Func, BIPolar, PSFM5 RoHS: Compliant Status: Not Recommended for New Designs Min Qty: 1 | 9202 |
|
$12.3100 / $15.3900 | Buy Now |
|
DISTI #
BUF634T
|
Chip One Stop | OP Amp Single GP +/-18V 5-Pin (5+Tab) TO-220 Tube RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 49 |
|
$12.6000 / $28.5000 | Buy Now |
|
|
LCSC | 100mV 2uA 2V/ns -2.25V18V 180MHz 1 TO-220-5 Amplifiers RoHS | 293 |
|
$13.3151 / $17.1020 | Buy Now |
US Tariff Estimator: BUF634T by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BUF634T
BUF634T CAD Models
-

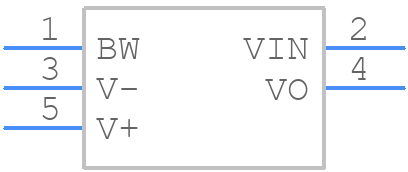

Part Symbol
-

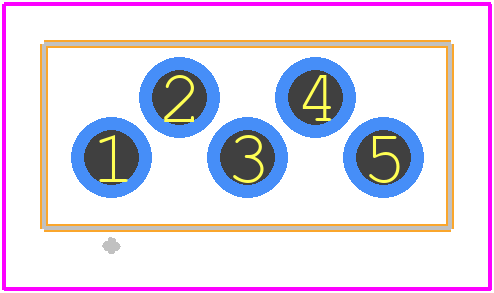

Footprint
-

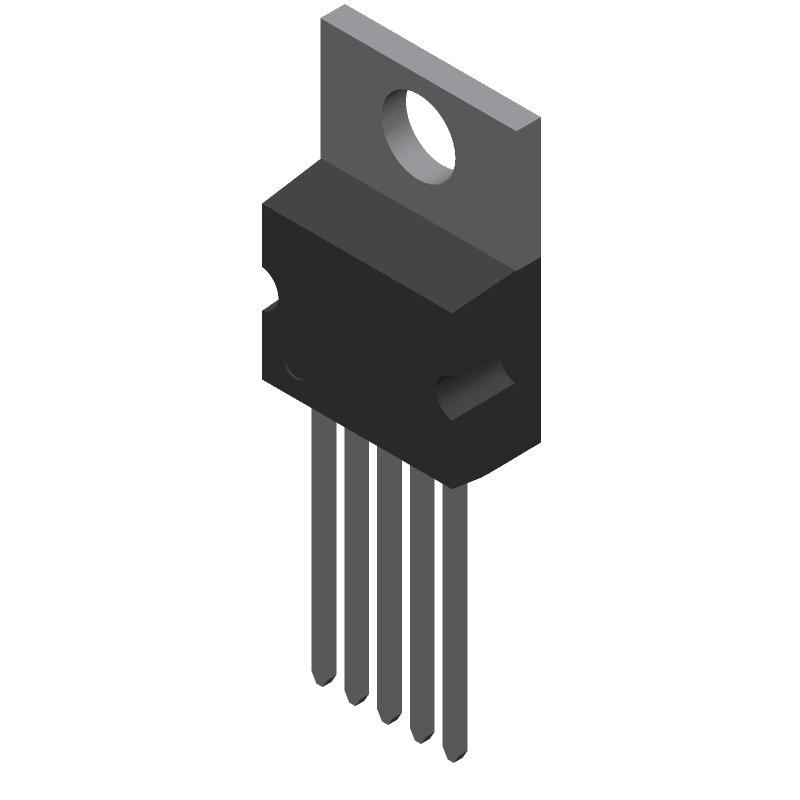

3D Model
