BUX98A Information
BUX98A by STMicroelectronics is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BUX98A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89K0479
|
Newark | Bipolar Transistor, Npn, 450V, Transistor Polarity:Npn, Collector Emitter Voltage Max:450V, Continuous Collector Current:30A, Power Dissipation:250W, Transistor Mounting:Through Hole, No. Of Pins:2Pins, Transition Frequency:-, Msl:- Rohs Compliant: Yes |Stmicroelectronics BUX98A RoHS: Compliant Min Qty: 11 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
ComSIT USA | Power Bipolar Transistor, 30A I(C), 450V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AE, Metal, 2 Pin ECCN: EAR99 RoHS: Compliant |
|
|
RFQ |
US Tariff Estimator: BUX98A by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BUX98A
BUX98A CAD Models
-

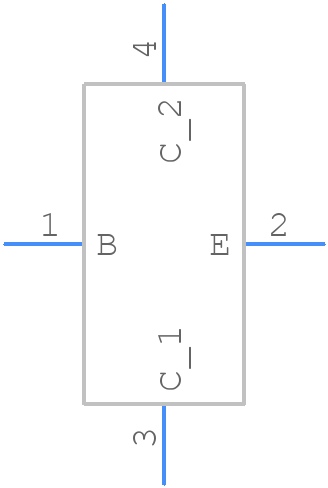

Part Symbol
-

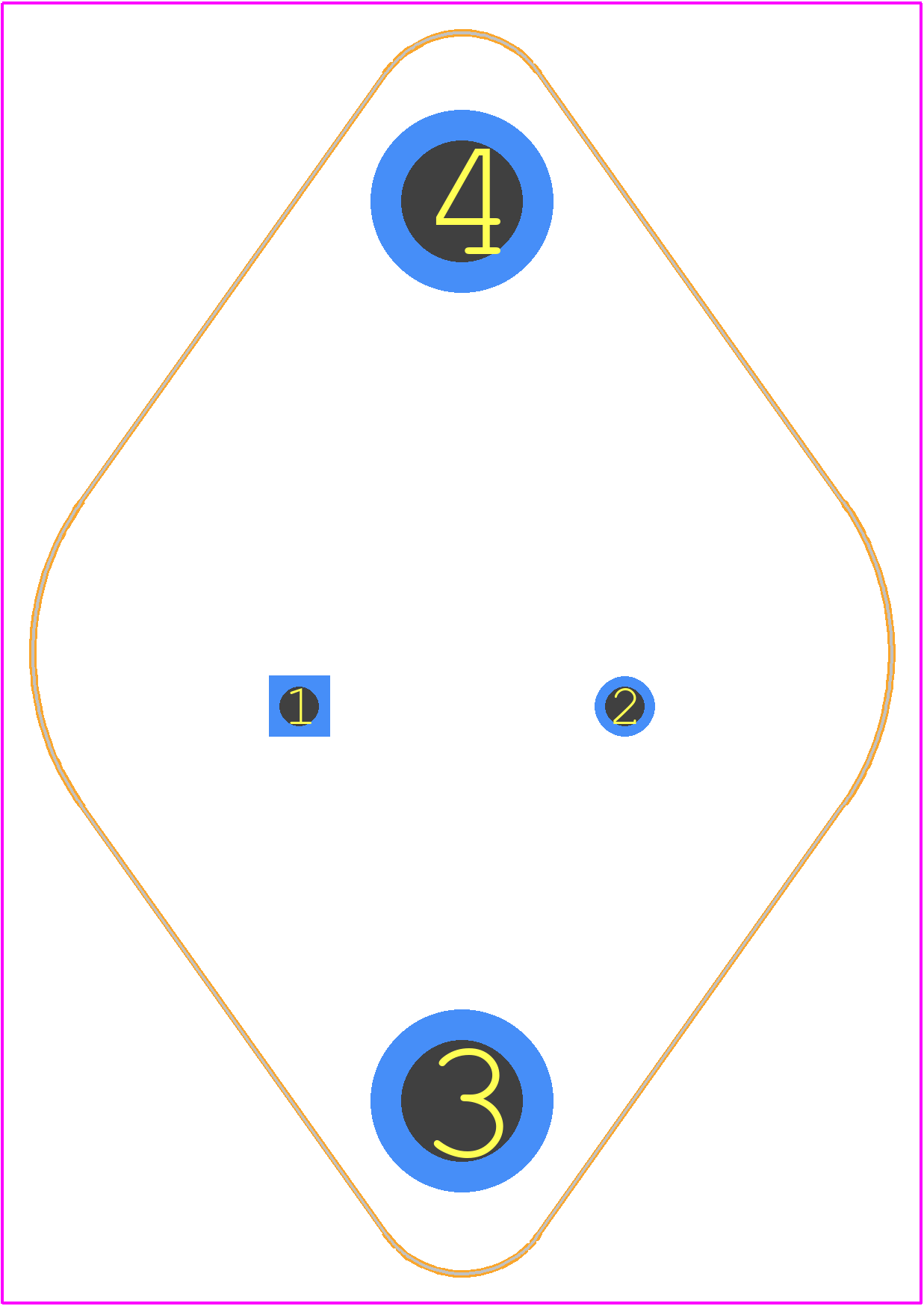

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BUX98A Part Data Attributes
|
|
BUX98A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
BUX98A
STMicroelectronics
30A, 450V, NPN, Si, POWER TRANSISTOR, TO-3, TO-3, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-204AA | |
| Package Description | TO-3, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 30 A | |
| Collector-Emitter Voltage-Max | 450 V | |
| Configuration | SINGLE | |
| JEDEC-95 Code | TO-3 | |
| JESD-30 Code | O-MBFM-P2 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Package Body Material | METAL | |
| Package Shape | ROUND | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 250 W | |
| Power Dissipation-Max (Abs) | 250 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | PIN/PEG | |
| Terminal Position | BOTTOM | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Turn-off Time-Max (toff) | 3800 ns | |
| Turn-on Time-Max (ton) | 1000 ns | |
| VCEsat-Max | 5 V |
