BZX84C30LT1G Information
BZX84C30LT1G by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX84C30LT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
83H6469
|
Newark | Zener Diode, 225Mw, 30V, Sot-23, Zener Voltage Nom:30V, Power Dissipation:225Mw, Diode Case Style:Sot-23, No. Of Pins:3Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:Bzx84Cxxxlt1G Series Rohs Compliant: Yes |Onsemi BZX84C30LT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5 |
|
$0.0050 | Buy Now |
|
DISTI #
29X5986
|
Newark | Diode, Zener, 30V, 0.225W, Sot-23, Zener Voltage Nom:30V, Power Dissipation:225Mw, Diode Case Style:Sot-23, No. Of Pins:3Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:Bzx84Cxxxlt1G Series Rohs Compliant: Yes |Onsemi BZX84C30LT1G RoHS: Compliant Min Qty: 39000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0190 | Buy Now |
|
DISTI #
BZX84C30LT1G
|
Avnet Americas | - Tape and Reel (Alt: BZX84C30LT1G) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 12000 |
|
$0.0127 / $0.0137 | Buy Now |
|
DISTI #
83H6469
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 83H6469) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 5 Partner Stock |
|
$0.0340 | Buy Now |
|
DISTI #
70100402
|
RS | DIODE, ZENER, VR 30V, IF 10MA, PKG SOT-23 (TO-236),VF 0.9V, CJ 70PF, TJ +150C, IR 2MA Min Qty: 200 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0280 / $0.0330 | RFQ |
|
|
Bristol Electronics | 3000 |
|
RFQ | ||
|
|
Bristol Electronics | 2801 |
|
RFQ | ||
|
|
Bristol Electronics | 2566 |
|
RFQ | ||
|
|
Rochester Electronics | Zener Diode, 30V, 6.6%, 0.25W, Unidirectional, TO-236AB RoHS: Compliant Status: Active Min Qty: 1 | 6999995 |
|
$0.0101 / $0.0163 | Buy Now |
|
DISTI #
BZX84C30LT1G
|
TME | Diode: Zener, 0.3W, 30V, SMD, reel,tape, SOT23, single diode, 0.05uA Min Qty: 1 | 3943 |
|
$0.0174 / $0.0800 | Buy Now |
US Tariff Estimator: BZX84C30LT1G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BZX84C30LT1G
BZX84C30LT1G CAD Models
-

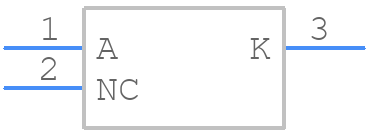

Part Symbol
-
