Capacitors / Fixed Capacitors / C4532C0G2J473J320KA
Datasheets
packagee
C4532C0G2J473J320KA by:
TDK Corporation

Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT

Part Details for C4532C0G2J473J320KA by TDK Corporation

Results Overview of C4532C0G2J473J320KA by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C4532C0G2J473J320KA Information

C4532C0G2J473J320KA by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C4532C0G2J473J320KA

Part # Distributor Description Stock Price Buy
DISTI # 2547043
Farnell CAP, 0.047F, 630V, 5%, C0G/NP0, 1812 COO: JP RoHS: Compliant Min Qty: 1 Lead time: 14 Weeks, 2 Days Container: Cut Tape 1000
  • 1 $2.3784
  • 10 $1.3127
  • 50 $1.2693
  • 100 $1.2247
  • 200 $1.1997
$1.1997 / $2.3784 Buy Now
DISTI # 2547043RL
Farnell CAP, 0.047F, 630V, 5%, C0G/NP0, 1812 COO: JP RoHS: Compliant Min Qty: 100 Lead time: 14 Weeks, 2 Days Container: Reel 1000
  • 100 $1.2247
  • 200 $1.1997
$1.1997 / $1.2247 Buy Now
DISTI # 2987985
Farnell CAP, 0.047UF, 630V, MLCC, 1812 COO: JP RoHS: Compliant Min Qty: 500 Lead time: 13 Weeks, 4 Days Container: Reel 0
  • 500 $1.0460
$1.0460 Buy Now
DISTI # C4532C0G2J473J320KA
Avnet Americas - Tape and Reel (Alt: C4532C0G2J473J320KA) COO: Japan RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 500 $0.8580
  • 1,000 $0.8277
  • 2,000 $0.8000
  • 4,000 $0.7742
  • 8,000 $0.7500
$0.7500 / $0.8580 Buy Now
DISTI # C4532C0G2J473JKA
TME Capacitor: ceramic, MLCC, 47nF, 630V, C0G (NP0), ±5%, SMD, 1812 Min Qty: 500 0
  • 500 $0.8300
$0.8300 RFQ
DISTI # C4532C0G2J473J320KA
Avnet Abacus - Tape and Reel (Alt: C4532C0G2J473J320KA) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # C4532C0G2J473J320KA
Chip One Stop Passives RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 410
  • 1 $2.1600
  • 10 $0.7760
  • 50 $0.7060
  • 100 $0.6480
  • 200 $0.6430
  • 1,000 $0.6420
  • 16,000 $0.6400
$0.6400 / $2.1600 Buy Now
Chip Stock CSeries18120.047uF630V±5%ToleranceC0G/NP0MultilayerCeramicCapacitor 3890
RFQ

US Tariff Estimator: C4532C0G2J473J320KA by TDK Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

C4532C0G2J473J320KA
TDK Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for C4532C0G2J473J320KA

C4532C0G2J473J320KA CAD Models

  • Part Symbol

    schematic symbol

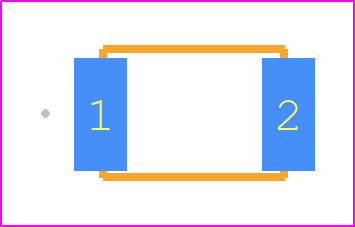

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C4532C0G2J473J320KA Part Data Attributes

Parametric Data
C4532C0G2J473J320KA TDK Corporation
Buy Now Datasheet
Compare Parts:
C4532C0G2J473J320KA TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 16 Weeks
Capacitance 0.047 µF
Capacitor Type Ceramic Capacitor
Dielectric Material Ceramic
Height 3.2 Mm
JESD-609 Code e3
Length 4.5 Mm
Mounting Feature Surface Mount
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, 7 Inch
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 630 V
Size Code 1812
Surface Mount Yes
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel Ppm/°C
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Width 3.2 Mm

Alternate Parts for C4532C0G2J473J320KA

This table gives cross-reference parts and alternative options found for C4532C0G2J473J320KA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C4532C0G2J473J320KA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1812A6300473JCT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP C4532C0G2J473J320KA vs 1812A6300473JCT
1812Y6300473JCT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP C4532C0G2J473J320KA vs 1812Y6300473JCT
1812J6300473JCT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP C4532C0G2J473J320KA vs 1812J6300473JCT
1812F6300473JCB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP C4532C0G2J473J320KA vs 1812F6300473JCB
1812Y6300473JCB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP C4532C0G2J473J320KA vs 1812Y6300473JCB
1812F6300473JCR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP C4532C0G2J473J320KA vs 1812F6300473JCR
1812A6300473JCB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP C4532C0G2J473J320KA vs 1812A6300473JCB
1812F6300473JCT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 630V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.047uF, Surface Mount, 1812, CHIP C4532C0G2J473J320KA vs 1812F6300473JCT
equivalents icon

C4532C0G2J473J320KA Related Parts

C4532C0G2J473J320KA Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the C4532C0G2J473J320KA is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the C4532C0G2J473J320KA is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.

  • The maximum operating temperature for the C4532C0G2J473J320KA is 125°C.

  • Yes, the C4532C0G2J473J320KA is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.

  • The ESR of the C4532C0G2J473J320KA is 0.05 ohms at 100 kHz.
