Part Details for CD4023BM96 by Texas Instruments
Results Overview of CD4023BM96 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (7 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD4023BM96 Information
CD4023BM96 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4023BM96 | Texas Instruments | CMOS Triple 3-Input NAND Gate 14-SOIC -55 to 125 |
Price & Stock for CD4023BM96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CD4023BM96
|
TME | IC: digital, NAND, Ch: 4, IN: 2, CMOS, SMD, SOIC14, 3÷18VDC, -55÷125°C Min Qty: 1 | 1025 |
|
$0.2440 / $0.8700 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
LCSC | 90ns15V50pF 1uA 3V18V NAND Gate SOIC-14 Gates and Inverters RoHS | 989 |
|
$0.2183 / $0.4985 | Buy Now |
US Tariff Estimator: CD4023BM96 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CD4023BM96
CD4023BM96 CAD Models
-

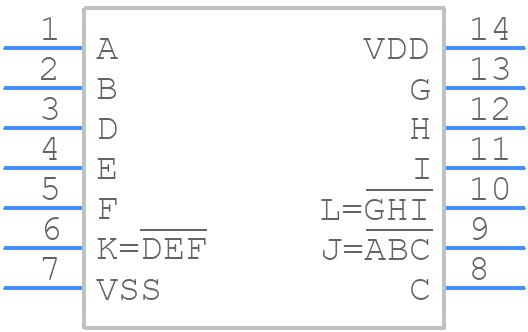

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CD4023BM96 Part Data Attributes
|
|
CD4023BM96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4023BM96
Texas Instruments
Three-channel 3-input 3V-to-18V NAND gate 14-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop14,.25 | |
| Pin Count | 14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Nand Gate | |
| Max I(ol) | 0.0015 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Inputs | 3 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.03 Ma | |
| Prop. Delay@Nom-Sup | 250 Ns | |
| Propagation Delay (tpd) | 250 Ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | No | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Military | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for CD4023BM96
This table gives cross-reference parts and alternative options found for CD4023BM96. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4023BM96, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC14023BDR2 | Rochester Electronics LLC | Check for Price | NAND Gate, 4000/14000/40000 Series, 3-Func, 3-Input, CMOS, PDSO14, SOIC-14 | CD4023BM96 vs MC14023BDR2 |
| MC14023BD | Motorola Mobility LLC | Check for Price | 4000/14000/40000 SERIES, TRIPLE 3-INPUT NAND GATE, PDSO14, PLASTIC, SOIC-14 | CD4023BM96 vs MC14023BD |
| HEC4023BT | NXP Semiconductors | Check for Price | 4000/14000/40000 SERIES, TRIPLE 3-INPUT NAND GATE, PDSO14, PLASTIC, SOT-108-1, SO-14 | CD4023BM96 vs HEC4023BT |
| HEC4023BT,118 | Nexperia | Check for Price | NAND Gate, 4000/14000/40000 Series, 3-Func, 3-Input, CMOS, PDSO14 | CD4023BM96 vs HEC4023BT,118 |
| CD4023BM96G4 | Texas Instruments | Check for Price | 4000/14000/40000 SERIES, TRIPLE 3-INPUT NAND GATE, PDSO14, GREEN, PLASTIC, SOIC-14 | CD4023BM96 vs CD4023BM96G4 |
| CD4023BMT | Texas Instruments | Check for Price | Three-channel 3-input 3V-to-18V NAND gate 14-SOIC -55 to 125 | CD4023BM96 vs CD4023BMT |
| MC14023UBDR2 | Motorola Mobility LLC | Check for Price | 4000/14000/40000 SERIES, TRIPLE 3-INPUT NAND GATE, PDSO14, PLASTIC, SOIC-14 | CD4023BM96 vs MC14023UBDR2 |
CD4023BM96 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for CD4023BM96 is 3V to 18V, with a typical voltage of 5V.
-
To ensure proper thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid exceeding the maximum junction temperature of 150°C.
-
The maximum frequency of operation for CD4023BM96 is 10 MHz, but it can be affected by factors such as input rise and fall times, and output loading.
-
The propagation delay of CD4023BM96 is typically around 10-20 ns, and can be affected by factors such as input rise and fall times, and output loading. Ensure that your design takes into account the propagation delay to avoid timing issues.
-
While CD4023BM96 is a reliable device, it is not specifically designed for high-reliability or aerospace applications. For such applications, consider using devices with specific certifications, such as QML or ESCC, and consult with Texas Instruments for guidance.
