CD4050BE Information
CD4050BE by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD4050BE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AH3800
|
Newark | Ic, Buffer, Non Inv, 6Ch, 16Dip, Logic Device Type:Buffer, Non Inverting, Logic Family/Base Number:Cd4050, Logic Case Style:Dip, No. Of Pins:16Pins, Supply Voltage Min:3V, Supply Voltage Max:18V, Logic Ic Family:Cd4000, Logic Ic Rohs Compliant: Yes |Texas Instruments CD4050BE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.6490 / $0.8590 | Buy Now |
|
|
Bristol Electronics | 415 |
|
RFQ | ||
|
|
Bristol Electronics | 9 |
|
RFQ | ||
|
|
Bristol Electronics | 1 |
|
RFQ | ||
|
|
Rochester Electronics | Buffer, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDIP16 RoHS: Compliant Status: Active Min Qty: 1 | 7950 |
|
$0.2326 / $0.3752 | Buy Now |
|
DISTI #
CD4050BE
|
TME | IC: digital, buffer,non-inverting,translator, Ch: 6, CMOS, THT Min Qty: 1 | 1892 |
|
$0.2540 / $0.5500 | Buy Now |
|
|
ComSIT USA | CMOS HEX BUFFER/CONVERTER Buffer, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDIP16 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 232 |
|
RFQ | |
|
|
LCSC | 1 20uA 3V18V 6 70ns5V50pF DIP-16 Buffers Drivers Receivers Transceivers RoHS | 1 |
|
$0.3250 / $0.6545 | Buy Now |
|
|
New Advantage Corporation | IC-4050 CMOS HEX BUFFER/TTL DRIVER,NON INVER DIP16 RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 1202 |
|
$0.8078 / $0.8752 | Buy Now |
US Tariff Estimator: CD4050BE by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CD4050BE
CD4050BE CAD Models
-

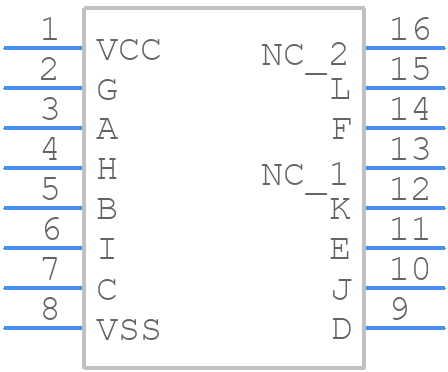

Part Symbol
-
