Part Details for CD4094BPWR by Texas Instruments
Results Overview of CD4094BPWR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD4094BPWR Information
CD4094BPWR by Texas Instruments is a Shift Register.
Shift Registers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4094BPWR | Texas Instruments | CMOS 8-Stage Shift-and-Store Bus Register 16-TSSOP -55 to 125 |
Price & Stock for CD4094BPWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AJ5424
|
Newark | Ic, Cd4094, Register, Tssop16, Logic Family/Base Number:Cd4094, Shift Register Function:Serial To Parallel, No. Of Elements:1 Element, No. Of Bits Per Element:8Bit, Logic Case Style:Tssop, No. Of Pins:16Pins, Supply Voltage Min:3V, rohs Compliant: Yes |Texas Instruments CD4094BPWR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1756 |
|
$0.3850 / $0.4980 | Buy Now |
|
|
Bristol Electronics | 780 |
|
RFQ | ||
|
|
Rochester Electronics | CD4094B CMOS 8-Stage Shift-and-Store Bus Register RoHS: Compliant Status: Active Min Qty: 1 | 20 |
|
$0.1411 / $0.2276 | Buy Now |
|
DISTI #
CD4094BPWR-TEX-0
|
TME | IC: digital, shift register,parallel in,latch, CMOS, SMD, TSSOP16 Min Qty: 2000 | 4000 |
|
$0.2297 | Buy Now |
|
|
Ameya Holding Limited | IC BUS REGISTER 8STAGE 16-TSSOP | 2000 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
LCSC | 3MHz 8 3V18V 1 6.8mA 95ns15V50pF Serial-to-Parallel TSSOP-16 Shift Registers RoHS | 1254 |
|
$0.1930 / $0.4076 | Buy Now |
US Tariff Estimator: CD4094BPWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CD4094BPWR
CD4094BPWR CAD Models
-

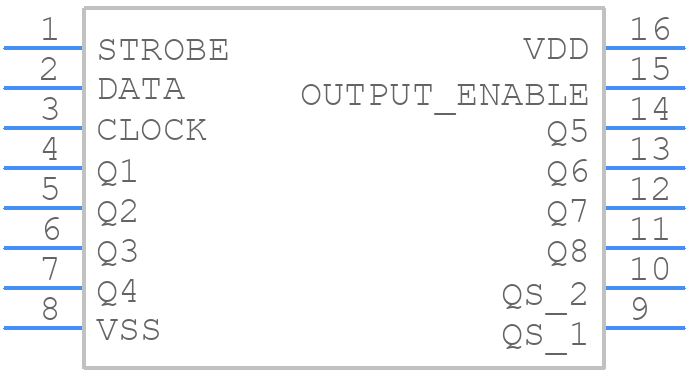

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CD4094BPWR Part Data Attributes
|
|
CD4094BPWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4094BPWR
Texas Instruments
CMOS 8-Stage Shift-and-Store Bus Register 16-TSSOP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP, TSSOP16,.25 | |
| Pin Count | 16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | COMPLIMENTARY SERIAL OUTPUT ALSO AVAILABLE | |
| Count Direction | RIGHT | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | SERIAL IN PARALLEL OUT | |
| Max Frequency@Nom-Sup | 1250000 Hz | |
| Max I(ol) | 0.004200000000000001 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 3 mA | |
| Prop. Delay@Nom-Sup | 250 ns | |
| Propagation Delay (tpd) | 840 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 4.4 mm | |
| fmax-Min | 3 MHz |
Alternate Parts for CD4094BPWR
This table gives cross-reference parts and alternative options found for CD4094BPWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4094BPWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC14094BDT | onsemi | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, TSSOP-16 | CD4094BPWR vs MC14094BDT |
| CD4094BPWRG4 | Texas Instruments | Check for Price | CMOS 8-Stage Shift-and-Store Bus Register 16-TSSOP -55 to 125 | CD4094BPWR vs CD4094BPWRG4 |
| CD4094BPWRE4 | Texas Instruments | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, TSSOP-16 | CD4094BPWR vs CD4094BPWRE4 |
| CD4094BPWE4 | Texas Instruments | Check for Price | CMOS 8-Stage Shift-and-Store Bus Register 16-TSSOP -55 to 125 | CD4094BPWR vs CD4094BPWE4 |
| CD4094BPWG4 | Texas Instruments | Check for Price | CMOS 8-Stage Shift-and-Store Bus Register 16-TSSOP -55 to 125 | CD4094BPWR vs CD4094BPWG4 |
CD4094BPWR Frequently Asked Questions (FAQ)
-
The CD4094BPWR can handle clock frequencies up to 10 MHz.
-
The CD4094BPWR requires a single 5V power supply, and it's recommended to use a decoupling capacitor of 0.1uF to 1uF between VCC and GND to ensure proper operation.
-
The CD4094BPWR can sink or source up to 1mA of current per output pin.
-
The CD4094BPWR has a reset input (R) that can be used to reset the device. A low signal on the R input will reset the device.
-
While the CD4094BPWR is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the output voltage levels may not be compatible with 3.3V logic, and the device's performance may be affected.
