CD54HC4060F3A Information
CD54HC4060F3A by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD54HC4060F3A | Texas Instruments | High Speed CMOS Logic 14-Stage Binary Counter with Oscillator 16-CDIP -55 to 125 |
Price & Stock for CD54HC4060F3A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 847 |
|
RFQ |
US Tariff Estimator: CD54HC4060F3A by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CD54HC4060F3A
CD54HC4060F3A CAD Models
-

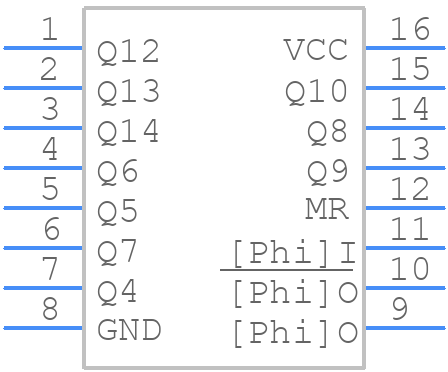

Part Symbol
-

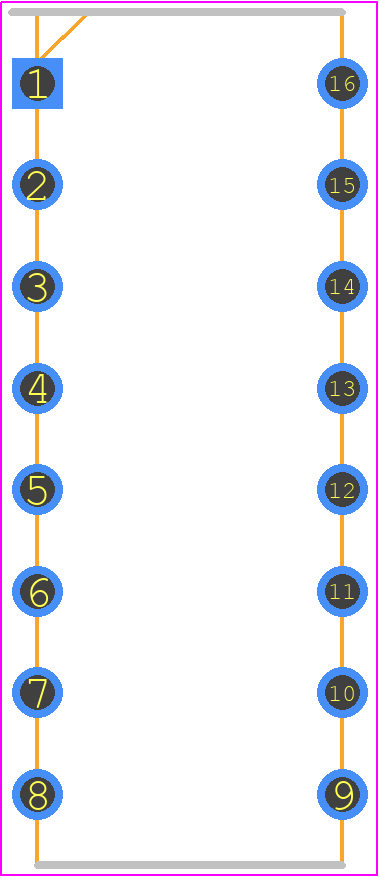

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CD54HC4060F3A Part Data Attributes
|
|
CD54HC4060F3A
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD54HC4060F3A
Texas Instruments
High Speed CMOS Logic 14-Stage Binary Counter with Oscillator 16-CDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | DIP, DIP16,.3 | |
| Pin Count | 16 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUTS FROM 10 STAGES AVAILABLE; BUILT-IN OSCILLATOR | |
| Count Direction | UP | |
| Family | HC/UH | |
| JESD-30 Code | R-GDIP-T16 | |
| JESD-609 Code | e0 | |
| Length | 19.56 mm | |
| Load Capacitance (CL) | 50 pF | |
| Load/Preset Input | NO | |
| Logic IC Type | BINARY COUNTER | |
| Max Frequency@Nom-Sup | 20000000 Hz | |
| Max I(ol) | 0.0052 A | |
| Mode of Operation | ASYNCHRONOUS | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | CERAMIC, GLASS-SEALED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 0.08 mA | |
| Prop. Delay@Nom-Sup | 64 ns | |
| Propagation Delay (tpd) | 450 ns | |
| Qualification Status | Not Qualified | |
| Screening Level | 38535Q/M;38534H;883B | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Trigger Type | NEGATIVE EDGE | |
| Width | 7.62 mm | |
| fmax-Min | 23 MHz |
Alternate Parts for CD54HC4060F3A
This table gives cross-reference parts and alternative options found for CD54HC4060F3A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD54HC4060F3A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74HC4060N | Texas Instruments | $0.2883 | 14-Stage Asynchronous Binary Counters And Oscillators 16-PDIP -40 to 85 | CD54HC4060F3A vs SN74HC4060N |
| MM54HC4060J | National Semiconductor Corporation | Check for Price | IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 14-BIT UP BINARY COUNTER, CDIP16, DIP-16, Counter | CD54HC4060F3A vs MM54HC4060J |
| MC54HC4060JDS | Freescale Semiconductor | Check for Price | IC,COUNTER,UP,14-BIT BINARY,HC-CMOS,DIP,16PIN,CERAMIC | CD54HC4060F3A vs MC54HC4060JDS |
| MC54HC4060AJ | Motorola Mobility LLC | Check for Price | HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 14-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16 | CD54HC4060F3A vs MC54HC4060AJ |
| M54HC4060F1R | STMicroelectronics | Check for Price | HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 14-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16 | CD54HC4060F3A vs M54HC4060F1R |
| CD54HC4060F | Harris Semiconductor | Check for Price | Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, CDIP16, | CD54HC4060F3A vs CD54HC4060F |
| CD74HC4060E | Texas Instruments | Check for Price | High Speed CMOS Logic 14-Stage Binary Counter with Oscillator 16-PDIP -55 to 125 | CD54HC4060F3A vs CD74HC4060E |
| CD54HC4060F3A | Harris Semiconductor | Check for Price | Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, CDIP16, | CD54HC4060F3A vs CD54HC4060F3A |
| 5962-8768001EX | Harris Semiconductor | Check for Price | Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, CDIP16, FRIT SEALED, CERDIP-16 | CD54HC4060F3A vs 5962-8768001EX |
CD54HC4060F3A Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the CD54HC4060F3A is 2V to 6V.
-
To ensure proper power supply, connect VCC to a stable voltage source, and GND to a reliable ground. Decouple the power supply with a 0.1uF capacitor to reduce noise.
-
The CD54HC4060F3A can handle clock frequencies up to 25MHz.
-
The CD54HC4060F3A has an asynchronous reset input (MR). To reset the device, pull the MR pin low for at least 2 clock cycles.
-
The propagation delay of the CD54HC4060F3A is typically around 10ns to 20ns, depending on the operating voltage and temperature.
