CD74HC154M96 Information
CD74HC154M96 by Texas Instruments is a Decoder/Driver.
Decoder/Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74HC154M96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 6 | 54 |
|
$0.6094 / $0.9375 | Buy Now |
|
|
Bristol Electronics | 3 |
|
RFQ | ||
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Chip Stock | HighSpeedCMOSLogic4-to-16LineDecoder/Demultiplexer24-SOIC-55to125 | 3260 |
|
RFQ | |
|
|
Win Source Electronics | IC 4-TO-16 DECODER/DEMUX 24SOIC | 1760 |
|
$0.5005 / $0.7507 | Buy Now |
US Tariff Estimator: CD74HC154M96 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CD74HC154M96
CD74HC154M96 CAD Models
-

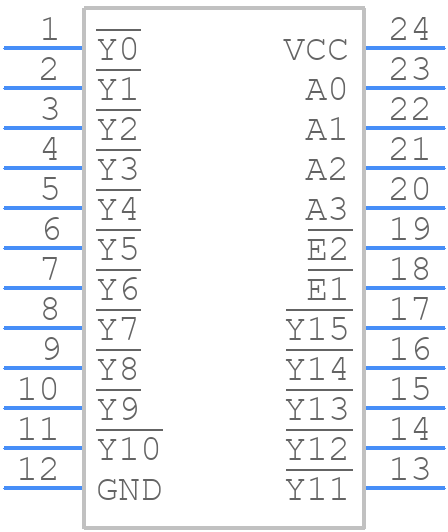

Part Symbol
-
