CGA4J2X8R1H104K125AA by: TDK Corporation

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X8R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT

Part Details for CGA4J2X8R1H104K125AA by TDK Corporation

Results Overview of CGA4J2X8R1H104K125AA by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Industrial Automation Healthcare Renewable Energy Robotics and Drones

CGA4J2X8R1H104K125AA Information

CGA4J2X8R1H104K125AA by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CGA4J2X8R1H104K125AA

Part # Distributor Description Stock Price Buy
DISTI # 52W9751
Newark Cap, 0.1Uf, 50V, Mlcc, 0805, Capacitance:0.1Μf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X8R, Product Range:Cga Series, Product Length:2.01Mm Rohs Compliant: Yes |Tdk CGA4J2X8R1H104K125AA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 43488
  • 1 $0.1620
  • 10 $0.0700
  • 25 $0.0650
  • 50 $0.0600
  • 100 $0.0550
  • 250 $0.0440
$0.0440 / $0.1620 Buy Now
DISTI # 40Y2283
Newark Cap, 0.1Uf, 50V, Mlcc, 0805, Capacitance:0.1Μf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X8R, Product Range:Cga Series, Product Length:2.01Mm Rohs Compliant: Yes |Tdk CGA4J2X8R1H104K125AA RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 30000
  • 2,000 $0.0310
  • 4,000 $0.0300
  • 8,000 $0.0300
  • 12,000 $0.0300
$0.0300 / $0.0310 Buy Now
DISTI # 40Y2283
Avnet Americas - Tape and Reel (Alt: 40Y2283) COO: Japan RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Container: Reel 2000 Partner Stock
  • 1 $0.0310
  • 4,000 $0.0300
  • 8,000 $0.0260
  • 12,000 $0.0250
$0.0250 / $0.0310 Buy Now
DISTI # CGA4J2X8R1H104K125AA
Avnet Americas - Tape and Reel (Alt: CGA4J2X8R1H104K125AA) COO: Japan RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.0229
  • 4,000 $0.0221
  • 8,000 $0.0213
  • 16,000 $0.0207
  • 32,000 $0.0200
$0.0200 / $0.0229 Buy Now
DISTI # CGA4J2X8R1H104KAA
TME Capacitor: ceramic, MLCC, 100nF, 50V, X8R, ±10%, SMD, 0805, 178mm Min Qty: 1 549
  • 1 $0.1500
  • 10 $0.0820
  • 50 $0.0552
  • 100 $0.0477
  • 500 $0.0356
  • 1,000 $0.0321
  • 2,000 $0.0294
  • 4,000 $0.0273
  • 10,000 $0.0251
  • 50,000 $0.0226
$0.0226 / $0.1500 Buy Now
DISTI # CGA4J2X8R1H104K125AA
Avnet Abacus - Tape and Reel (Alt: CGA4J2X8R1H104K125AA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel Abacus - 4000
Buy Now
DISTI # CGA4J2X8R1H104K125AA
Maritex Multilayer Ceramic Capacitors MLCC – SMD/SMT, TDK, CGA4J2X8R1H104K125AA, 100 nF, 0805, 50 V, 50 V Min Qty: 1 Package Multiple: 1 10000
  • 1 $0.0500
$0.0500 Buy Now

US Tariff Estimator: CGA4J2X8R1H104K125AA by TDK Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CGA4J2X8R1H104K125AA
TDK Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CGA4J2X8R1H104K125AA

CGA4J2X8R1H104K125AA CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

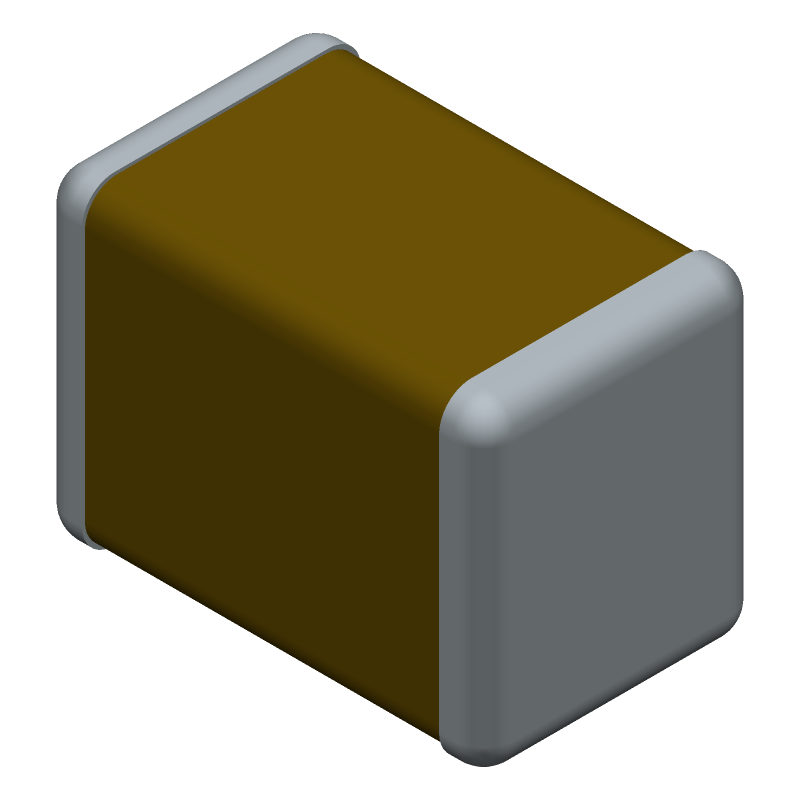

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CGA4J2X8R1H104K125AA Part Data Attributes

Parametric Data
CGA4J2X8R1H104K125AA TDK Corporation
Buy Now Datasheet
Compare Parts:
CGA4J2X8R1H104K125AA TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X8R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer TDK
Capacitance 0.1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 1.25 mm
JESD-609 Code e3
Length 2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PUNCHED PAPER, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Reference Standard AEC-Q200
Size Code 0805
Surface Mount YES
Temperature Characteristics Code X8R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 1.25 mm

Alternate Parts for CGA4J2X8R1H104K125AA

This table gives cross-reference parts and alternative options found for CGA4J2X8R1H104K125AA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CGA4J2X8R1H104K125AA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AC0805KKX8R9BB104 YAGEO Corporation $0.0518 Ceramic Capacitor, Ceramic, CGA4J2X8R1H104K125AA vs AC0805KKX8R9BB104
C2012X8R1H104K125AE TDK Corporation $0.0564 CAP CER 0.1UF 50V X8R 0805 CGA4J2X8R1H104K125AA vs C2012X8R1H104K125AE
GCM21BR91H104KA37K Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X8R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT CGA4J2X8R1H104K125AA vs GCM21BR91H104KA37K
GCG21BR91H104KA03K Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X8R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP CGA4J2X8R1H104K125AA vs GCG21BR91H104KA03K
C2012X8R1H104KT TDK Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X8R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP, ROHS AND REACH COMPLIANT CGA4J2X8R1H104K125AA vs C2012X8R1H104KT
0805P104K500NT Fenghua (HK) Electronics Ltd Check for Price Ceramic Capacitor, Ceramic, CGA4J2X8R1H104K125AA vs 0805P104K500NT
CGA4J2X8R1H104K125AE TDK Corporation Check for Price CAP CER 0.1UF 50V X8R 0805 CGA4J2X8R1H104K125AA vs CGA4J2X8R1H104K125AE
CGA4J2X8R1H104K125AD TDK Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X8R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT CGA4J2X8R1H104K125AA vs CGA4J2X8R1H104K125AD
AC0805KFX8R9BB104 YAGEO Corporation Check for Price Ceramic Capacitor, Ceramic, CGA4J2X8R1H104K125AA vs AC0805KFX8R9BB104
C2012X8R1H104KB TDK Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X8R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT CGA4J2X8R1H104K125AA vs C2012X8R1H104KB
equivalents icon

CGA4J2X8R1H104K125AA Related Parts

CGA4J2X8R1H104K125AA Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the CGA4J2X8R1H104K125AA is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the CGA4J2X8R1H104K125AA is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.

  • The maximum operating temperature for the CGA4J2X8R1H104K125AA is 125°C.

  • Yes, the CGA4J2X8R1H104K125AA is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.

  • The ESR of the CGA4J2X8R1H104K125AA is 0.015 ohms at 100 kHz.
