CGA4J3X7R1H225M125AB by: TDK Corporation

Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 2.2uF, 0805

Part Details for CGA4J3X7R1H225M125AB by TDK Corporation

Results Overview of CGA4J3X7R1H225M125AB by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Industrial Automation Healthcare Renewable Energy Robotics and Drones

CGA4J3X7R1H225M125AB Information

CGA4J3X7R1H225M125AB by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CGA4J3X7R1H225M125AB

Part # Distributor Description Stock Price Buy
DISTI # 71AH2833
Newark Cap, Aec-Q200, 2.2Uf, 50V, Mlcc, 0805 Rohs Compliant: Yes |Tdk CGA4J3X7R1H225M125AB RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 4130
  • 1 $0.4610
  • 10 $0.2210
  • 25 $0.2110
  • 50 $0.2010
  • 100 $0.1910
  • 250 $0.1720
  • 1,000 $0.1530
  • 2,500 $0.1420
$0.1420 / $0.4610 Buy Now
DISTI # CGA4J3X7R1H225M125AB
Avnet Americas Multilayer Ceramic Capacitor, 2.2 uF, 50 V, ? 20%, X7R, 0805 [2012 Metric] - Tape and Reel (Alt: CGA4J3X7R1H225M125AB) COO: Japan RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 24 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.1001
  • 4,000 $0.0966
  • 8,000 $0.0933
  • 12,000 $0.0903
  • 16,000 $0.0875
$0.0875 / $0.1001 Buy Now
DISTI # CGA4J3X7R1H225MAB
TME Capacitor: ceramic, MLCC, 2.2uF, 50V, X7R, ±20%, SMD, 0805, 178mm Min Qty: 2000 0
  • 2,000 $0.1210
  • 4,000 $0.1130
  • 6,000 $0.1080
  • 8,000 $0.1060
  • 10,000 $0.1030
  • 12,000 $0.1010
  • 20,000 $0.0980
  • 24,000 $0.0970
$0.0970 / $0.1210 RFQ
DISTI # CGA4J3X7R1H225M125AB
Avnet Abacus Multilayer Ceramic Capacitor 22 uF 50 V 20 X7R 0805 2012 Metric (Alt: CGA4J3X7R1H225M125AB) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Abacus - 0
Buy Now

US Tariff Estimator: CGA4J3X7R1H225M125AB by TDK Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CGA4J3X7R1H225M125AB
TDK Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CGA4J3X7R1H225M125AB

CGA4J3X7R1H225M125AB CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

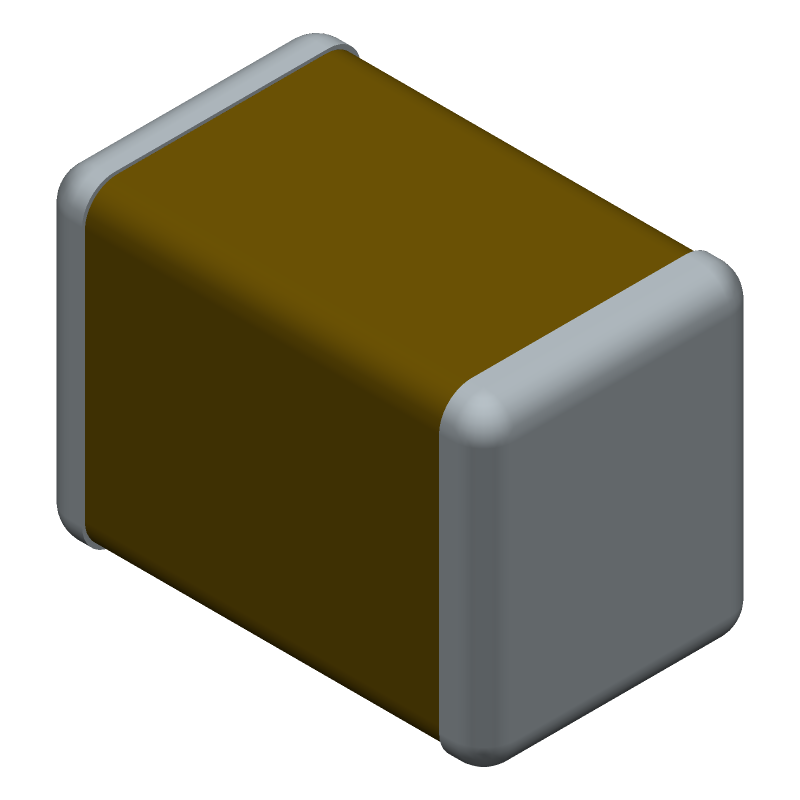

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CGA4J3X7R1H225M125AB Part Data Attributes

Parametric Data
CGA4J3X7R1H225M125AB TDK Corporation
Buy Now Datasheet
Compare Parts:
CGA4J3X7R1H225M125AB TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 2.2uF, 0805
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 24 Weeks
Capacitance 2.2 µF
Capacitor Type Ceramic Capacitor
Dielectric Material Ceramic
Height 1.25 Mm
JESD-609 Code e3
Length 2 Mm
Mounting Feature Surface Mount
Multilayer Yes
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, 7 Inch
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 50 V
Reference Standard Aec-Q200
Size Code 0805
Surface Mount Yes
Temperature Characteristics Code X7R
Temperature Coefficient 15% Ppm/°C
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Width 1.25 Mm

Alternate Parts for CGA4J3X7R1H225M125AB

This table gives cross-reference parts and alternative options found for CGA4J3X7R1H225M125AB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CGA4J3X7R1H225M125AB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0805H0500225MXT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 2.2uF, Surface Mount, 0805, CHIP CGA4J3X7R1H225M125AB vs 0805H0500225MXT
C0805X225M5RACAUTO7210 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 2.2uF, Surface Mount, 0805, CHIP CGA4J3X7R1H225M125AB vs C0805X225M5RACAUTO7210
C0805C225M5RACAUTO7411 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 2.2uF, Surface Mount, 0805, CHIP CGA4J3X7R1H225M125AB vs C0805C225M5RACAUTO7411
0805F0500225MXR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 2.2uF, Surface Mount, 0805, CHIP CGA4J3X7R1H225M125AB vs 0805F0500225MXR
C0805X225M050T Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 2.2uF, 0805, CGA4J3X7R1H225M125AB vs C0805X225M050T
0805F0500225MXT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 2.2uF, Surface Mount, 0805, CHIP CGA4J3X7R1H225M125AB vs 0805F0500225MXT
SCM21B225MBNK Surge Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 2.2uF, 0805, CGA4J3X7R1H225M125AB vs SCM21B225MBNK
0805Y0500225MXB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 2.2uF, Surface Mount, 0805, CHIP CGA4J3X7R1H225M125AB vs 0805Y0500225MXB
08052R225M9BP0D YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 2.2uF, 0805, CGA4J3X7R1H225M125AB vs 08052R225M9BP0D
C2012X7R1H225MT TDK Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% -Tol, X7R, 15% TC, 2.2uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT CGA4J3X7R1H225M125AB vs C2012X7R1H225MT
equivalents icon

CGA4J3X7R1H225M125AB Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the CGA4J3X7R1H225M125AB capacitor is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the CGA4J3X7R1H225M125AB capacitor is designed to withstand high vibrations and is suitable for use in applications where vibration is a concern.

  • The CGA4J3X7R1H225M125AB capacitor is rated for operation up to 125°C, but it's not recommended to use it above 105°C for extended periods to ensure reliability and longevity.

  • The ESR of the CGA4J3X7R1H225M125AB capacitor is approximately 0.015 ohms at 100 kHz.

  • Yes, the CGA4J3X7R1H225M125AB capacitor is compliant with the RoHS and REACH directives, making it suitable for use in environmentally friendly designs.
