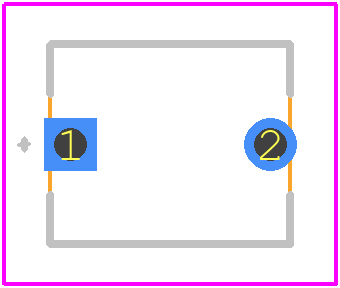

Footprint
-

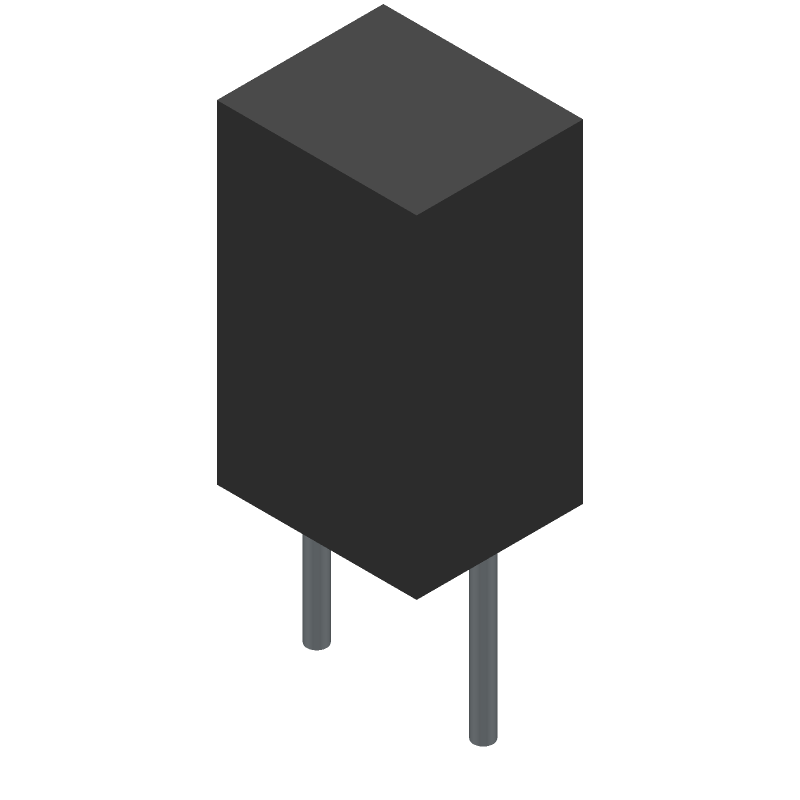

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CK45-B3AD102KYVNA by TDK Corporation
Results Overview of CK45-B3AD102KYVNA by TDK Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Aerospace and Defense
Transportation and Logistics
Automotive
CK45-B3AD102KYVNA Information
CK45-B3AD102KYVNA by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CK45-B3AD102KYVNA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71AH3002
|
Newark | Capacitor, Ceramic Disc, 1000Pf, 1Kv/Rad Rohs Compliant: Yes |Tdk CK45-B3AD102KYVNA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2 |
|
$0.0960 / $0.3240 | Buy Now |
|
DISTI #
CK45-B3AD102KYVNA
|
Avnet Americas | - Ammo Pack (Alt: CK45-B3AD102KYVNA) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.0549 / $0.0628 | Buy Now |
|
DISTI #
71AH3002
|
Avnet Americas | - Bulk (Alt: 71AH3002) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0930 / $0.2540 | Buy Now |
|
DISTI #
CK45-B3AD102KYVNA
|
TME | Capacitor: ceramic, 1000pF, 1kV, ±10%, THT, 5mm, Body dim: Ø6x5mm Min Qty: 1000 | 0 |
|
$0.0610 / $0.0691 | RFQ |
|
DISTI #
CK45-B3AD102KYVNA
|
Avnet Abacus | (Alt: CK45-B3AD102KYVNA) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
CK45-B3AD102KYVNA
|
Chip One Stop | Passives RoHS: Compliant Min Qty: 10 Lead time: 0 Weeks, 1 Days | 14540 |
|
$0.0489 / $0.0801 | Buy Now |
Part Details for CK45-B3AD102KYVNA
CK45-B3AD102KYVNA CAD Models
CK45-B3AD102KYVNA Part Data Attributes
|
|
CK45-B3AD102KYVNA
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CK45-B3AD102KYVNA
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, B, 10% TC, 0.001uF, Through Hole Mount, 2420, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Radial Leaded | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 10 Weeks | |
| Capacitance | 0.001 µF | |
| Capacitor Type | Ceramic Capacitor | |
| Diameter | 6 Mm | |
| Dielectric Material | Ceramic | |
| Length | 6 Mm | |
| Mounting Feature | Through Hole Mount | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Shape | Disk Package | |
| Package Style | Radial | |
| Packing Method | Ammo Pack | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 1000 V | |
| Surface Mount | No | |
| Temperature Characteristics Code | B | |
| Temperature Coefficient | 10% Ppm/°C | |
| Terminal Pitch | 5 Mm | |
| Terminal Shape | Wire | |
| Width | 5 Mm |
CK45-B3AD102KYVNA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
-
Yes, the CK45-B3AD102KYVNA is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
-
The CK45-B3AD102KYVNA is designed to reduce high-frequency noise and has a self-resonant frequency of 100 MHz, making it suitable for high-frequency applications.
-
Yes, the CK45-B3AD102KYVNA capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
-
The maximum operating temperature for CK45-B3AD102KYVNA is 125°C, with a derating of capacitance above 85°C.
