Capacitors / Fixed Capacitors / CL05B104KP5NNNC
Datasheets
packagee

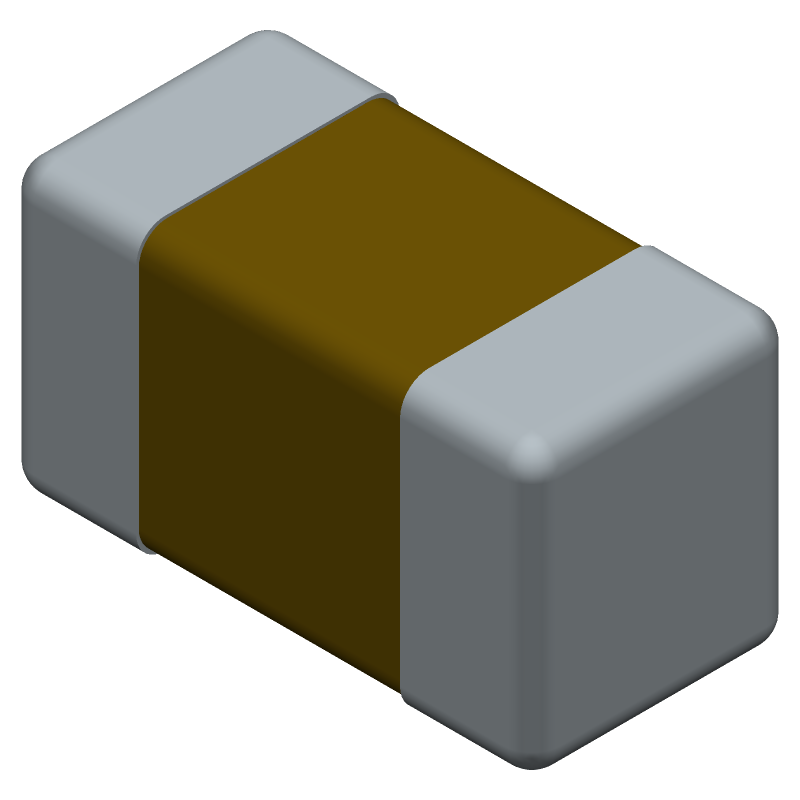

CL05B104KP5NNNC by:
Samsung Electro-Mechanics

Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 10V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel

Part Details for CL05B104KP5NNNC by Samsung Electro-Mechanics

Results Overview of CL05B104KP5NNNC by Samsung Electro-Mechanics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CL05B104KP5NNNC Information

CL05B104KP5NNNC by Samsung Electro-Mechanics is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CL05B104KP5NNNC

Part # Distributor Description Stock Price Buy
DISTI # 26AM9986
Newark Cap, 0.1Uf, 10V, Mlcc, 0402, Capacitance:0.1Μf, Voltage Rating:10V, Ceramic Capacitor Case:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cl Series, Operating Temperature Min:-55°C, Rohs Compliant: Yes |Samsung Electro-Mechanics CL05B104KP5NNNC RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel 40000
  • 10,000 $0.0030
  • 20,000 $0.0020
$0.0020 / $0.0030 Buy Now
DISTI # 82AC9219
Newark Cap, 0.1Uf, 10V, Mlcc, 0402, Capacitance:0.1Μf, Voltage(Dc):10V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cl Series, Product Length:1.02Mm, Qualification:-Rohs Compliant: Yes |Samsung Electro-Mechanics CL05B104KP5NNNC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2860
  • 1 $0.1000
  • 25 $0.0230
  • 100 $0.0120
  • 250 $0.0110
  • 500 $0.0090
  • 1,000 $0.0070
  • 2,500 $0.0060
  • 5,000 $0.0050
$0.0050 / $0.1000 Buy Now
DISTI # 82AC9220
Newark Cap, 0.1Uf, 10V, Mlcc, 0402, Capacitance:0.1Μf, Voltage(Dc):10V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cl Series, Product Length:1.02Mm, Qualification:-Rohs Compliant: Yes |Samsung Electro-Mechanics CL05B104KP5NNNC RoHS: Compliant Min Qty: 300000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 10,000 $0.0030
$0.0030 Buy Now
DISTI # CL05B104KP5NNNC
Avnet Americas SMD Multilayer Ceramic Capacitor, 0.1 ?F, 10 V, 0402 [1005 Metric], ? 10%, X7R - Tape and Reel (Alt: CL05B104KP5NNNC) COO: China RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel 370000
  • 10,000 $0.0014
  • 20,000 $0.0014
  • 40,000 $0.0014
  • 80,000 $0.0014
  • 160,000 $0.0014
$0.0014 / $0.0014 Buy Now
DISTI # KKK21411
Rutronik KC 100nF 0402 10% 10V X7R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Container: Reel Stock DE - 26040000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 10,000 $0.0013
  • 30,000 $0.0012
  • 50,000 $0.0012
  • 100,000 $0.0012
  • 400,000 $0.0012
$0.0012 / $0.0013 Buy Now
Chip 1 Exchange INSTOCK 228044
RFQ
DISTI # CL05B104KP5NNNC
Avnet Asia SMD Multilayer Ceramic Capacitor, 0.1 ?F, 10 V, 0402 [1005 Metric], ? 10%, X7R (Alt: CL05B104KP5NNNC) RoHS: Compliant Min Qty: 100000 Package Multiple: 10000 Lead time: 16 Weeks, 0 Days 0
RFQ
Chip Stock 10V100nFX7R±10%0402MultilayerCeramicCapacitorsMLCC-SMD/SMTROHS 75000
RFQ
LCSC 10V 100nF X7R 10% 0402 Ceramic Capacitors RoHS 180500
  • 100 $0.0019
  • 1,000 $0.0015
  • 3,000 $0.0013
  • 10,000 $0.0013
  • 50,000 $0.0011
$0.0011 / $0.0019 Buy Now

US Tariff Estimator: CL05B104KP5NNNC by Samsung Electro-Mechanics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CL05B104KP5NNNC
Samsung Electro-Mechanics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CL05B104KP5NNNC

CL05B104KP5NNNC CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CL05B104KP5NNNC Part Data Attributes

Parametric Data
CL05B104KP5NNNC Samsung Electro-Mechanics
Buy Now Datasheet
Compare Parts:
CL05B104KP5NNNC Samsung Electro-Mechanics Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 10V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMSUNG ELECTRO-MECHANICS
Part Package Code 0402
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 20 Weeks
Samacsys Manufacturer SAMSUNG
Capacitance 0.1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, CARDBOARD, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 10 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for CL05B104KP5NNNC

This table gives cross-reference parts and alternative options found for CL05B104KP5NNNC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CL05B104KP5NNNC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MC0402B104K100CT SPC Multicomp $0.0029 Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP CL05B104KP5NNNC vs MC0402B104K100CT
CL05B104KPNC Samsung Semiconductor Check for Price CAP,CERAMIC,100NF,10VDC,10% -TOL,10% +TOL,X7R TC CODE,-15,15% TC,0402 CASE CL05B104KP5NNNC vs CL05B104KPNC
C0402T104K8RBLTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP CL05B104KP5NNNC vs C0402T104K8RBLTU
0402B104K100C Fenghua (HK) Electronics Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP CL05B104KP5NNNC vs 0402B104K100C
0402C104KZPB Mijo Technology Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, CL05B104KP5NNNC vs 0402C104KZPB
223824755649 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP, LEAD FREE CL05B104KP5NNNC vs 223824755649
C0402T104K8RBCTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT CL05B104KP5NNNC vs C0402T104K8RBCTU
0402C104KZPT1.5 Mijo Technology Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, CL05B104KP5NNNC vs 0402C104KZPT1.5
CL05B104KP5SNNC Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, CL05B104KP5NNNC vs CL05B104KP5SNNC
AGC0402X7R100-104KNP VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP CL05B104KP5NNNC vs AGC0402X7R100-104KNP
equivalents icon

CL05B104KP5NNNC Related Parts

CL05B104KP5NNNC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the CL05B104KP5NNNC capacitor is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • Yes, the CL05B104KP5NNNC capacitor is designed to withstand vibrations up to 10G acceleration, making it suitable for use in high-vibration environments.

  • The ESR of the CL05B104KP5NNNC capacitor is typically around 50 mΩ at 100 kHz, but this value can vary depending on the frequency and operating conditions.

  • Yes, the CL05B104KP5NNNC capacitor is designed to operate in humid environments, with a moisture sensitivity level (MSL) of 3, which means it can withstand humidity levels up to 60% RH at 40°C.

  • The recommended storage condition for the CL05B104KP5NNNC capacitor is in a dry, cool place with a temperature range of -20°C to 40°C and humidity below 60% RH.
