Resistors / Fixed Resistors / CRCW040212R0FKED
Datasheets
CRCW040212R0FKED by:
Vishay Intertechnologies

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for CRCW040212R0FKED by Vishay Intertechnologies

Results Overview of CRCW040212R0FKED by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

CRCW040212R0FKED Information

CRCW040212R0FKED by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW040212R0FKED

Part # Distributor Description Stock Price Buy
DISTI # 27W3866
Newark Surface Mount Thick Film Resistor, Aec-Q200 Crcw Series, 12 Ohm, 63 Mw, - 1%, 50 V Rohs Compliant: Yes |Vishay CRCW040212R0FKED RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 404
  • 10 $0.0240
  • 25 $0.0210
  • 50 $0.0180
  • 100 $0.0150
  • 250 $0.0130
  • 500 $0.0120
  • 1,000 $0.0100
$0.0100 / $0.0240 Buy Now
DISTI # 89M6604
Newark Res, Thick Film, 12R, 1%, 0.063W, 0402, Resistance:12Ohm, Resistance Tolerance:± 1%, Power Rating:62.5Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:50V Rohs Compliant: Yes |Vishay CRCW040212R0FKED RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 500 $0.0120
$0.0120 Buy Now
DISTI # 43C3531
Newark Res, Thick Film, 12R, 1%, 0.063W, 0402, Reel, Resistance:12Ohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW040212R0FKED RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 20,000 $0.0110
$0.0110 Buy Now
DISTI # CRCW040212R0FKED
Avnet Americas - Tape and Reel (Alt: CRCW040212R0FKED) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 11 Weeks, 0 Days Container: Reel 180000
  • 10,000 $0.0023
  • 20,000 $0.0022
  • 40,000 $0.0022
  • 80,000 $0.0021
  • 160,000 $0.0019
$0.0019 / $0.0023 Buy Now
Bristol Electronics   9950
RFQ
DISTI # CRCW040212R0FKED-0
TME Resistor: thick film Min Qty: 10000 60000
  • 10,000 $0.0013
$0.0013 Buy Now
DISTI # CRCW040212R0FKED
IBS Electronics RES THICK FILM 0402 12 OHM 1% 0.063W(1/16W) &#xB1, 100PPM/C PAD SMD AUTOMOTIVE T/R Min Qty: 10000 Package Multiple: 1 50000
  • 10,000 $0.0014
  • 50,000 $0.0013
  • 250,000 $0.0013
  • 500,000 $0.0013
  • 1,500,000 $0.0012
$0.0012 / $0.0014 Buy Now
DISTI # CRCW040212R0FKED
Avnet Abacus (Alt: CRCW040212R0FKED) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # CRCW040212R0FKED
Avnet Asia (Alt: CRCW040212R0FKED) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 13 Weeks, 0 Days 0
RFQ
Component Electronics, Inc RES SMT 12R 1% 0402 TAPE 100
  • 1 $0.0800
  • 100 $0.0600
  • 1,000 $0.0500
$0.0500 / $0.0800 Buy Now
LCSC 12 62.5mW 50V 100ppm/ Thick Film Resistor 1% 0402 Chip Resistor - Surface Mount RoHS 2800
  • 100 $0.0078
  • 1,000 $0.0063
  • 3,000 $0.0054
  • 10,000 $0.0049
  • 50,000 $0.0045
  • 100,000 $0.0042
$0.0042 / $0.0078 Buy Now

US Tariff Estimator: CRCW040212R0FKED by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CRCW040212R0FKED
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CRCW040212R0FKED

CRCW040212R0FKED CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

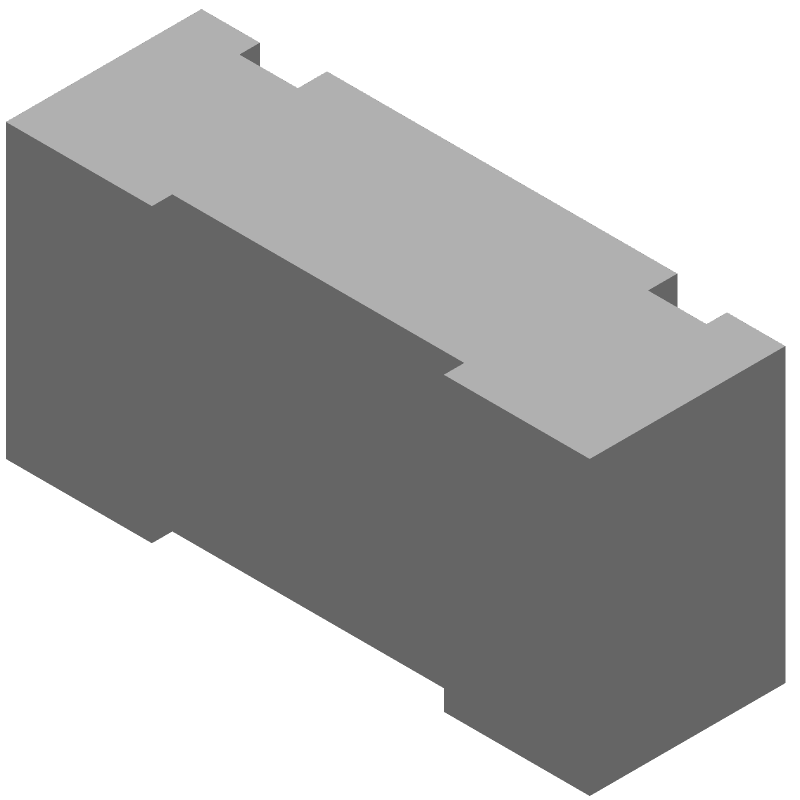

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRCW040212R0FKED Part Data Attributes

Parametric Data
CRCW040212R0FKED Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW040212R0FKED Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.063W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Additional Feature Laser Trimmable, Rated Ac Voltage (V): 50
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.35 Mm
Package Length 1 Mm
Package Style Smt
Package Width 0.5 Mm
Packing Method Tr, Paper, 7 Inch
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Reference Standard Aec-Q200
Resistance 12 Ω
Resistor Type Fixed Resistor
Size Code 0402
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 100 Ppm/°C
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 50 V

Alternate Parts for CRCW040212R0FKED

This table gives cross-reference parts and alternative options found for CRCW040212R0FKED. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRCW040212R0FKED, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RMEA0402FT12R0-HP SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040212R0FKED vs RMEA0402FT12R0-HP
WR04X12R0FGLJ Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040212R0FKED vs WR04X12R0FGLJ
CR0402-10W-12R0FPT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 12ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, CRCW040212R0FKED vs CR0402-10W-12R0FPT-13
AS02FTE0120A Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040212R0FKED vs AS02FTE0120A
TSR16UF120V Tateyama Kagaku Group Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040212R0FKED vs TSR16UF120V
CRCW040210012R1%RF4 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CRCW040212R0FKED vs CRCW040210012R1%RF4
WR04X12R0FTL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, LEAD FREE CRCW040212R0FKED vs WR04X12R0FTL
CR-02FP6---12RAC Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040212R0FKED vs CR-02FP6---12RAC
CAR04F12R0CT-H Cal-Chip Electronics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040212R0FKED vs CAR04F12R0CT-H
WR04X12R0FGL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 12ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040212R0FKED vs WR04X12R0FGL
equivalents icon

CRCW040212R0FKED Related Parts

CRCW040212R0FKED Frequently Asked Questions (FAQ)

  • The thermal resistance of the CRCW040212R0FKED is 350°C/W, which is relatively low, making it suitable for high-power applications.

  • Yes, the CRCW040212R0FKED is designed to be moisture-resistant and can operate in humid environments, making it suitable for use in industrial and automotive applications.

  • The maximum operating voltage of the CRCW040212R0FKED is 200V, making it suitable for use in a wide range of applications, including power supplies and industrial control systems.

  • Yes, the CRCW040212R0FKED is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.

  • The power rating of the CRCW040212R0FKED is 0.125W, making it suitable for use in low-power applications such as signal processing and voltage regulation.
