Resistors / Fixed Resistors / CRCW040215K4FKED
Datasheets
CRCW040215K4FKED by:
Vishay Intertechnologies

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 15400ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for CRCW040215K4FKED by Vishay Intertechnologies

Results Overview of CRCW040215K4FKED by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

CRCW040215K4FKED Information

CRCW040215K4FKED by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW040215K4FKED

Part # Distributor Description Stock Price Buy
DISTI # 52K6710
Newark Res, Thick Film, 15K4, 1%, 0.063W, 0402, Resistance:15.4Kohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW040215K4FKED RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1216
  • 1 $0.1000
  • 25 $0.0180
  • 100 $0.0150
  • 250 $0.0140
  • 500 $0.0120
$0.0120 / $0.1000 Buy Now
DISTI # 52K6711
Newark Res, Thick Film, 15K4, 1%, 0.063W, 0402, Reel, Resistance:15.4Kohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW040215K4FKED RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 20,000 $0.0110
$0.0110 Buy Now
DISTI # CRCW040215K4FKED
Avnet Americas - Tape and Reel (Alt: CRCW040215K4FKED) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 11 Weeks, 0 Days Container: Reel 190000
  • 10,000 $0.0023
  • 20,000 $0.0022
  • 40,000 $0.0022
  • 60,000 $0.0021
  • 80,000 $0.0010
$0.0010 / $0.0023 Buy Now
DISTI # 52K6710
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 52K6710) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 1356 Partner Stock
  • 1 $0.0120
$0.0120 Buy Now
Bristol Electronics   41761
RFQ
DISTI # CRCW040215K4FKED
TME Resistor: thick film, SMD, 0402, 15.4kΩ, 100mW, ±1%, 75V, -55÷155°C Min Qty: 10000 0
  • 10,000 $0.0018
$0.0018 RFQ
DISTI # CRCW040215K4FKED
Avnet Abacus (Alt: CRCW040215K4FKED) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days Abacus - 200000
Buy Now
Component Electronics, Inc RES SMT 15.4K 1% 0402 T/R 18100
  • 1 $0.0800
  • 100 $0.0600
  • 1,000 $0.0500
$0.0500 / $0.0800 Buy Now
LCSC 62.5mW 15.4k 50V 100ppm/ Thick Film Resistor 1% 0402 Chip Resistor - Surface Mount RoHS 1550
  • 50 $0.0064
  • 500 $0.0063
  • 1,500 $0.0062
  • 5,000 $0.0061
$0.0061 / $0.0064 Buy Now

US Tariff Estimator: CRCW040215K4FKED by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CRCW040215K4FKED
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CRCW040215K4FKED

CRCW040215K4FKED CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

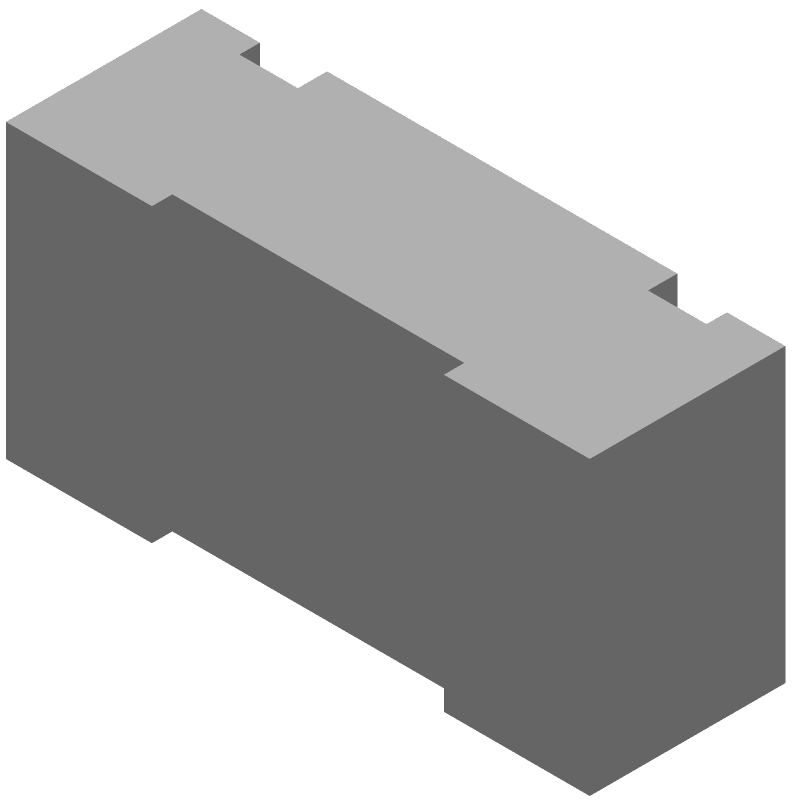

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRCW040215K4FKED Part Data Attributes

Parametric Data
CRCW040215K4FKED Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW040215K4FKED Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.063W, 15400ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer Vishay
Additional Feature LASER TRIMMABLE, RATED AC VOLTAGE (V): 50
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.35 mm
Package Length 1 mm
Package Style SMT
Package Width 0.5 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 15400 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 50 V

Alternate Parts for CRCW040215K4FKED

This table gives cross-reference parts and alternative options found for CRCW040215K4FKED. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRCW040215K4FKED, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0402WGF1542TAE Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 15400ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, CRCW040215K4FKED vs 0402WGF1542TAE
MC0402-1542-FT101W RCD Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 15400ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT CRCW040215K4FKED vs MC0402-1542-FT101W
MC0402-1542-FBQ RCD Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 15400ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040215K4FKED vs MC0402-1542-FBQ
CR0402-16W-1542FT VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 15400ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040215K4FKED vs CR0402-16W-1542FT
RMC10K1542FTH Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 15400ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040215K4FKED vs RMC10K1542FTH
TSR16GTF1542V Tateyama Kagaku Group Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 15400ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, CRCW040215K4FKED vs TSR16GTF1542V
CR0402-16W-1542FT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 15400ohm, 50V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0402, CHIP CRCW040215K4FKED vs CR0402-16W-1542FT-13
WR04X1542FGR Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 15400ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, CRCW040215K4FKED vs WR04X1542FGR
CAS04F1542CT Cal-Chip Electronics Check for Price Fixed Resistor, 0.0625W, 15400ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040215K4FKED vs CAS04F1542CT
MC0402-1542-FBW RCD Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 15400ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CRCW040215K4FKED vs MC0402-1542-FBW
equivalents icon

CRCW040215K4FKED Related Parts

CRCW040215K4FKED Frequently Asked Questions (FAQ)

  • The thermal resistance of the CRCW040215K4FKED is 350°C/W, which is typical for a 0402 package size.

  • Yes, the CRCW040215K4FKED is suitable for high-frequency applications due to its low inductance and high-frequency stability.

  • The MSL of the CRCW040215K4FKED is 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements.

  • Yes, the CRCW040215K4FKED is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications.

  • The recommended soldering temperature for the CRCW040215K4FKED is 260°C for 10 seconds, with a peak temperature of 280°C.
