Resistors / Metal Glaze/Thick Film Resistors / CRCW0603470RFKEAHP
Datasheets
CRCW0603470RFKEAHP by:
Vishay Intertechnologies

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for CRCW0603470RFKEAHP by Vishay Intertechnologies

Results Overview of CRCW0603470RFKEAHP by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

CRCW0603470RFKEAHP Information

CRCW0603470RFKEAHP by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW0603470RFKEAHP

Part # Distributor Description Stock Price Buy
DISTI # 41R4681
Newark Surface Mount Chip Resistor, Thick Film, Aec-Q200 Crcw Series, 470 Ohm, 250 Mw, 1%, 75 V Rohs Compliant: Yes |Vishay CRCW0603470RFKEAHP RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 20350
  • 10 $0.0510
  • 25 $0.0470
  • 50 $0.0440
  • 100 $0.0400
  • 250 $0.0360
  • 500 $0.0320
  • 1,000 $0.0250
$0.0250 / $0.0510 Buy Now
DISTI # 24T7178
Newark Res, 470R, 1%, 0.33W, 0603, Thick Film, Resistance:470Ohm, Resistance Tolerance:± 1%, Power Rating:333.3Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:Pulse Proof, High Power Rohs Compliant: Yes |Vishay CRCW0603470RFKEAHP RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 5000
  • 5,000 $0.0130
  • 10,000 $0.0130
$0.0130 Buy Now
DISTI # 65AC3404
Newark Res, 470R, 1%, 0.33W, 0603, Thick Film, Resistance:470Ohm, Resistance Tolerance:± 1%, Power Rating:333.3Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:Pulse Proof, High Power Rohs Compliant: Yes |Vishay CRCW0603470RFKEAHP RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 2,500 $0.0230
$0.0230 Buy Now
DISTI # 24T7178
Avnet Americas - Tape and Reel (Alt: 24T7178) COO: Israel RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel 5000 Partner Stock
  • 1 $0.0170
  • 10,000 $0.0160
  • 30,000 $0.0150
$0.0150 / $0.0170 Buy Now
DISTI # CRCW0603470RFKEAHP
Avnet Americas - Tape and Reel (Alt: CRCW0603470RFKEAHP) COO: Israel RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0167
  • 20,000 $0.0149
  • 50,000 $0.0146
  • 100,000 $0.0145
  • 200,000 $0.0144
$0.0144 / $0.0167 Buy Now
DISTI # CRCW0603470RFKEAHP
IBS Electronics SMD CHIP RESISTOR 470 OHM &#xBD, 1% 330 MW 0603 [1608 METRIC] THICK FILM HIGH POWER PULSE PROOF Min Qty: 5000 Package Multiple: 1 20000
  • 5,000 $0.0224
  • 15,000 $0.0218
  • 25,000 $0.0217
  • 50,000 $0.0213
  • 100,000 $0.0209
$0.0209 / $0.0224 Buy Now
DISTI # CRCW0603470RFKEAHP
Avnet Abacus (Alt: CRCW0603470RFKEAHP) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now
Chip Stock ResThickFilm0603470Ohm1%1/3W±100ppm/°CMoldedSMDSMDPaperT/R 33500
RFQ

US Tariff Estimator: CRCW0603470RFKEAHP by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CRCW0603470RFKEAHP
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CRCW0603470RFKEAHP

CRCW0603470RFKEAHP CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

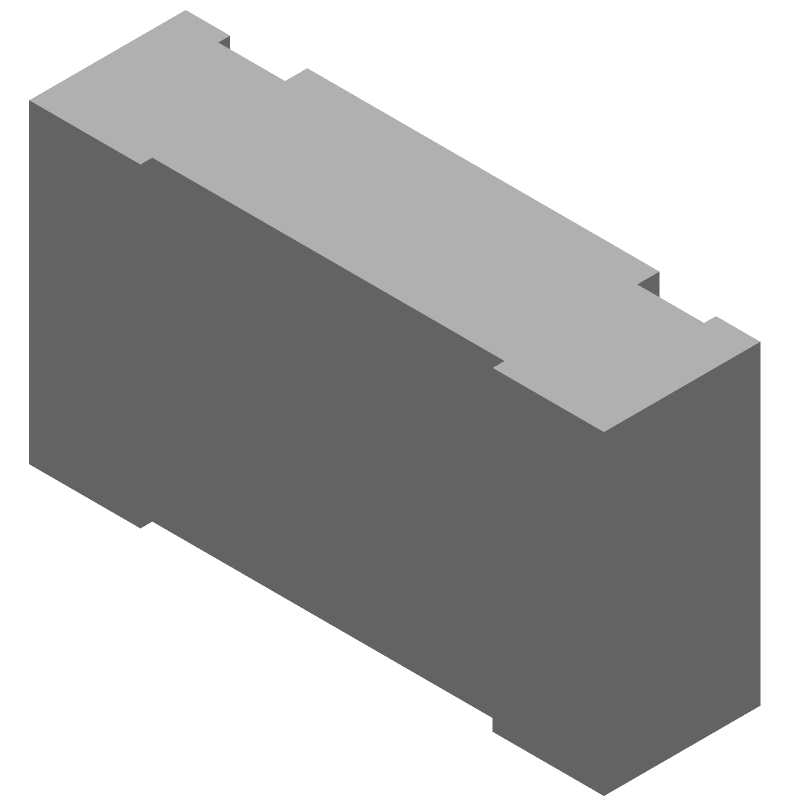

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRCW0603470RFKEAHP Part Data Attributes

Parametric Data
CRCW0603470RFKEAHP Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW0603470RFKEAHP Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.25W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 12 Weeks
Additional Feature Rated Ac Voltage(V): 75
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 Mm
Package Length 1.6 Mm
Package Shape Rectangular Package
Package Style Smt
Package Width 0.85 Mm
Packing Method Tr, Paper, 7 Inch
Rated Power Dissipation (P) 0.33 W
Rated Temperature 70 °C
Reference Standard Aec-Q200
Resistance 470 Ω
Resistor Type Fixed Resistor
Size Code 0603
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 100 Ppm/°C
Terminal Finish Matte Tin Over Nickel
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 75 V

Alternate Parts for CRCW0603470RFKEAHP

This table gives cross-reference parts and alternative options found for CRCW0603470RFKEAHP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRCW0603470RFKEAHP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NRCPA06HF471TR5QYF NIC Components Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs NRCPA06HF471TR5QYF
FPS03FVE4700NMB Prosperity Dielectrics Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.333W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs FPS03FVE4700NMB
HFPF03FVE4700NM Hitano Enterprise Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.33W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs HFPF03FVE4700NM
PWR03FTEV4700NA Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs PWR03FTEV4700NA
RCA0603470RFKEAHP Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs RCA0603470RFKEAHP
RCA0603470RFKEDHP Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.33W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs RCA0603470RFKEDHP
HPWR03FVEV4700A Hitano Enterprise Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs HPWR03FVEV4700A
HFPS03FVE4700NM Hitano Enterprise Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.33W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs HFPS03FVE4700NM
RCS0603470RFKED Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs RCS0603470RFKED
CR-03FC7--470R Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 470ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW0603470RFKEAHP vs CR-03FC7--470R
equivalents icon

CRCW0603470RFKEAHP Related Parts

CRCW0603470RFKEAHP Frequently Asked Questions (FAQ)

  • The thermal resistance of the CRCW0603470RFKEAHP is 350°C/W, which is relatively low, making it suitable for high-power applications.

  • Yes, the CRCW0603470RFKEAHP is designed to be resistant to moisture and humidity, with a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels without degradation.

  • Yes, the CRCW0603470RFKEAHP is suitable for high-frequency applications up to 1 GHz, due to its low inductance and capacitance values.

  • The recommended soldering temperature for the CRCW0603470RFKEAHP is between 260°C to 280°C, with a maximum exposure time of 10 seconds.

  • Yes, the CRCW0603470RFKEAHP is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
