Resistors / Fixed Resistors / CRCW06037M68FKEA
Datasheets
CRCW06037M68FKEA by:
Vishay Intertechnologies

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 7680000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for CRCW06037M68FKEA by Vishay Intertechnologies

Results Overview of CRCW06037M68FKEA by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

CRCW06037M68FKEA Information

CRCW06037M68FKEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW06037M68FKEA

Part # Distributor Description Stock Price Buy
DISTI # 27W4345
Newark Surface Mount Thick Film Resistor, Aec-Q200 Crcw Series, 7.68 Mohm, 100 Mw, - 1%, 75 V Rohs Compliant: Yes |Vishay CRCW06037M68FKEA RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1714
  • 10 $0.0180
  • 25 $0.0160
  • 50 $0.0130
  • 100 $0.0110
  • 250 $0.0110
  • 500 $0.0100
  • 1,000 $0.0100
$0.0100 / $0.0180 Buy Now
DISTI # 47P3628
Newark Res, Thick Film, 7M68, 1%, 0.1W, 0603, Reel, Resistance:7.68Mohm, Resistance Tolerance:± 1%, Power Rating:125Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Vishay CRCW06037M68FKEA RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 20,000 $0.0150
$0.0150 Buy Now
DISTI # CRCW06037M68FKEA
Avnet Americas - Tape and Reel (Alt: CRCW06037M68FKEA) COO: Israel RoHS: Compliant Min Qty: 20000 Package Multiple: 5000 Lead time: 11 Weeks, 0 Days Container: Reel 0
  • 20,000 $0.0039
  • 30,000 $0.0039
  • 50,000 $0.0039
  • 100,000 $0.0039
  • 200,000 $0.0038
$0.0038 / $0.0039 Buy Now
DISTI # CRCW06037M68FKEA
Avnet Abacus (Alt: CRCW06037M68FKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now

US Tariff Estimator: CRCW06037M68FKEA by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CRCW06037M68FKEA
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CRCW06037M68FKEA

CRCW06037M68FKEA CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

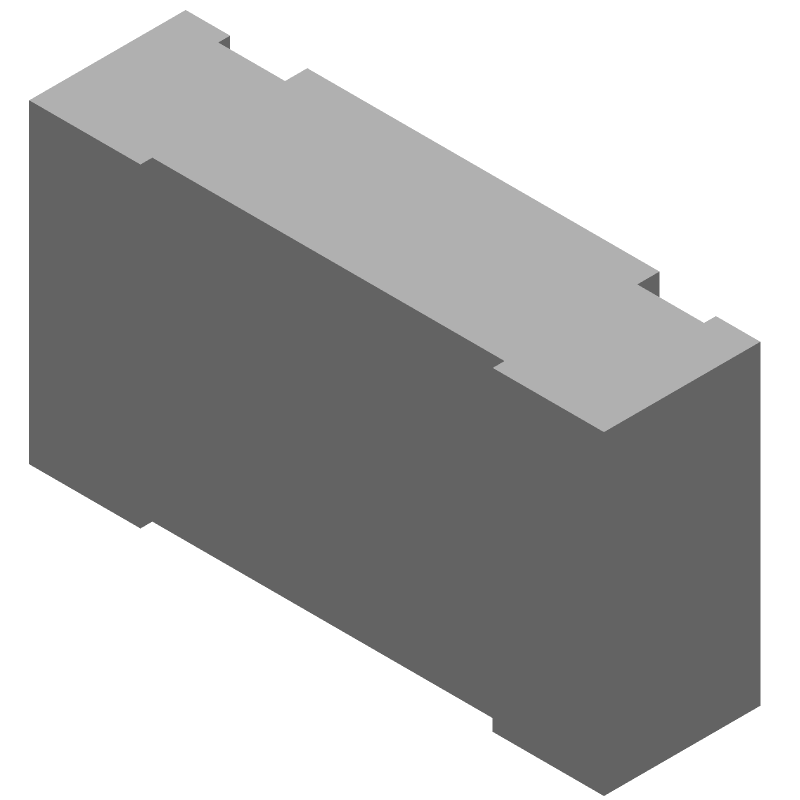

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRCW06037M68FKEA Part Data Attributes

Parametric Data
CRCW06037M68FKEA Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW06037M68FKEA Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.1W, 7680000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 11 Weeks
Samacsys Manufacturer Vishay
Additional Feature LASER TRIMMABLE, RATED AC VOLTAGE (V): 75
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.55 mm
Package Style SMT
Package Width 0.85 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 7680000 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 75 V

Alternate Parts for CRCW06037M68FKEA

This table gives cross-reference parts and alternative options found for CRCW06037M68FKEA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRCW06037M68FKEA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AR16-7684-FK ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 7.68e+06ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW06037M68FKEA vs AR16-7684-FK
AC0603FR-077M68L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 7680000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW06037M68FKEA vs AC0603FR-077M68L
RAT037684FH4 Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 7.68e+06ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW06037M68FKEA vs RAT037684FH4
ADF06037M681%100PPM/KKP Microtech GmbH Electronic Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 7680000ohm, 75V, 1% +/-Tol, -100,100ppm/Cel, 0603, CRCW06037M68FKEA vs ADF06037M681%100PPM/KKP
WR06W7684FBL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 7680000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT CRCW06037M68FKEA vs WR06W7684FBL
SR06W7684FGLA Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 7.68e+06ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW06037M68FKEA vs SR06W7684FGLA
VRNSIL-7684-F Cyntec Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 7680000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW06037M68FKEA vs VRNSIL-7684-F
NS03WGF7684T5E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 7680000ohm, 75V, 1% +/-Tol, -100,100ppm/Cel, 0603, CRCW06037M68FKEA vs NS03WGF7684T5E
SR06W7684FTLA Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 7.68e+06ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP CRCW06037M68FKEA vs SR06W7684FTLA
CR0603-16W-7684FT-13 VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 7680000ohm, 50V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT CRCW06037M68FKEA vs CR0603-16W-7684FT-13
equivalents icon

CRCW06037M68FKEA Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the CRCW06037M68FKEA is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.

  • Yes, the CRCW06037M68FKEA is suitable for high-frequency applications up to 1 GHz due to its thin-film construction and low inductance.

  • The CRCW06037M68FKEA has a maximum operating temperature of 155°C (311°F), but it can be used in high-temperature environments up to 200°C (392°F) with derating. Consult the datasheet for derating curves.

  • Yes, the CRCW06037M68FKEA is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other environmentally conscious applications.

  • The CRCW06037M68FKEA has an MSL rating of 1, which means it can withstand normal humidity levels and does not require special handling or storage.
