Resistors / Fixed Resistors / CRCW251222K0JNEG
Datasheets
CRCW251222K0JNEG by:
Vishay Intertechnologies

Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for CRCW251222K0JNEG by Vishay Intertechnologies

Results Overview of CRCW251222K0JNEG by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Energy and Power Systems Medical Imaging Entertainment and Gaming Robotics and Drones

CRCW251222K0JNEG Information

CRCW251222K0JNEG by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW251222K0JNEG

Part # Distributor Description Stock Price Buy
DISTI # 89M6940
Newark Res, Thick Film, 22K, 5%, 1W, 2512, Resistance:22Kohm, Resistance Tolerance:± 5%, Power Rating:1W, Resistor Case/Package:2512 [6432 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:500V Rohs Compliant: Yes |Vishay CRCW251222K0JNEG RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1,000 $0.0580
$0.0580 Buy Now
DISTI # 43C6058
Newark Res, Aec-Q200, Thick Film, 22K, 1W, 2512, Resistance:22Kohm, Resistance Tolerance:± 5%, Power Rating:1W, Resistor Case/Package:2512 [6432 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:500V Rohs Compliant: Yes |Vishay CRCW251222K0JNEG RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.0510
  • 4,000 $0.0480
  • 8,000 $0.0450
  • 12,000 $0.0420
$0.0420 / $0.0510 Buy Now
DISTI # CRCW251222K0JNEG
Avnet Americas - Tape and Reel (Alt: CRCW251222K0JNEG) COO: Israel RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel 4000
  • 2,000 $0.0368
  • 4,000 $0.0353
  • 8,000 $0.0343
  • 16,000 $0.0330
  • 32,000 $0.0310
$0.0310 / $0.0368 Buy Now
DISTI # CRCW251222K0JNEG
TME Resistor: thick film, SMD, 2512, 22kΩ, 1W, ±5%, 500V, -55÷155°C Min Qty: 6000 0
  • 6,000 $0.0536
$0.0536 RFQ
DISTI # CRCW251222K0JNEG
IBS Electronics CRCW SERIES 2512 1 W 22 KOHM &#xB1, 5 % &#xB1, 200 PPM/K SMT THICK FILM CHIP RESISTOR Min Qty: 2000 Package Multiple: 1 10000
  • 2,000 $0.0496
  • 6,000 $0.0483
  • 10,000 $0.0477
  • 20,000 $0.0469
  • 40,000 $0.0458
$0.0458 / $0.0496 Buy Now
DISTI # CRCW251222K0JNEG
Avnet Abacus (Alt: CRCW251222K0JNEG) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now
Component Electronics, Inc RES SMT 22K 5% 2512 T/R 4300
  • 1 $0.3100
  • 100 $0.2300
  • 1,000 $0.2000
$0.2000 / $0.3100 Buy Now

US Tariff Estimator: CRCW251222K0JNEG by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CRCW251222K0JNEG
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CRCW251222K0JNEG

CRCW251222K0JNEG CAD Models

  • Part Symbol

    schematic symbol

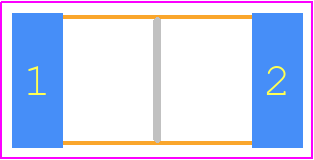

  • Footprint

    pcb footprint

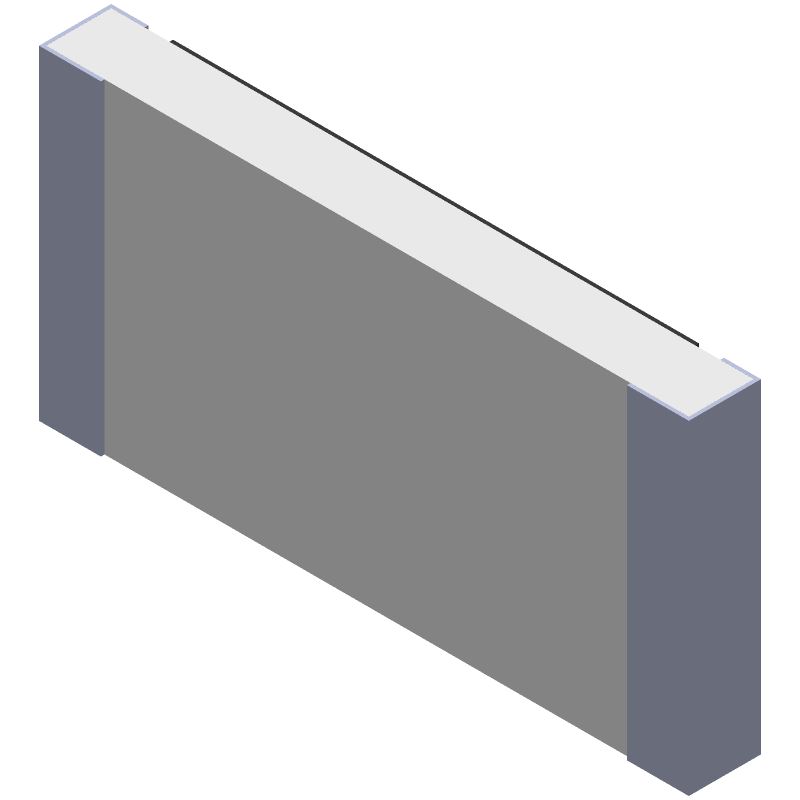

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRCW251222K0JNEG Part Data Attributes

Parametric Data
CRCW251222K0JNEG Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW251222K0JNEG Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Additional Feature Laser Trimmable, Rated Ac Voltage (V): 500
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.6 Mm
Package Length 6.3 Mm
Package Style Smt
Package Width 3.15 Mm
Packing Method Tr, Blister, 7 Inch
Rated Power Dissipation (P) 1 W
Rated Temperature 70 °C
Reference Standard Aec-Q200
Resistance 22000 Ω
Resistor Type Fixed Resistor
Size Code 2512
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 200 Ppm/°C
Terminal Finish Matte Tin Over Nickel
Terminal Shape Wraparound
Tolerance 5%
Working Voltage 500 V

Alternate Parts for CRCW251222K0JNEG

This table gives cross-reference parts and alternative options found for CRCW251222K0JNEG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRCW251222K0JNEG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CRCW251222K0JNTHBC Vishay Intertechnologies $0.0505 Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, -200,200ppm/Cel, 2512, CRCW251222K0JNEG vs CRCW251222K0JNTHBC
RCA251222K0JNEH Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP CRCW251222K0JNEG vs RCA251222K0JNEH
CRCW251220022K5%R82 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP CRCW251222K0JNEG vs CRCW251220022K5%R82
RCA251222K5%200E67E3 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, -200,200ppm/Cel, 2512, CRCW251222K0JNEG vs RCA251222K5%200E67E3
RCA251222K0JNEGIF Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP CRCW251222K0JNEG vs RCA251222K0JNEGIF
RCA251222K5%200E82E3 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CRCW251222K0JNEG vs RCA251222K5%200E82E3
CRCW251222K0JNTH Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, HALOGEN FREE CRCW251222K0JNEG vs CRCW251222K0JNTH
CRCW251220022K5%E82E3 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP CRCW251222K0JNEG vs CRCW251220022K5%E82E3
CRCW251222K0JNEHIF Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP CRCW251222K0JNEG vs CRCW251222K0JNEHIF
RCA25122202JNEH Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 1W, 22000ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP CRCW251222K0JNEG vs RCA25122202JNEH
equivalents icon

CRCW251222K0JNEG Related Parts

CRCW251222K0JNEG Frequently Asked Questions (FAQ)

  • The thermal resistance of the CRCW251222K0JNEG is 350°C/W, which is relatively low, making it suitable for high-power applications.

  • Yes, the CRCW251222K0JNEG is resistant to sulfurization, which means it can withstand the corrosive effects of sulfur compounds in the atmosphere.

  • The recommended soldering temperature for the CRCW251222K0JNEG is between 260°C to 280°C, with a maximum exposure time of 10 seconds.

  • Yes, the CRCW251222K0JNEG is suitable for high-frequency applications up to 1 GHz, making it a good choice for RF and microwave circuits.

  • Yes, the CRCW251222K0JNEG is compatible with lead-free soldering processes, making it a good choice for environmentally friendly designs.
