Resistors / Metal Glaze/Thick Film Resistors / CRGP1206F10K
Datasheets
CRGP1206F10K by: TE Connectivity

Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206

Part Details for CRGP1206F10K by TE Connectivity

Results Overview of CRGP1206F10K by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

CRGP1206F10K Information

CRGP1206F10K by TE Connectivity is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRGP1206F10K

Part # Distributor Description Stock Price Buy
DISTI # 73AC3884
Newark Res, 10K, 1%, 0.5W, 1206, Thick Film, Resistance:10Kohm, Resistance Tolerance:± 1%, Power Rating:500Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:Pulse Withstanding, Voltage Rating:200Vrohs Compliant: Yes |Te Connectivity CRGP1206F10K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3488
  • 1 $0.0250
  • 25 $0.0250
  • 100 $0.0250
  • 250 $0.0250
  • 500 $0.0250
  • 1,000 $0.0250
  • 2,500 $0.0250
  • 5,000 $0.0250
$0.0250 Buy Now
DISTI # 73AC3885
Newark Res, 10K, 1%, 0.5W, 1206, Thick Film, Resistance:10Kohm, Resistance Tolerance:± 1%, Power Rating:500Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:Pulse Withstanding, Voltage Rating:200Vrohs Compliant: Yes |Te Connectivity CRGP1206F10K RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 20,000 $0.0460
  • 40,000 $0.0440
  • 60,000 $0.0430
  • 100,000 $0.0420
$0.0420 / $0.0460 Buy Now
DISTI # 73AC3884
Avnet Americas SMD Chip Resistor, 10 kOhm, ? 1%, 500 mW, 1206 [3216 Metric], Thick Film, Pulse Withstanding - Product that comes on tape, but is not reeled (Alt: 73AC3884) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 3508 Partner Stock
  • 1 $0.2500
  • 25 $0.0900
  • 100 $0.0590
  • 250 $0.0540
  • 500 $0.0530
$0.0530 / $0.2500 Buy Now
DISTI # 3-2176328-7
Avnet Americas SMD Chip Resistor, 10 kOhm, ? 1%, 500 mW, 1206 [3216 Metric], Thick Film, Pulse Withstanding - Tape and Reel (Alt: 3-2176328-7) COO: Thailand RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 14 Weeks, 3 Days Container: Reel 0
  • 20,000 $0.0376
  • 200,000 $0.0350
  • 400,000 $0.0348
  • 1,000,000 $0.0346
  • 2,000,000 $0.0344
$0.0344 / $0.0376 Buy Now
TE Connectivity CRGP 1206 10K 1% Resistance Value: 10K Ω Element Type: Thick Film Resistor Type: General Purpose Resistor Passive Component Tolerance: 1 % Package Size Code: 1206 Surface Mount Resistor | 10K Ω Thick Film General Purpose Resistor 1 % | Part Number: CRGP1206F10K | Internal Number: 3-2176328-7 | TE Connectivity RoHS: Compliant Min Qty: 1 21373
  • 1 $0.1000
  • 10 $0.1000
  • 25 $0.1000
  • 50 $0.0900
  • 100 $0.0900
  • 250 $0.0900
  • 500 $0.0900
  • 1,000 $0.0900
  • 2,500 $0.0900
  • 5,000 $0.0800
  • 10,000 $0.0800
$0.0800 / $0.1000 Buy Now
DISTI # CRGP1206F10K
TME Resistor: thick film, SMD, 1206, 10kΩ, 500mW, ±1%, CRGP Min Qty: 5000 0
  • 5,000 $0.0367
$0.0367 RFQ
DISTI # 3-2176328-7
Avnet Abacus SMD Chip Resistor 10 kOhm 1 500 mW 1206 3216 Metric Thick Film Pulse Withstanding (Alt: 3-2176328-7) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 18 Weeks, 0 Days Abacus - 0
Buy Now
LCSC 500mW 10k 200V 100ppm/ Thick Film Resistor 1% 1206 Chip Resistor - Surface Mount RoHS 5
  • 5 $0.1620
$0.1620 Buy Now

US Tariff Estimator: CRGP1206F10K by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CRGP1206F10K
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CRGP1206F10K

CRGP1206F10K CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

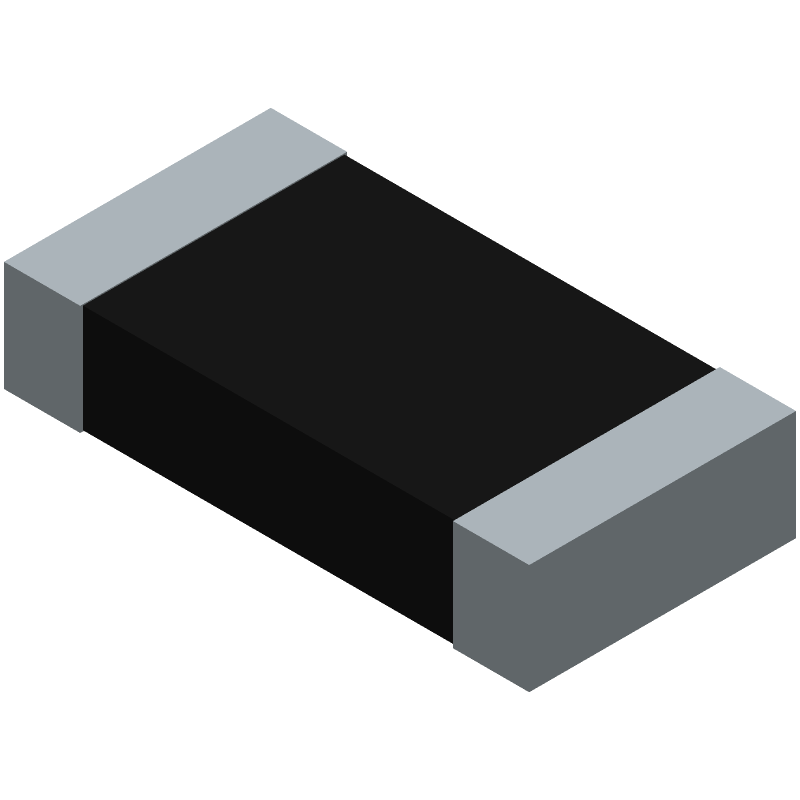

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRGP1206F10K Part Data Attributes

Parametric Data
CRGP1206F10K TE Connectivity
Buy Now Datasheet
Compare Parts:
CRGP1206F10K TE Connectivity Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer TE Connectivity
Construction Rectangular
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 3.1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.55 mm
Packing Method TR
Physical Dimension 3.1mm x 1.55mm x .55mm
Rated Power Dissipation (P) 0.5 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 10000 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 200 V

Alternate Parts for CRGP1206F10K

This table gives cross-reference parts and alternative options found for CRGP1206F10K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRGP1206F10K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCWF12P1002FTL SPC Multicomp $0.0181 Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGP1206F10K vs MCWF12P1002FTL
RAG06K103FT Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGP1206F10K vs RAG06K103FT
RMCA1206FT10K0-HP SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGP1206F10K vs RMCA1206FT10K0-HP
RAG06K103FCG Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGP1206F10K vs RAG06K103FCG
CAR12F1002CT-H Cal-Chip Electronics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGP1206F10K vs CAR12F1002CT-H
FPS06FW-1002-MD Prosperity Dielectrics Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGP1206F10K vs FPS06FW-1002-MD
RMCH32K103FB Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGP1206F10K vs RMCH32K103FB
CR-06FHA---10K Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGP1206F10K vs CR-06FHA---10K
FPS06FV-1002-M Prosperity Dielectrics Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 10000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGP1206F10K vs FPS06FV-1002-M
ST1206F10KP050.5W Ever Ohms Technology Co Ltd Check for Price Fixed Resistor, Ruthenium Oxide, 0.5W, 10000ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, CRGP1206F10K vs ST1206F10KP050.5W
equivalents icon

CRGP1206F10K Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for CRGP1206F10K is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, CRGP1206F10K is compatible with lead-free soldering and is RoHS compliant.

  • The maximum operating voltage for CRGP1206F10K is 50V.

  • Yes, CRGP1206F10K is suitable for high-frequency applications up to 1 GHz due to its low inductance and high self-resonant frequency.

  • Yes, CRGP1206F10K is available in tape and reel packaging for automated assembly.
