CS4344-CZZR by Cirrus Logic is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for CS4344-CZZR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
New Advantage Corporation | TSSOP 10/C/10-PIN, 192KHZ STEREO D/A CONVERTER RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 806 |
|
$1.6500 | Buy Now |
|
|
Win Source Electronics | IC DAC 24BIT 192KHZ 10-TSSOP | 44720 |
|
$0.3258 / $0.4207 | Buy Now |
US Tariff Estimator: CS4344-CZZR by Cirrus Logic
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CS4344-CZZR
CS4344-CZZR CAD Models
-

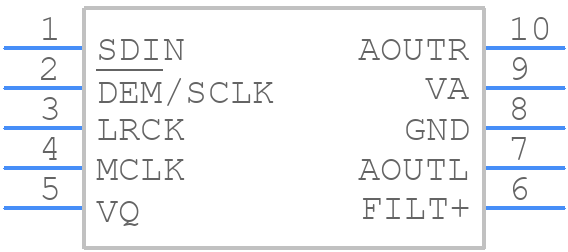

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CS4344-CZZR Part Data Attributes
|
|
CS4344-CZZR
Cirrus Logic
Buy Now
Datasheet
|
Compare Parts:
CS4344-CZZR
Cirrus Logic
D/A Converter, 1 Func, Serial Input Loading, PDSO10, 3 MM, MO-187, TSSOP-10
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | CIRRUS LOGIC INC | |
| Package Description | 3 MM, MO-187, TSSOP-10 | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Cirrus Logic | |
| Analog Output Voltage-Max | 2.429 V | |
| Analog Output Voltage-Min | -2.429 V | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | 2'S COMPLEMENT | |
| Input Format | SERIAL | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Width | 3 mm |
