D38999/20WD35SN by:
Amphenol Corporation

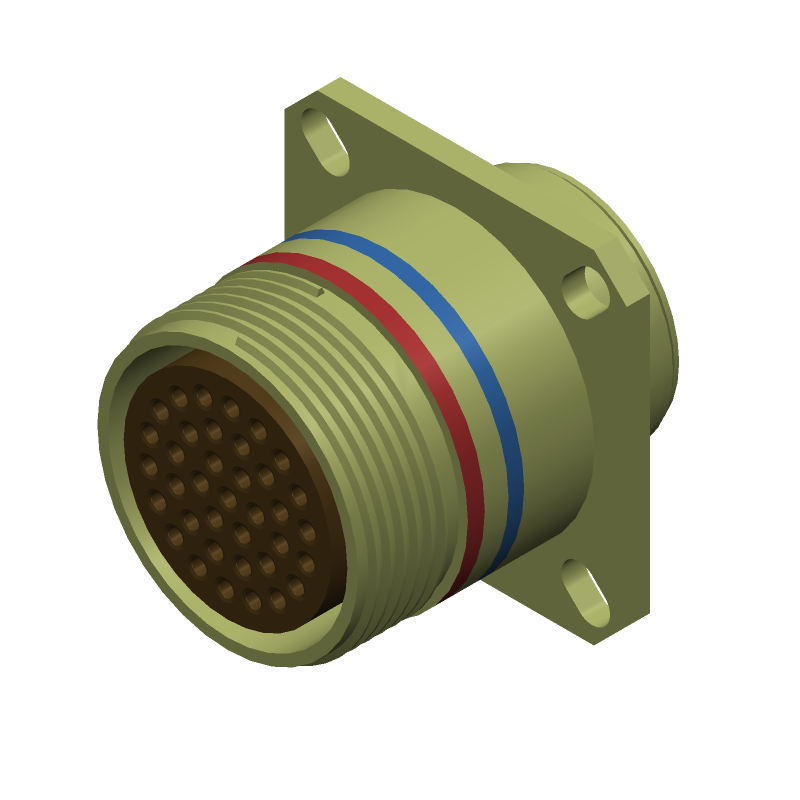

MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,

Part Details for D38999/20WD35SN by Amphenol Corporation

Results Overview of D38999/20WD35SN by Amphenol Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

D38999/20WD35SN Information

D38999/20WD35SN by Amphenol Corporation is a Military Circular Connector.
Military Circular Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for D38999/20WD35SN

Part # Distributor Description Stock Price Buy
DISTI # D38999/20WD35SN
Avnet Americas Circular Connector, MIL-DTL-38999 Series III, D38999/20 Series, Wall Mount Receptacle - Bulk (Alt: D38999/20WD35SN) COO: India RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 161
  • 1 $34.5700
  • 5 $31.9100
  • 10 $29.6300
  • 25 $27.6500
  • 50 $25.9300
  • 100 $24.4000
$24.4000 / $34.5700 Buy Now
DISTI # 38T1689
Avnet Americas Circular Connector, MIL-DTL-38999 Series III, D38999/20 Series, Wall Mount Receptacle - Bulk (Alt: 38T1689) COO: India RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 133 Partner Stock
  • 1 $47.1300
  • 5 $43.6000
  • 10 $41.6500
  • 25 $41.0400
  • 50 $40.4500
$40.4500 / $47.1300 Buy Now
DISTI # D3899920WD35SN
Avnet Abacus Circular Connector MILDTL38999 Series III D3899920 Series Wall Mount Receptacle (Alt: D3899920WD35SN) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks, 0 Days Abacus - 50
Buy Now
New Advantage Corporation BEND38999/20WD35SN RoHS: Compliant Min Qty: 1 Package Multiple: 1 40
  • 2 $150.9700
  • 40 $139.3600
$139.3600 / $150.9700 Buy Now

US Tariff Estimator: D38999/20WD35SN by Amphenol Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

D38999/20WD35SN
Amphenol Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for D38999/20WD35SN

D38999/20WD35SN Part Data Attributes

Parametric Data
D38999/20WD35SN Amphenol Corporation
Buy Now Datasheet
Compare Parts:
D38999/20WD35SN Amphenol Corporation MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,
Pbfree Code No
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL CORP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Amphenol
Additional Feature STANDARD: MIL-DTL-38999, EMI SHIELDED
Backshell Type SOLID
Body/Shell Style RECEPTACLE
Connector Type MIL SERIES CONNECTOR
Contact Finish Mating GOLD (50)
Contact Finish Termination Gold (Au)
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Quantities 37
Contact Sizes 22D
Coupling Type THREADED
DIN Conformance NO
Degrees of Rotation 95
Empty Shell NO
Environmental Characteristics CORROSION/ENVIRONMENT RESISTANT
Filter Feature NO
IEC Conformance NO
Insulator Material POLYETHYLENE
JESD-609 Code e4
MIL Conformance YES
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Type CABLE AND PANEL
Operating Temperature-Max 175 °C
Operating Temperature-Min -65 °C
Option GENERAL PURPOSE
Polarization N
Shell Finish CADMIUM
Shell Material ALUMINUM ALLOY
Shell Size D
Termination Type CRIMP
Total Number of Contacts 37
Unique Insert Number D35

Alternate Parts for D38999/20WD35SN

This table gives cross-reference parts and alternative options found for D38999/20WD35SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of D38999/20WD35SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
D38999/20GD35SN TE Connectivity $596.8230 MIL Series Connector D38999/20WD35SN vs D38999/20GD35SN
233-105-D0MT15-35SN Glenair Inc Check for Price MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle, ROHS COMPLIANT D38999/20WD35SN vs 233-105-D0MT15-35SN
D38999/20ZD35JN Corsair Electrical Connectors Inc Check for Price MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle, D38999/20WD35SN vs D38999/20ZD35JN
EN3645F0DN35FN Esterline Technologies Corporation Check for Price MIL Series Connector, D38999/20WD35SN vs EN3645F0DN35FN
ACT20MD35SN TE Connectivity Check for Price MIL Series Connector, 37 Contact(s), Composite, Female, Crimp Terminal, Receptacle D38999/20WD35SN vs ACT20MD35SN
D38999/20W15-35SN Smiths Group Check for Price MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle, D38999/20WD35SN vs D38999/20W15-35SN
D38999/20TD35SN Amphenol Corporation Check for Price MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle, D38999/20WD35SN vs D38999/20TD35SN
D38999/20WD35JN Corsair Electrical Connectors Inc Check for Price MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle, D38999/20WD35SN vs D38999/20WD35JN
EN3645W0DN35FN TE Connectivity Check for Price MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle D38999/20WD35SN vs EN3645W0DN35FN
EN3645F0DN35FN TE Connectivity Check for Price MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle D38999/20WD35SN vs EN3645F0DN35FN
Part Number Manufacturer Composite Price Description Compare
D38999/20SD35SN Eaton Corporation Check for Price MIL Series Connector, 37 Contact(s), Stainless Steel, Female, Crimp Terminal, Receptacle, D38999/20WD35SN vs D38999/20SD35SN
233-105-T0XW15-35SN Glenair Inc Check for Price MIL Series Connector, 37 Contact(s), Composite, Female, Crimp Terminal, Receptacle, D38999/20WD35SN vs 233-105-T0XW15-35SN
EN3645W0DN35FN Esterline Technologies Corporation Check for Price MIL Series Connector, D38999/20WD35SN vs EN3645W0DN35FN
D38999/20K-D-35SN HiRel Connectors Inc Check for Price MIL Series Connector, 37 Contact(s), Steel, Female, Crimp Terminal, Receptacle D38999/20WD35SN vs D38999/20K-D-35SN
CTVP00RW-15-35SN Amphenol Corporation Check for Price MIL Series Connector, 37 Contact(s), Female, Crimp Terminal, Receptacle D38999/20WD35SN vs CTVP00RW-15-35SN
233-105-D0XM15-35SN Glenair Inc Check for Price MIL Series Connector, 37 Contact(s), Composite, Female, Crimp Terminal, Receptacle D38999/20WD35SN vs 233-105-D0XM15-35SN
233-105-00XM15-35SN Glenair Inc Check for Price MIL Series Connector, 37 Contact(s), Composite, Female, Crimp Terminal, Receptacle D38999/20WD35SN vs 233-105-00XM15-35SN
CTVPS00RF-15-35SN Amphenol Corporation Check for Price MIL Series Connector, 37 Contact(s), Female, Crimp Terminal, Receptacle D38999/20WD35SN vs CTVPS00RF-15-35SN
233-105-T0M15-35SN Glenair Inc Check for Price MIL Series Connector, 37 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle D38999/20WD35SN vs 233-105-T0M15-35SN
233-105-T0ZL15-35SN Glenair Inc Check for Price MIL Series Connector, 37 Contact(s), Stainless Steel, Female, Crimp Terminal, Receptacle D38999/20WD35SN vs 233-105-T0ZL15-35SN
equivalents icon

D38999/20WD35SN Related Parts

D38999/20WD35SN Frequently Asked Questions (FAQ)

  • The operating temperature range of the D38999/20WD35SN connector is -65°C to 200°C.

  • Yes, the D38999/20WD35SN connector is designed to withstand high-vibration environments and is commonly used in aerospace and defense applications.

  • The mating cycle life of the D38999/20WD35SN connector is 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.

  • Yes, the D38999/20WD35SN connector is part of the D38999 series and is compatible with other connectors in the series, making it easy to integrate into existing systems.

  • The typical insertion force required for the D38999/20WD35SN connector is 10-15 pounds per contact, making it easy to mate and unmate.
