DAC900U/1K Information
DAC900U/1K by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DAC900U/1K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | D/A Converter, 1 Func, Parallel, Word Input Loading, 0.03us Settling Time, PDSO28 RoHS: Compliant Status: Active Min Qty: 1 | 19776 |
|
$6.1200 / $7.6500 | Buy Now |
|
|
LCSC | 70ns Parallel 2.7V5.5V 0.3LSB 10 SOIC-28-300mil Digital to Analog Converters (DAC) RoHS | 33 |
|
$12.4693 / $15.7397 | Buy Now |
US Tariff Estimator: DAC900U/1K by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DAC900U/1K
DAC900U/1K CAD Models
-

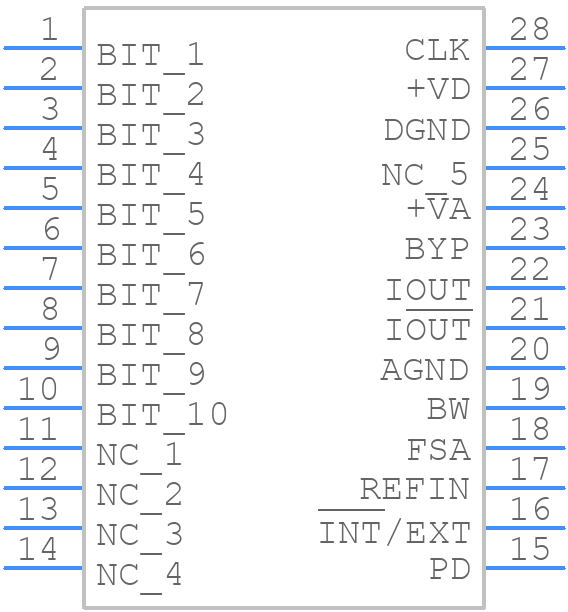

Part Symbol
-

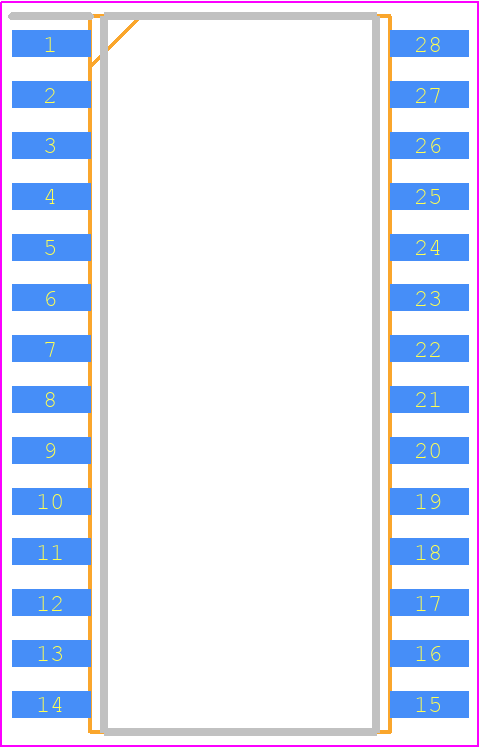

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DAC900U/1K Part Data Attributes
|
|
DAC900U/1K
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DAC900U/1K
Texas Instruments
10-Bit 165-MSPS Digital-to-Analog Converter (DAC) 28-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP28,.4 | |
| Pin Count | 28 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.40 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 1.25 V | |
| Analog Output Voltage-Min | -1 V | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | PARALLEL, WORD | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e4 | |
| Length | 17.9 mm | |
| Linearity Error-Max (EL) | 0.0977% | |
| Moisture Sensitivity Level | 2 | |
| Number of Bits | 10 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP28,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 200 MHz | |
| Seated Height-Max | 2.65 mm | |
| Settling Time-Nom (tstl) | 0.03 µs | |
| Supply Current-Max | 30 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
