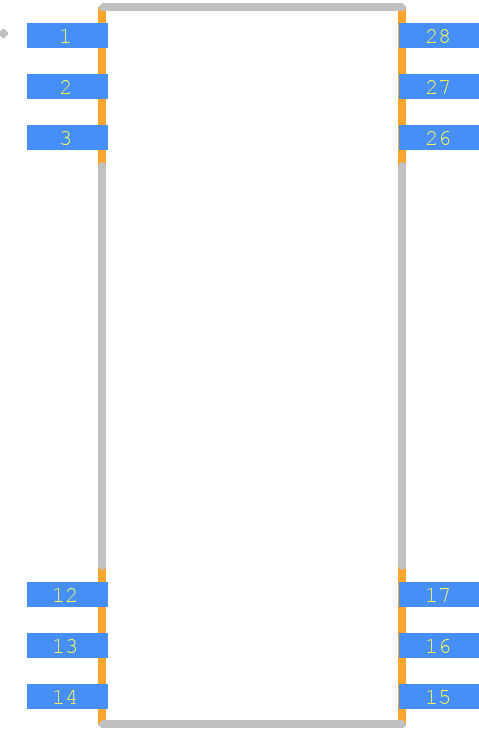

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DCP020515DU by Texas Instruments
Overview of DCP020515DU by Texas Instruments
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for DCP020515DU
| Distributor | Stock | Package | QTY Break / Prices |
|---|---|---|---|
|
|
0 Tube |
Tube |
|
|
|
0 | Bulk |
|
|
|
2 |
|
|
|
|
50 |
|
|
|
|
0 | Each |
|
|
|
0 | Each |
|
|
|
15933 |
|
Part Details for DCP020515DU
DCP020515DU CAD Models
DCP020515DU Part Data Attributes
|
|
DCP020515DU
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DCP020515DU
Texas Instruments
Miniature, 2W Isolated Unregulated DC/DC Converters 12-SOP -40 to 85
|
| Source Content uid | DCP020515DU | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | MODULE | |
| Package Description | SOP, SOP12/28,.4 | |
| Pin Count | 28/12 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Additional Feature | ADDITIONAL -15V OUTPUT ALSO AVAILABLE | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Approvals | UL | |
| Control Mode | VOLTAGE-MODE | |
| Efficiency (Main Output) | 85% | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G12 | |
| JESD-609 Code | e4 | |
| Length | 17.9 mm | |
| Load Regulation-Max | 20% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.066 A | |
| Output Voltage-Max | 15.75 V | |
| Output Voltage-Min | 14.25 V | |
| Output Voltage-Nom | 15 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP12/28,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Ripple Voltage (Main Out) | 0.007 Vrms | |
| Seated Height-Max | 2.65 mm | |
| Surface Mount | YES | |
| Switcher Configuration | PUSH-PULL | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Power Output-Max | 2 W | |
| Trim/Adjustable Output | NO | |
| Width | 7.5 mm |
Alternate Parts for DCP020515DU
This table gives cross-reference parts and alternative options found for DCP020515DU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DCP020515DU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| DCP020515DU Power Circuits | DC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, ROHS COMPLIANT, PLASTIC, SOP-28/12 | Burr-Brown Corp | DCP020515DU vs DCP020515DU |
| DCP020515DU/1K Power Circuits | DC-DC Unregulated Power Supply Module, 2 Output, BCDMOS, SOIC-28 | Burr-Brown Corp | DCP020515DU vs DCP020515DU/1K |
