Part Details for DDZ9696-7 by Diodes Incorporated
Results Overview of DDZ9696-7 by Diodes Incorporated
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
DDZ9696-7 Information
DDZ9696-7 by Diodes Incorporated is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DDZ9696-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK8227
|
Newark | Zener Diode, 9.1V, 0.5W, Sod-123 Rohs Compliant: Yes |Diodes Inc. DDZ9696-7 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2740 |
|
$0.0490 / $0.1500 | Buy Now |
|
DISTI #
DDZ9696-7
|
Avnet Americas | - Tape and Reel (Alt: DDZ9696-7) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 87000 Factory Stock |
|
$0.0269 / $0.0274 | Buy Now |
|
DISTI #
70551194
|
RS | LOW CURRENT ZENER DIODE SOD-123 Min Qty: 1000 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0660 / $0.1030 | RFQ |
|
DISTI #
DDZ9696-7
|
TME | Diode: Zener, 0.5W, 9.1V, SMD, reel,tape, SOD123, single diode Min Qty: 1 | 0 |
|
$0.0303 / $0.1500 | RFQ |
|
|
NexGen Digital | 1000 |
|
RFQ | ||
|
DISTI #
DDZ9696-7
|
Avnet Silica | (Alt: DDZ9696-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
LCSC | Independent 8.65V9.56V 500mW 9.1V SOD-123 Single Zener Diodes RoHS | 1920 |
|
$0.0182 / $0.0369 | Buy Now |
US Tariff Estimator: DDZ9696-7 by Diodes Incorporated
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DDZ9696-7
DDZ9696-7 CAD Models
-

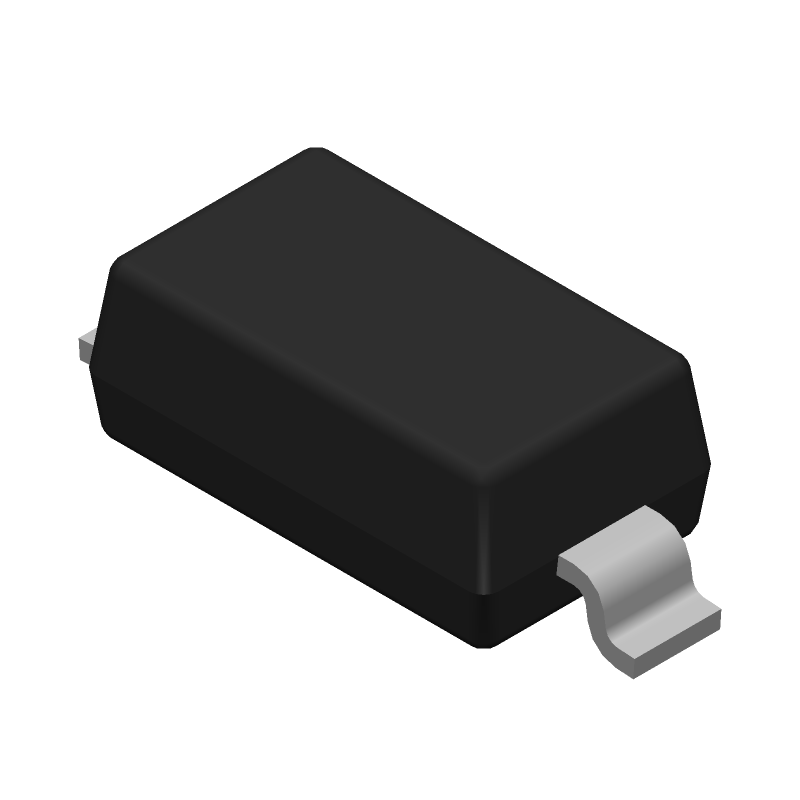

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DDZ9696-7 Part Data Attributes
|
|
DDZ9696-7
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
DDZ9696-7
Diodes Incorporated
Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Green, Plastic Package-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 12 Weeks | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Zener Diode | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | Unidirectional | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 9.1 V | |
| Surface Mount | Yes | |
| Technology | Zener | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 0.05 Ma |
Alternate Parts for DDZ9696-7
This table gives cross-reference parts and alternative options found for DDZ9696-7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DDZ9696-7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DDZ9696-13 | Diodes Incorporated | Check for Price | Zener Diode, 9.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2 | DDZ9696-7 vs DDZ9696-13 |
DDZ9696-7 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the DDZ9696-7 is 2.5V to 5.5V.
-
To ensure stability, it's recommended to use a minimum output capacitance of 1uF, and to keep the output capacitor close to the device.
-
The maximum input voltage that the DDZ9696-7 can handle is 6.5V.
-
The DDZ9696-7 is rated for operation up to 125°C, but it's recommended to derate the output current at higher temperatures to ensure reliability.
-
The power dissipation of the DDZ9696-7 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
