DF40HC(3.0)-80DS-0.4V(51) by: Hirose Electric Co Ltd

Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,

Part Details for DF40HC(3.0)-80DS-0.4V(51) by Hirose Electric Co Ltd

Results Overview of DF40HC(3.0)-80DS-0.4V(51) by Hirose Electric Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

DF40HC(3.0)-80DS-0.4V(51) Information

DF40HC(3.0)-80DS-0.4V(51) by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for DF40HC(3.0)-80DS-0.4V(51)

Part # Distributor Description Stock Price Buy
DISTI # 65AK9833
Newark 0.4Mm Pitch, 1.5-4.0Mm Height, Board To Board/Fpc To Board Connectors |Hirose/hrs DF40HC(3.0)-80DS-0.4V(51) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $2.1600
  • 15,000 $1.9400
$1.9400 / $2.1600 Buy Now
DISTI # DF40HC(3.0)-80DS-0.4V(51)
Avnet Americas Conn Board to Board RCP 80 POS 0.4mm Solder ST SMD Embossed T/R - Tape and Reel (Alt: DF40HC(3.0)-80DS-0.4V(51)) COO: Japan RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 3,000 $1.5429
$1.5429 Buy Now
DISTI # DF40HC3080DS04V51
TME Connector: PCB to PCB, socket, female, PIN: 80, DF40, vertical, SMT Min Qty: 3000 0
  • 3,000 $0.9400
$0.9400 RFQ
DISTI # 000000000004095695
Sager Board to Board & Mezzanine Connectors 80POS 0.4MM SMD GOLD CONN RCPT Min Qty: 3000 0
  • 3,000 $1.8000
  • 15,000 $1.6600
  • 30,000 $1.5400
  • 75,000 $1.4400
  • 150,000 $1.3500
$1.3500 / $1.8000 Buy Now
DISTI # CL0684-4180-9-51
Avnet Abacus Conn Board to Board RCP 80 POS 04mm Solder ST SMD Embossed TR (Alt: CL0684-4180-9-51) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # DF40HC(3.0)-80DS-0.4V(51)
Chip One Stop Interconnects RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 1083
  • 1 $2.1800
  • 10 $1.8500
  • 50 $1.6500
  • 100 $1.5400
  • 200 $1.4300
  • 500 $1.3800
  • 1,000 $1.3300
  • 2,000 $1.2200
  • 3,000 $1.1000
  • 6,000 $1.0700
$1.0700 / $2.1800 Buy Now
LCSC SMDP0.4mm Arrays Edge Type Mezzanine (Board to Board) RoHS 2992
  • 1 $1.3300
  • 10 $1.1042
  • 30 $0.9805
  • 100 $0.8413
  • 500 $0.7795
  • 1,000 $0.7516
$0.7516 / $1.3300 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 6000
  • 3,000 $2.1000
  • 6,000 $1.9400
$1.9400 / $2.1000 Buy Now
Win Source Electronics   8153
  • 80 $0.7507
  • 190 $0.6160
  • 295 $0.5967
  • 400 $0.5775
  • 520 $0.5583
  • 695 $0.5005
$0.5005 / $0.7507 Buy Now

US Tariff Estimator: DF40HC(3.0)-80DS-0.4V(51) by Hirose Electric Co Ltd

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

DF40HC(3.0)-80DS-0.4V(51)
Hirose Electric Co Ltd
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for DF40HC(3.0)-80DS-0.4V(51)

DF40HC(3.0)-80DS-0.4V(51) CAD Models

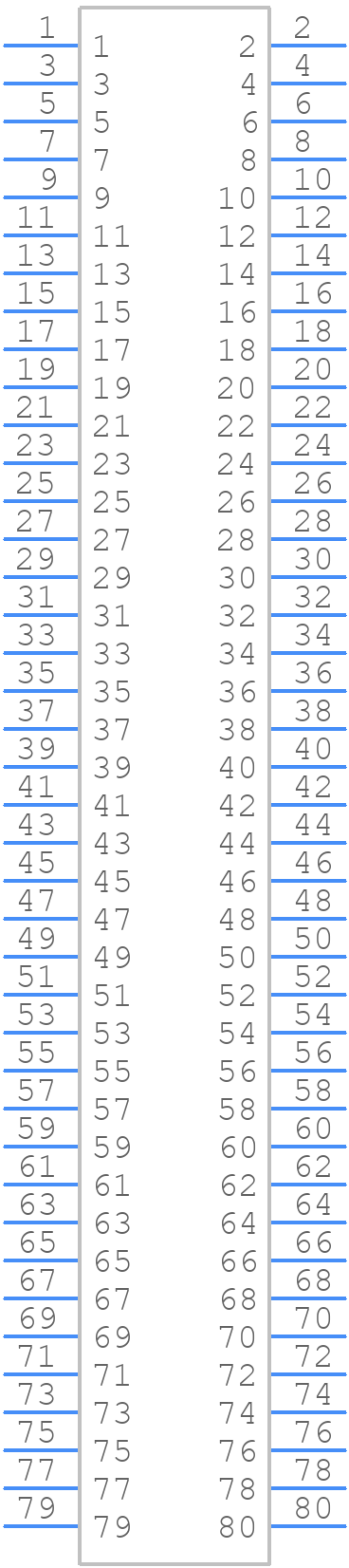

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

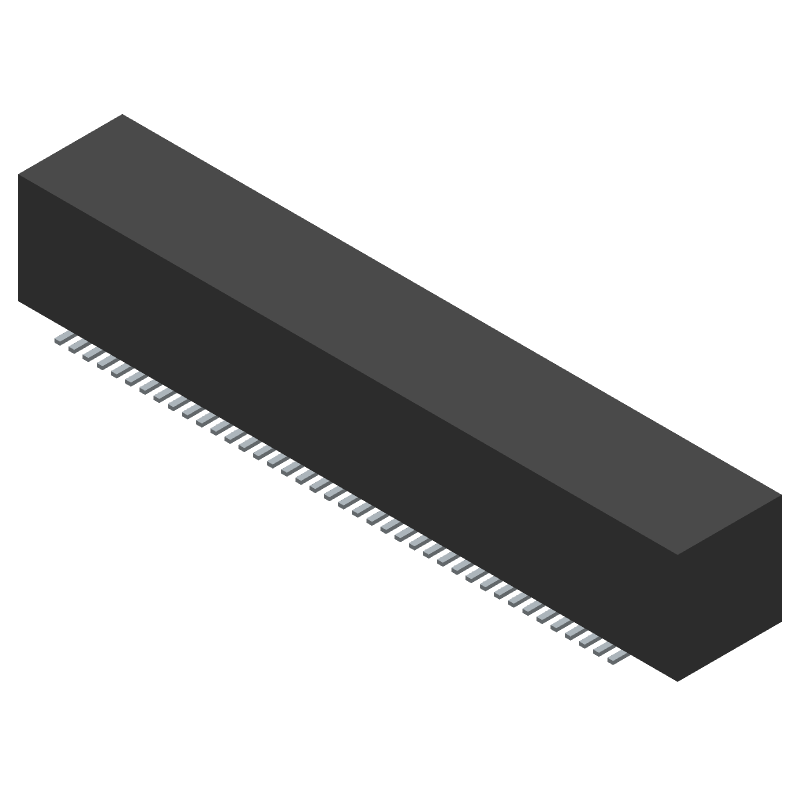

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DF40HC(3.0)-80DS-0.4V(51) Part Data Attributes

Parametric Data
DF40HC(3.0)-80DS-0.4V(51) Hirose Electric Co Ltd
Buy Now Datasheet
Compare Parts:
DF40HC(3.0)-80DS-0.4V(51) Hirose Electric Co Ltd Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer HIROSE ELECTRIC CO LTD
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 12 Weeks
Samacsys Manufacturer Hirose
Body Breadth 0.133 inch
Body Depth 0.114 inch
Body Length 0.732 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD STACKING CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Gold (Au) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance 90 mΩ
Contact Style BELLOWED TYPE
Dielectric Withstanding Voltage 100VAC V
Durability 30 Cycles
Filter Feature NO
Insulation Resistance 50000000 Ω
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e4
Mating Contact Pitch 0.016 inch
Mating Information MULTIPLE MATING PARTS ARE AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -35 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.38 mm
Plating Thickness 1.969u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 0.3 A
Reference Standard UL
Terminal Pitch 0.4 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 80
UL Flammability Code 94V-0
