DP83825IRMQR Information
DP83825IRMQR by Texas Instruments is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DP83825IRMQR | Texas Instruments | Smallest form factor (3-mm by 3-mm), low-power 10/100-Mbps Ethernet PHY transceiver with 50-MHz c |
Price & Stock for DP83825IRMQR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 4 | 381 |
|
$0.4800 / $1.5000 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 2750 |
|
RFQ | |
|
|
LCSC | RMII Ethernet Transceiver HVQFN-24-EP(3x3) Drivers Receivers Transceivers RoHS | 2790 |
|
$0.1222 / $0.2483 | Buy Now |
|
|
New Advantage Corporation | IC-83825 INTERFACE MISC RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 1709 |
|
$2.0500 / $2.2200 | Buy Now |
|
|
Win Source Electronics | IC TXRX FULL/HALF 1/1 24WQFN | 15440 |
|
$0.1142 / $0.1474 | Buy Now |
US Tariff Estimator: DP83825IRMQR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DP83825IRMQR
DP83825IRMQR CAD Models
-

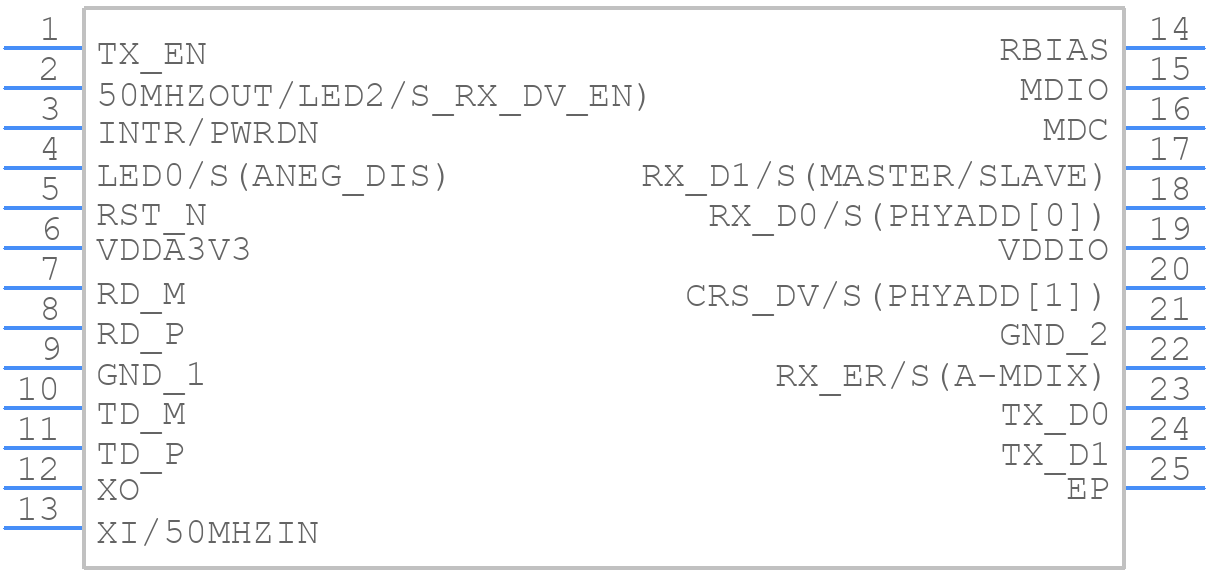

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DP83825IRMQR Part Data Attributes
|
|
DP83825IRMQR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DP83825IRMQR
Texas Instruments
Smallest form factor (3-mm by 3-mm), low-power 10/100-Mbps Ethernet PHY transceiver with 50-MHz c 24-WQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | HVQCCN, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2019-09-07 | |
| Samacsys Manufacturer | Texas Instruments | |
| Data Rate | 100000 Mbps | |
| JESD-30 Code | S-PQCC-N24 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Telecom IC Type | ETHERNET TRANSCEIVER | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
