DSPIC33EP512GM306-I/PT Information
DSPIC33EP512GM306-I/PT by Microchip Technology Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for DSPIC33EP512GM306-I/PT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
66W6851
|
Newark | Dsc, 16Bit, 512Kb, 140Mhz, 3.6V, Tqfp-64, Product Range:Dspic33E Series, Core Frequency:140Mhz, Flash Memory Size:512Kb, No. Of I/O S:53I/O S, Embedded Interface Type:Can, I2C, I2S, Spi, Uart, Usb, Core Supply Voltage:1.8V Rohs Compliant: Yes |Microchip DSPIC33EP512GM306-I/PT RoHS: Compliant Min Qty: 160 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$6.5900 | Buy Now |
|
DISTI #
DSPIC33EP512GM306-I/PT
|
Avnet Americas | - Trays (Alt: DSPIC33EP512GM306-I/PT) COO: Thailand RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 6 Weeks, 0 Days Container: Tray | 0 |
|
$7.0250 / $8.0286 | Buy Now |
|
DISTI #
DSPIC33EP512GM306-I/PT
|
Microchip Technology Inc | 16 Bit DSC, 512KB Flash, 48KB RAM, 64 Pin, 12 PC PWM, 2 QEI, OpAmps, PTG, TQFP, Projected EOL: 2039-07-02 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray | In Stock: 5400 and Alternates Available |
|
$5.7700 / $7.9600 | Buy Now |
|
DISTI #
70415065
|
RS | DSPIC33EP512GM306-I/PT,16BIT DSPIC MICROCONTROLLER,60MHZ,512KB FLASH,64-PIN TQFP Min Qty: 1 Package Multiple: 1 Lead time: 36 Weeks, 0 Days Container: Bulk | 0 |
|
$7.3100 / $8.1200 | RFQ |
|
|
NAC | 512KB Flash, 16KB RAM, 12 MCPWM, 8/8 IC/OC, 2 QEI, 4 Op-Amps, CTMU, PTG. Package: 64 TQFP 10x10x1mm TRAY - dsPIC33F Motor Cntrl Product Line RoHS: Compliant Min Qty: 160 Package Multiple: 160 Container: Tray | 0 |
|
$6.8500 / $8.2600 | Buy Now |
|
DISTI #
DSPIC33EP512GM306-I/PT
|
Avnet Silica | (Alt: DSPIC33EP512GM306-I/PT) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 6 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
DSPIC33EP512GM306-I/PT
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray | 270 |
|
$5.3200 / $7.8000 | Buy Now |
|
|
Chip Stock | MCU-16-bitdsPIC-512KBFlash-48KBRAM--40°Cto+85°C-3.3V-64-PinTQFP-Tray | 2940 |
|
RFQ | |
|
DISTI #
DSPIC33EP512GM306-I/PT
|
EBV Elektronik | (Alt: DSPIC33EP512GM306-I/PT) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 5 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 512KB 53 TQFP-64(10x10) Microcontrollers RoHS | 1 |
|
$10.0303 / $10.3629 | Buy Now |
US Tariff Estimator: DSPIC33EP512GM306-I/PT by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DSPIC33EP512GM306-I/PT
DSPIC33EP512GM306-I/PT CAD Models
-

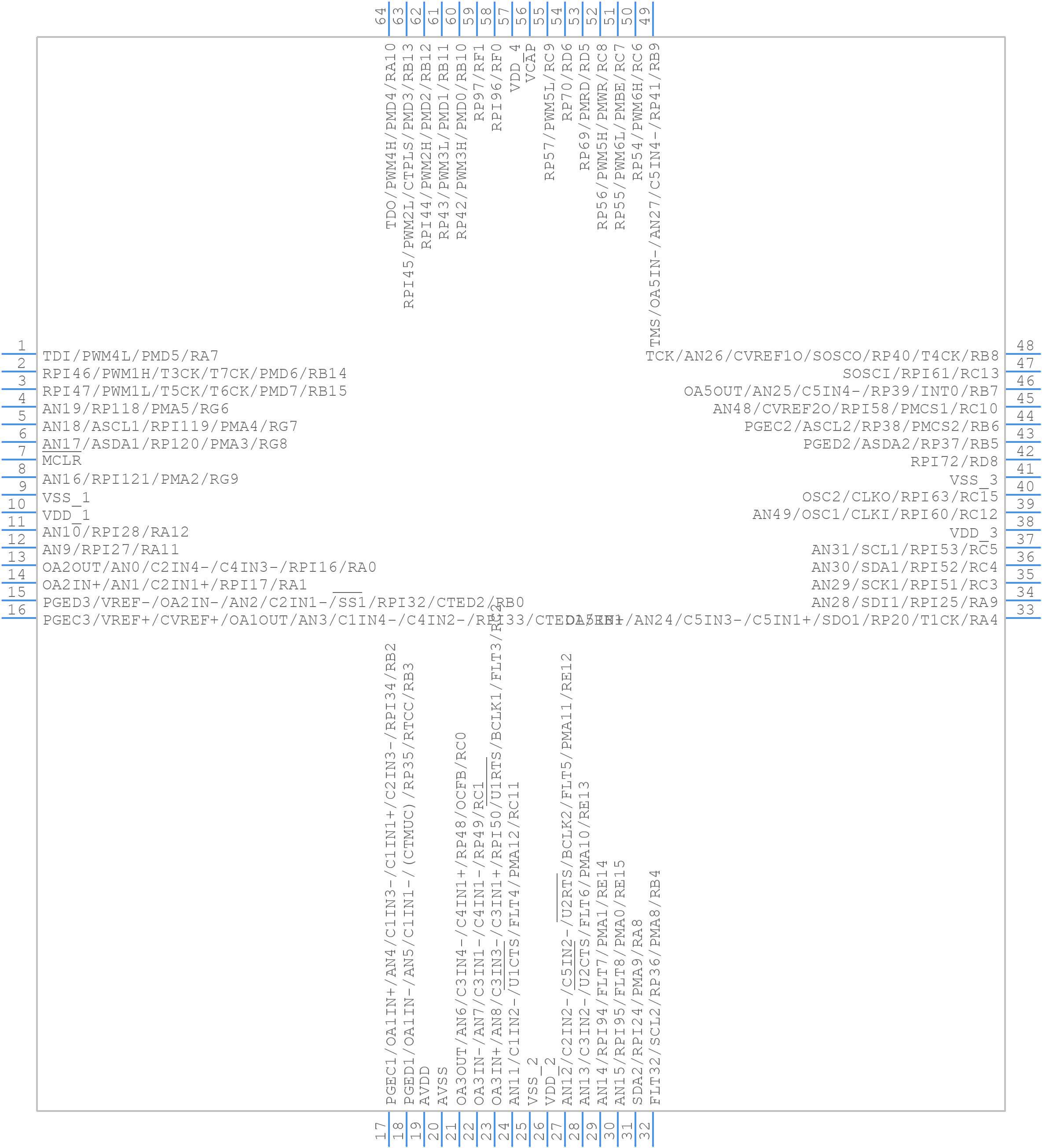

Part Symbol
-
