DTA144EKAT146 Information
DTA144EKAT146 by ROHM Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for DTA144EKAT146
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1680212RL
|
Farnell | TRANSISTOR COO: JP RoHS: Compliant Min Qty: 500 Lead time: 18 Weeks, 1 Days Container: Reel | 1048 |
|
$0.0491 / $0.0687 | Buy Now |
|
DISTI #
1680212
|
Farnell | TRANSISTOR COO: JP RoHS: Compliant Min Qty: 5 Lead time: 18 Weeks, 1 Days Container: Cut Tape | 1048 |
|
$0.0491 / $0.2513 | Buy Now |
|
|
Bristol Electronics | 3000 |
|
RFQ | ||
|
DISTI #
DTA144EKAT146
|
TME | Transistor: PNP, bipolar, BRT, 50V, 0.1A, 200mW, SC59,SOT346 Min Qty: 1 | 0 |
|
$0.0324 / $0.1800 | RFQ |
|
|
Ameya Holding Limited | DTA144EKA Series 50 V 100 mA Surface Mount PNP Digital Transistor - SC-59 Min Qty: 1 | 2600-Authorized Distributor |
|
$0.0304 / $0.1960 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 10978 |
|
$0.0224 | Buy Now |
US Tariff Estimator: DTA144EKAT146 by ROHM Semiconductor
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DTA144EKAT146
DTA144EKAT146 CAD Models
-

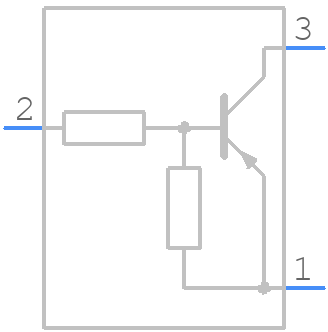

Part Symbol
-
