ECJ1VB1C683K Information
ECJ1VB1C683K by Panasonic Electronic Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
US Tariff Estimator: ECJ1VB1C683K by Panasonic Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ECJ1VB1C683K
ECJ1VB1C683K CAD Models
-
Part Symbol
-
Footprint
-

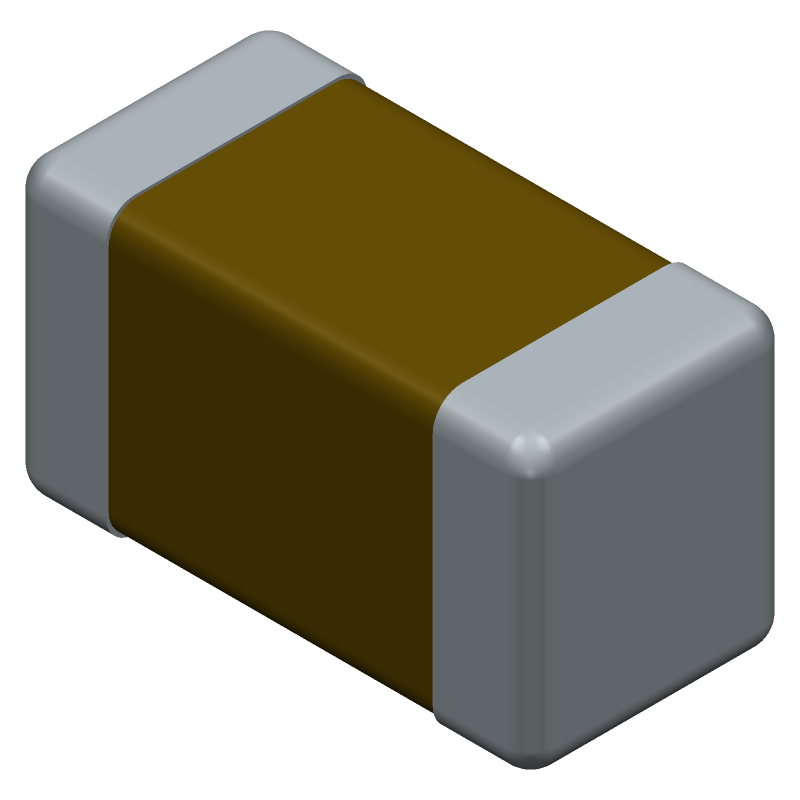

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ECJ1VB1C683K Part Data Attributes
|
|
ECJ1VB1C683K
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ECJ1VB1C683K
Panasonic Electronic Components
CAP 0.068UF 16V 10% X7R SMD-0603 TR-7-PA
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | , 0603 | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 0.068 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.8 mm | |
| JESD-609 Code | e3 | |
| Length | 1.6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PAPER, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 16 V | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.8 mm |
Alternate Parts for ECJ1VB1C683K
This table gives cross-reference parts and alternative options found for ECJ1VB1C683K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ECJ1VB1C683K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| C0603C683K4RALTU | KEMET Corporation | $0.1665 | Ceramic Capacitor, Multilayer, Ceramic, 16V, X7R, -/+15ppm/Cel TC, 0.068uF, 0603 | ECJ1VB1C683K vs C0603C683K4RALTU |
| C0603T683K4RCL7082 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, | ECJ1VB1C683K vs C0603T683K4RCL7082 |
| AS0603KRX7R7BB683 | YAGEO Corporation | Check for Price | Ceramic Capacitor, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.068uF, Surface Mount, 0603, CHIP | ECJ1VB1C683K vs AS0603KRX7R7BB683 |
| C0603T683K4RAL | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.068uF, Surface Mount, 0603, CHIP | ECJ1VB1C683K vs C0603T683K4RAL |
| CC0603KCX7R7BB683 | YAGEO Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.068uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT | ECJ1VB1C683K vs CC0603KCX7R7BB683 |
| C0603X683K4RAL7081 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, | ECJ1VB1C683K vs C0603X683K4RAL7081 |
| HMT18X683K160PSG | Hitano Enterprise Corp | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.068uF, Surface Mount, 0603, CHIP | ECJ1VB1C683K vs HMT18X683K160PSG |
| C0603C683K4REC7411 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, | ECJ1VB1C683K vs C0603C683K4REC7411 |
| 0603H0160683KXBS02A | Knowles Capacitors | Check for Price | Ceramic Capacitor, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.068uF, 0603, | ECJ1VB1C683K vs 0603H0160683KXBS02A |
| HSMT18X683K160PSE | Hitano Enterprise Corp | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.068uF, Surface Mount, 0603, CHIP | ECJ1VB1C683K vs HSMT18X683K160PSE |
