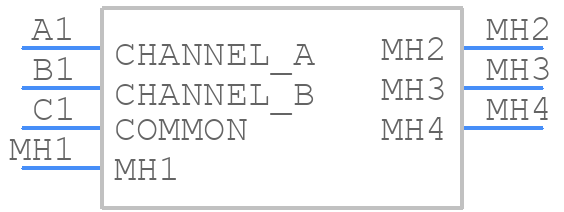

Footprint
-

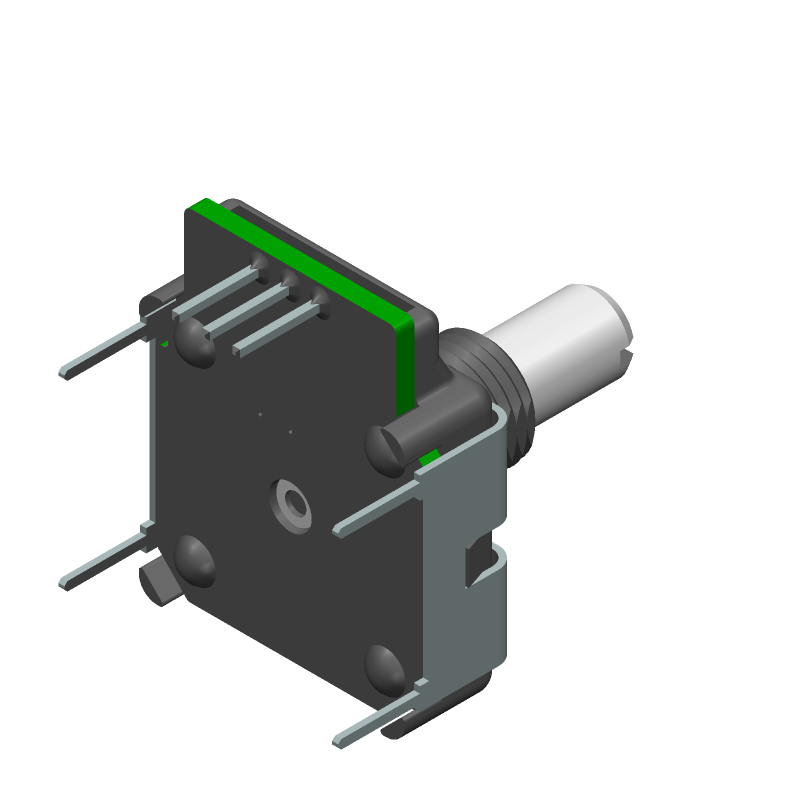

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECW1J-B24-BC0024L by Bourns Inc
Results Overview of ECW1J-B24-BC0024L by Bourns Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ECW1J-B24-BC0024L Information
ECW1J-B24-BC0024L by Bourns Inc is an Optical Position Encoder.
Optical Position Encoders are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for ECW1J-B24-BC0024L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62K3103
|
Newark | Incremental Encoder, Encoder Technology:Mechanical, Encoder Type:Incremental, Encoder Resolution:24Ppr, No. Of Detents:24 Detents, Orientation:Vertical, Push Switch:Without Push Switch, Encoder Output:Quadrature, Shaft Length:19Mm Rohs Compliant: Yes |Bourns ECW1J-B24-BC0024L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 253 |
|
$3.2300 / $4.1200 | Buy Now |
|
DISTI #
62K3103
|
Avnet Americas | Digital Contacting Encoder - Bulk (Alt: 62K3103) COO: Mexico RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk | 297 Partner Stock |
|
$3.9300 / $5.3900 | Buy Now |
|
DISTI #
ECW1J-B24-BC0024L
|
Avnet Americas | Digital Contacting Encoder - Trays (Alt: ECW1J-B24-BC0024L) COO: Mexico RoHS: Compliant Min Qty: 270 Package Multiple: 45 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$3.0875 / $3.4306 | Buy Now |
|
DISTI #
70153788
|
RS | INCREMENTAL QUADRATURE ROTARY ENCODER 120RPM 24 PPR IP40 Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 75 |
|
$5.6900 / $6.4000 | Buy Now |
|
DISTI #
ECW1J-B24-BC0024L
|
TME | Encoder: incremental, THT, 24imp/revol, Pos: 24, two phase A and B Min Qty: 1 | 0 |
|
$3.8500 / $5.1800 | RFQ |
|
DISTI #
ECW1J-B24-BC0024L
|
Avnet Abacus | Digital Contacting Encoder (Alt: ECW1J-B24-BC0024L) RoHS: Compliant Min Qty: 270 Package Multiple: 45 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
LCSC | Through Hole-7P23.4x17mm Encoders RoHS | 5 |
|
$5.1975 / $7.0758 | Buy Now |
|
|
Neutron USA | Encoders 9mm Inserted Slot | 50 |
|
$37.4700 | Buy Now |
Part Details for ECW1J-B24-BC0024L
ECW1J-B24-BC0024L CAD Models
ECW1J-B24-BC0024L Part Data Attributes
|
|
ECW1J-B24-BC0024L
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
ECW1J-B24-BC0024L
Bourns Inc
Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | Compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Configuration | SINGLE, 2 CHANNELS | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | ROTARY POSITION ENCODER | |
| Terminal Finish | TIN |
