EDK476M016A9GAA by: KEMET Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2621, CHIP

Part Details for EDK476M016A9GAA by KEMET Corporation

Results Overview of EDK476M016A9GAA by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Internet of Things (IoT) Space Technology Smart Cities Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Automotive Consumer Electronics Security and Surveillance Aerospace and Defense Healthcare Robotics and Drones

EDK476M016A9GAA Information

EDK476M016A9GAA by KEMET Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for EDK476M016A9GAA

Part # Distributor Description Stock Price Buy
DISTI # 87AC5239
Newark Reel Rohs-Prc |Kemet EDK476M016A9GAA RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1320
  • 5,000 $0.1170
  • 10,000 $0.0960
  • 20,000 $0.0830
  • 30,000 $0.0770
  • 50,000 $0.0670
$0.0670 / $0.1320 Buy Now
DISTI # EDK476M016A9GAA
Avnet Americas - Tape and Reel (Alt: EDK476M016A9GAA) COO: China RoHS: Compliant Min Qty: 20000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days Container: Reel 0
  • 20,000 $0.0691
  • 40,000 $0.0673
  • 80,000 $0.0653
  • 160,000 $0.0632
  • 320,000 $0.0617
$0.0617 / $0.0691 Buy Now
DISTI # 70097576
RS CAPACITOR, ALUM. ELECTROLYTIC, SMT 47UF 16V 20% 6.3X5.4 Min Qty: 20000 Package Multiple: 1 Container: Bulk 0
  • 20,000 $0.1960
  • 100,000 $0.1860
  • 200,000 $0.1760
$0.1760 / $0.1960 RFQ
DISTI # EDK476M016A9GAA
TME Capacitor: electrolytic, SMD, 47uF, 16VDC, Ø6.3x5.4mm, ±20%, 2000h Min Qty: 20000 0
  • 20,000 $0.0810
$0.0810 RFQ
DISTI # KEL24260
Rutronik EDK 47uF 16V 20% 6x5 RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Container: Reel Stock DE - 66000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 1,000 $0.0784
  • 2,000 $0.0739
  • 3,000 $0.0694
  • 6,000 $0.0627
  • 9,000 $0.0605
$0.0605 / $0.0784 Buy Now
DISTI # EDK476M016A9GAA
Avnet Abacus - Tape and Reel (Alt: EDK476M016A9GAA) RoHS: Compliant Min Qty: 20000 Package Multiple: 1000 Lead time: 28 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

US Tariff Estimator: EDK476M016A9GAA by KEMET Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

EDK476M016A9GAA
KEMET Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for EDK476M016A9GAA

EDK476M016A9GAA CAD Models

  • Part Symbol

    schematic symbol

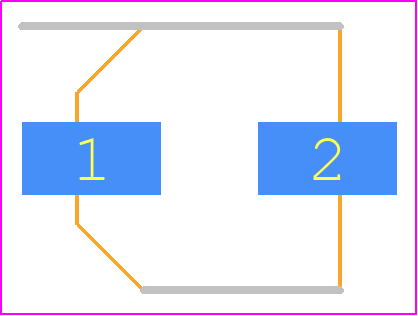

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EDK476M016A9GAA Part Data Attributes

Parametric Data
EDK476M016A9GAA KEMET Corporation
Buy Now Datasheet
Compare Parts:
EDK476M016A9GAA KEMET Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2621, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Factory Lead Time 22 Weeks
Capacitance 47 µF
Capacitor Type Aluminum Electrolytic Capacitor
Diameter 6.3 Mm
Dielectric Material Aluminum (Wet)
Height 5.4 Mm
Leakage Current 0.0075 Ma
Length 6.6 Mm
Mounting Feature Surface Mount
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Shape Cylindrical Package
Package Style Smt
Packing Method Tr, Paper, 15 Inch
Polarity Polarized
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 16 V
Ripple Current 70 Ma
Size Code 2626
Surface Mount Yes
Tan Delta 0.16
Terminal Shape Flat
Width 6.6 Mm

Alternate Parts for EDK476M016A9GAA

This table gives cross-reference parts and alternative options found for EDK476M016A9GAA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EDK476M016A9GAA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
EEE1CA470SP Panasonic Electronic Components $0.1386 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, ROHS COMPLIANT EDK476M016A9GAA vs EEE1CA470SP
EEE1CA470AP Panasonic Electronic Components $0.2044 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, ROHS COMPLIANT EDK476M016A9GAA vs EEE1CA470AP
EDK476M016S9GAA KEMET Corporation Check for Price Aluminum Electrolytic Capacitor EDK476M016A9GAA vs EDK476M016S9GAA
476SML016M Cornell Dubilier Electronics Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, LEAD FREE EDK476M016A9GAA vs 476SML016M
EDL476M016A9GAA KEMET Corporation Check for Price Aluminum Electrolytic Capacitor, EDK476M016A9GAA vs EDL476M016A9GAA
equivalents icon

EDK476M016A9GAA Related Parts

EDK476M016A9GAA Frequently Asked Questions (FAQ)

  • The recommended land pattern for EDK476M016A9GAA can be found in the KEMET Corporation's Land Pattern Recommendation document, which provides guidelines for pad layout, spacing, and geometry to ensure reliable assembly and performance.

  • The EDK476M016A9GAA is a moisture-sensitive device, and it's essential to follow proper handling and storage procedures to prevent damage. This includes storing the devices in a dry, nitrogen-filled package, and baking them according to KEMET's recommended procedures before assembly.

  • The maximum operating temperature range for EDK476M016A9GAA is -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.

  • While the EDK476M016A9GAA is designed to be a robust component, it's still important to consider the effects of vibration on the device's performance and reliability. KEMET recommends following the guidelines outlined in the datasheet and application notes for designing and assembling the device in high-vibration environments.

  • To ensure the EDK476M016A9GAA meets your specific application's requirements, it's essential to carefully review the datasheet and application notes, and consult with KEMET's technical support team if necessary. Additionally, consider performing thorough testing and validation of the device in your specific application to ensure its performance and reliability meet your requirements.
