EEEFK1E470P by: Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP

Part Details for EEEFK1E470P by Panasonic Electronic Components

Results Overview of EEEFK1E470P by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

EEEFK1E470P Information

EEEFK1E470P by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for EEEFK1E470P

Part # Distributor Description Stock Price Buy
DISTI # 85Y4860
Newark Cap, Alu Elec, 47Uf, 25V, Smd Can, Ae Capacitor Case:Radial Can - Smd, Capacitance:47Μf, Voltage Rating:25V, Esr:-, Product Range:Fk Series, Lifetime @ Temperature:2000 Hours @ 105°C, Operating Temperature Min:-55°C, Operating Rohs Compliant: Yes |Panasonic EEEFK1E470P RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 27000
  • 1,000 $0.1600
  • 2,000 $0.1560
  • 4,000 $0.1530
  • 6,000 $0.1500
  • 10,000 $0.1450
$0.1450 / $0.1600 Buy Now
DISTI # 85Y4859
Newark Cap, Alu Elec, Aec-Q200, 47Uf, 25V, Smd, Capacitor Case/Package:Radial Can - Smd, Capacitance:47Μf, Voltage(Dc):25V, Esr:-, Lifetime @ Temperature:2000 Hours @ 105°C, Polarity:Polar, Product Range:Fk Series, Product Diameter:6.3Mm Rohs Compliant: Yes |Panasonic EEEFK1E470P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 19928
  • 1 $0.5050
  • 10 $0.2620
  • 100 $0.2360
$0.2360 / $0.5050 Buy Now
DISTI # 85Y4859
Avnet Americas - Cut Tape Product (Alt: 85Y4859) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Cut Tape 11044 Partner Stock
  • 1 $0.5050
  • 10 $0.2620
  • 100 $0.2360
  • 1,000 $0.1560
  • 5,000 $0.1430
$0.1430 / $0.5050 Buy Now
DISTI # 70068135
RS CAPACITOR, ALUMINUM ELECTROLYTIC, ECAP 47UF 25V E CASE Min Qty: 1 Package Multiple: 1 Container: Bulk 0
  • 1 $0.3440
$0.3440 RFQ
Bristol Electronics   1
RFQ
DISTI # EEEFK1E470P
TME Capacitor: electrolytic, low ESR, SMD, 47uF, 25VDC, Ø6.3x5.8mm Min Qty: 10 19809
  • 10 $0.1720
  • 50 $0.1210
  • 100 $0.1030
  • 500 $0.0910
  • 1,000 $0.0830
  • 2,000 $0.0810
  • 3,000 $0.0790
  • 5,000 $0.0770
  • 10,000 $0.0760
  • 20,000 $0.0750
$0.0750 / $0.1720 Buy Now
Ameya Holding Limited Capacitor: electrolytic, low impedance, SMD, 47uF, 25VDC, ±20% 2000-Authorized Distributor
RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 1266
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
NexGen Digital   8999
RFQ
DISTI # EEEFK1E470P
Avnet Abacus - Tape and Reel (Alt: EEEFK1E470P) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 23 Weeks, 0 Days Container: Reel Abacus - 226000
Buy Now
DISTI # EEEFK1E470P
Avnet Asia (Alt: EEEFK1E470P) RoHS: Compliant Min Qty: 5000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days 0
RFQ
LCSC 47uF 25V 20% 180mA120Hz SMDD6.3xL5.8mm Aluminum Electrolytic Capacitors RoHS 2010
  • 5 $0.1318
  • 50 $0.1037
  • 150 $0.0896
  • 1,000 $0.0749
  • 2,000 $0.0665
  • 5,000 $0.0622
$0.0622 / $0.1318 Buy Now
New Advantage Corporation Cap Alu SMD 47uF 20% 25V 105C 2000hrs 240mA 6.3x5.8 Auto Low ESR RoHS: Compliant Min Qty: 1 Package Multiple: 1000 190000
  • 1,000 $0.2108
  • 190,000 $0.1946
$0.1946 / $0.2108 Buy Now

US Tariff Estimator: EEEFK1E470P by Panasonic Electronic Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

EEEFK1E470P
Panasonic Electronic Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for EEEFK1E470P

EEEFK1E470P CAD Models

  • Part Symbol

    schematic symbol

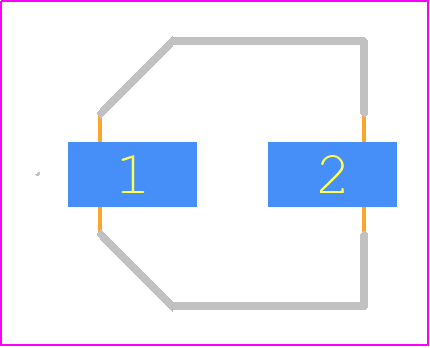

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EEEFK1E470P Part Data Attributes

Parametric Data
EEEFK1E470P Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
EEEFK1E470P Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Samacsys Manufacturer Panasonic
Capacitance 47 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 6.3 mm
Dielectric Material ALUMINUM (WET)
Height 5.8 mm
JESD-609 Code e6
Leakage Current 0.0118 mA
Length 6.6 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED, 15 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 25 V
Reference Standard AEC-Q200
Ripple Current 180 mA
Size Code 2626
Surface Mount YES
Tan Delta 0.14
Terminal Finish Tin/Bismuth (Sn/Bi)
Terminal Shape FLAT
Width 6.6 mm

Alternate Parts for EEEFK1E470P

This table gives cross-reference parts and alternative options found for EEEFK1E470P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEEFK1E470P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
UWT1E470MCL6GS Nichicon Corporation $0.0955 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT EEEFK1E470P vs UWT1E470MCL6GS
EEEFP1E470AP Panasonic Electronic Components $0.2324 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, ROHS COMPLIANT EEEFK1E470P vs EEEFP1E470AP
EMZJ250ARA470MF61G Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 47uF, 2826, EEEFK1E470P vs EMZJ250ARA470MF61G
VZS470M1ETT-0606 Lelon Electronics Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFK1E470P vs VZS470M1ETT-0606
UCQ1E470MCL1GS Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFK1E470P vs UCQ1E470MCL1GS
VZL470M1ETR-0606LS Surge Components Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFK1E470P vs VZL470M1ETR-0606LS
EMZA250ARA470MF61G Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 47uF, 2826, EEEFK1E470P vs EMZA250ARA470MF61G
equivalents icon

EEEFK1E470P Related Parts

EEEFK1E470P Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for EEEFK1E470P is 260°C (500°F) for a maximum of 3 seconds.

  • Yes, EEEFK1E470P is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.

  • Yes, EEEFK1E470P is AEC-Q200 qualified, making it suitable for use in automotive applications.

  • The moisture sensitivity level of EEEFK1E470P is MSL 2, which means it can withstand exposure to moisture for up to 4 days.

  • Yes, EEEFK1E470P is RoHS and REACH compliant, making it suitable for use in environmentally friendly designs.
