EEEFP1C220AR Information
EEEFP1C220AR by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEEFP1C220AR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62W6991
|
Newark | Cap, 22Μf, 16V, Radial, Smd, Ae Capacitor Case:Radial Can - Smd, Capacitance:22Μf, Voltage Rating:16V, Esr:0.36Ohm, Product Range:Fp Series, Lifetime @ Temperature:2000 Hours @ 105°C, Operating Temperature Min:-55°C, Operating Rohs Compliant: Yes |Panasonic EEEFP1C220AR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 27141 |
|
$0.2680 / $0.5830 | Buy Now |
|
DISTI #
47AC4676
|
Newark | Cap, 22Μf, 16V, Smd, Ae Capacitor Case:Radial Can - Smd, Capacitance:22Μf, Voltage Rating:16V, Esr:0.36Ohm, Product Range:Fp Series, Lifetime @ Temperature:2000 Hours @ 105°C, Operating Temperature Min:-55°C, Operating Temperature Rohs Compliant: Yes |Panasonic EEEFP1C220AR RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1390 / $0.1610 | Buy Now |
|
DISTI #
70068211
|
RS | CAPACITOR, ALUMINUM ELECTROLYTIC, ECAP SMT 22UF 16V C CASE Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1440 / $0.1520 | RFQ |
|
DISTI #
EEEFP1C220AR
|
TME | Capacitor: electrolytic, low ESR, SMD, 22uF, 16VDC, Ø5x5.8mm, ±20% Min Qty: 1 | 1770 |
|
$0.1970 / $0.4400 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 1500 |
|
RFQ | |
|
|
ComSIT USA | ALUMINUM ELECTROLYTIC CAPACITOR Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2121 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
EEEFP1C220AR
|
Avnet Abacus | - Tape and Reel (Alt: EEEFP1C220AR) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: EEEFP1C220AR by Panasonic Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for EEEFP1C220AR
EEEFP1C220AR CAD Models
-
Part Symbol
-
Footprint
-

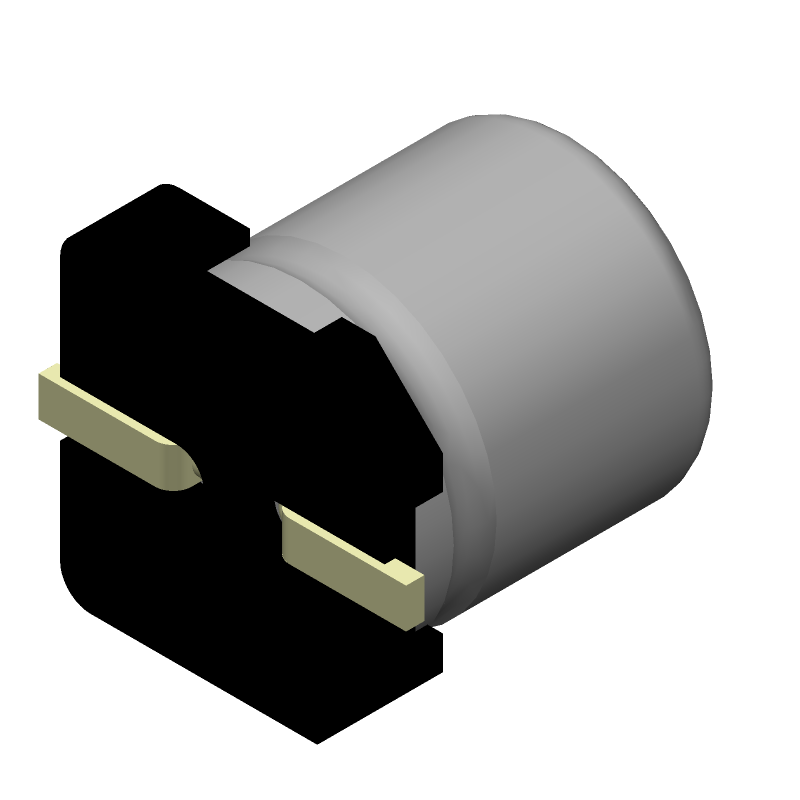

3D Model
