Capacitors / Fixed Capacitors / EEEFP1V470AP
Datasheets
EEEFP1V470AP by: Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, ROHS COMPLIANT

Part Details for EEEFP1V470AP by Panasonic Electronic Components

Results Overview of EEEFP1V470AP by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

EEEFP1V470AP Information

EEEFP1V470AP by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for EEEFP1V470AP

Part # Distributor Description Stock Price Buy
DISTI # 89Y7221
Newark Cap, Alu Elec, 47Uf, 35Vdc, Smd Can, Ae Capacitor Case:Radial Can - Smd, Capacitance:47Μf, Voltage Rating:35V, Esr:0.26Ohm, Product Range:Fp Series, Lifetime @ Temperature:2000 Hours @ 105°C, Operating Temperature Min:-55°C, Rohs Compliant: Yes |Panasonic EEEFP1V470AP RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 68575
  • 1,000 $0.1840
  • 2,000 $0.1800
  • 4,000 $0.1780
  • 6,000 $0.1760
  • 10,000 $0.1740
$0.1740 / $0.1840 Buy Now
DISTI # 85AK4274
Newark Cap, Alu Elec, 47Uf, 35V, Smd, Capacitor Case/Package:Radial Can - Smd, Capacitance:47Μf, Voltage(Dc):35V, Esr:0.26Ohm, Lifetime @ Temperature:2000 Hours @ 105°C, Polarity:Polar, Product Range:Fp Series, Capacitance Tolerance:± 20%rohs Compliant: Yes |Panasonic EEEFP1V470AP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 25994
  • 1 $0.6100
  • 10 $0.3120
  • 100 $0.2830
$0.2830 / $0.6100 Buy Now
DISTI # 70068232
RS CAPACITOR, ALUMINUM ELECTROLYTIC, ECAP SMT 47UF 35V D CASE Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $0.1740
$0.1740 RFQ
DISTI # EEEFP1V470AP
TME Capacitor: electrolytic, low ESR, SMD, 47uF, 35VDC, Ø6.3x5.8mm Min Qty: 1 23999
  • 1 $0.6100
  • 10 $0.2500
  • 50 $0.1740
  • 100 $0.1550
  • 250 $0.1420
  • 500 $0.1340
  • 1,000 $0.1260
  • 2,000 $0.1230
  • 5,000 $0.1200
  • 10,000 $0.1170
$0.1170 / $0.6100 Buy Now
Ameya Holding Limited Capacitor: electrolytic, low impedance, SMD, 47uF, 35VDC, ±20% 4000-Authorized Distributor
RFQ
DISTI # EEEFP1V470AP
Avnet Abacus - Tape and Reel (Alt: EEEFP1V470AP) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 23 Weeks, 0 Days Container: Reel Abacus - 1413000
Buy Now
DISTI # EEEFP1V470AP
Avnet Asia (Alt: EEEFP1V470AP) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days 0
RFQ
Chip Stock RadialCan-SMDALUMINUMELECTROLYTICCAPACITORFP35V47muF±20%0.248Dia6.30mm 17302
RFQ
LCSC 47uF 35V 260m100kHz 20% 300mA100kHz SMDD6.3xL5.8mm Aluminum Electrolytic Capacitors RoHS 5
  • 5 $0.2185
  • 50 $0.1717
  • 150 $0.1516
  • 1,000 $0.1183
  • 2,000 $0.1072
  • 5,000 $0.1005
$0.1005 / $0.2185 Buy Now
New Advantage Corporation Cap Alu SMD 47uF 20% 35V 105C 2000hrs 300mA 6.3x5.8 Auto Low ESR RoHS: Compliant Min Qty: 1 Package Multiple: 1000 1134000
  • 1,000 $0.2425
  • 1,134,000 $0.2238
$0.2238 / $0.2425 Buy Now

US Tariff Estimator: EEEFP1V470AP by Panasonic Electronic Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

EEEFP1V470AP
Panasonic Electronic Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for EEEFP1V470AP

EEEFP1V470AP CAD Models

  • Part Symbol

    schematic symbol

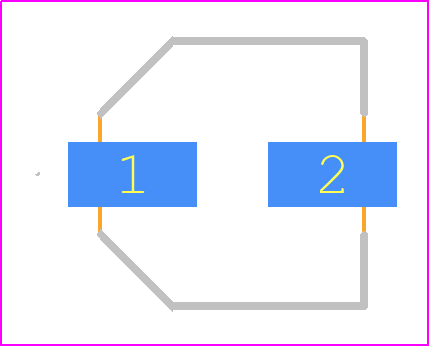

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EEEFP1V470AP Part Data Attributes

Parametric Data
EEEFP1V470AP Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
EEEFP1V470AP Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Factory Lead Time 21 Weeks
Samacsys Manufacturer Panasonic
Additional Feature ESR IS MEASURED AT 100KHZ
Capacitance 47 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 6.3 mm
Dielectric Material ALUMINUM (WET)
ESR 260 mΩ
Height 5.8 mm
JESD-609 Code e6
Leakage Current 0.01645 mA
Length 6.6 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED, 15 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 35 V
Reference Standard AEC-Q200
Ripple Current 195 mA
Size Code 2626
Surface Mount YES
Tan Delta 0.12
Terminal Finish Tin/Bismuth (Sn/Bi)
Terminal Shape FLAT
Width 6.6 mm

Alternate Parts for EEEFP1V470AP

This table gives cross-reference parts and alternative options found for EEEFP1V470AP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEEFP1V470AP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
EEEFK1V470AL Panasonic Electronic Components $0.1055 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFP1V470AP vs EEEFK1V470AL
UUD1V470MCL1GS Nichicon Corporation $0.1551 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT EEEFP1V470AP vs UUD1V470MCL1GS
UWD1V470MCL1GS Nichicon Corporation $0.1567 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT EEEFP1V470AP vs UWD1V470MCL1GS
UCD1V470MCL1GS Nichicon Corporation $0.1838 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFP1V470AP vs UCD1V470MCL1GS
EEEFN1V470L Panasonic Electronic Components $0.1985 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFP1V470AP vs EEEFN1V470L
VZL470M1VTR-0606S Surge Components Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFP1V470AP vs VZL470M1VTR-0606S
VZL470M1VTR-0606LS Surge Components Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFP1V470AP vs VZL470M1VTR-0606LS
EMZJ350GRA470MF61G Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFP1V470AP vs EMZJ350GRA470MF61G
EMVY350ARA470MF61G Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 47uF, 2826, EEEFP1V470AP vs EMVY350ARA470MF61G
VZL470M1VTR-0606KS Surge Components Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, CHIP EEEFP1V470AP vs VZL470M1VTR-0606KS
equivalents icon

EEEFP1V470AP Related Parts

EEEFP1V470AP Frequently Asked Questions (FAQ)

  • The recommended land pattern for EEEFP1V470AP is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm radius corner. The pad should be centered on the component and have a solder mask clearance of 0.2mm.

  • To prevent damage, handle the EEEFP1V470AP by the body, avoiding touching the leads or the capacitor's electrical contacts. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.

  • The maximum allowable voltage derating for EEEFP1V470AP is 80% of the rated voltage. For example, if the rated voltage is 50V, the maximum allowable voltage derating would be 40V.

  • Yes, EEEFP1V470AP is rated for operation up to 105°C. However, the capacitor's lifespan and performance may be affected by prolonged exposure to high temperatures. Consult the datasheet for temperature derating information.

  • Store EEEFP1V470AP components in a cool, dry place, away from direct sunlight and moisture. Avoid storing them in close proximity to strong electromagnetic fields or radiation sources.
