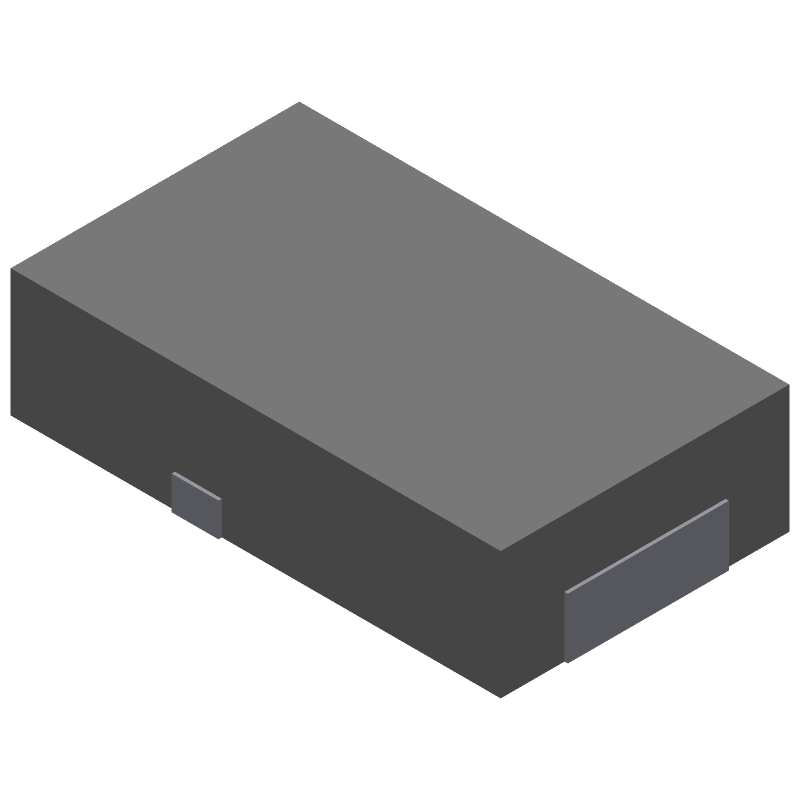

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEFGX0E471L by Panasonic Electronic Components
Results Overview of EEFGX0E471L by Panasonic Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
EEFGX0E471L Information
EEFGX0E471L by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEFGX0E471L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
95W5407
|
Newark | Aluminum Electrolytic Capacitor, 470Uf, 2.5V, 20%, Smd, Full Reel, Capacitance:470Μf, Voltage(Dc):2.5V, Capacitor Case/Package:2917 [7343 Metric], Esr:0.003Ohm, Lifetime @ Temperature:2000 Hours @ 105°C, Capacitance Tolerance:± 20%rohs Compliant: Yes |Panasonic EEFGX0E471L RoHS: Compliant Min Qty: 3500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.9660 / $1.1000 | Buy Now |
|
DISTI #
73AC6925
|
Newark | Cap, 470Μf, 2.5V, 20%, 2917, Capacitance:470Μf, Voltage Rating:2.5V, Ae Capacitor Case:2917 [7343 Metric], Product Range:Sp-Cap Gx Series, Esr:0.003Ohm, Lifetime @ Temperature:1000 Hours @ 105°C, Operating Temperature Min:-40°C, Rohs Compliant: Yes |Panasonic EEFGX0E471L RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.1300 / $2.3600 | Buy Now |
|
DISTI #
EEFGX0E471L
|
TME | Capacitor: polymer, 470uF, 2.5VDC, 10200mA, SMD, SP-CAP, ±20%, 2000h Min Qty: 3500 | 0 |
|
$0.7600 | RFQ |
|
DISTI #
EEFGX0E471L
|
Avnet Abacus | - Tape and Reel (Alt: EEFGX0E471L) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 35 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
DISTI #
EEFGX0E471L
|
Avnet Asia | (Alt: EEFGX0E471L) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 42 Weeks, 0 Days | 0 |
|
RFQ |
Part Details for EEFGX0E471L
EEFGX0E471L CAD Models
EEFGX0E471L Part Data Attributes
|
|
EEFGX0E471L
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEFGX0E471L
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 26 Weeks | |
| Additional Feature | Esr And Ripple Current Is Measured At 100khz | |
| Capacitance | 470 µF | |
| Capacitor Type | Aluminum Electrolytic Capacitor | |
| Dielectric Material | Aluminum (Solid Polymer) | |
| ESR | 3 MΩ | |
| Height | 1.9 Mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.1175 Ma | |
| Length | 7.3 Mm | |
| Mounting Feature | Surface Mount | |
| Negative Tolerance | 20% | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | Rectangular Package | |
| Package Style | Smt | |
| Packing Method | Tr, Embossed, 13 Inch | |
| Polarity | Polarized | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 2.5 V | |
| Ripple Current | 2550 Ma | |
| Size Code | 2917 | |
| Surface Mount | Yes | |
| Tan Delta | 0.06 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | Wraparound | |
| Width | 4.3 Mm |
Alternate Parts for EEFGX0E471L
This table gives cross-reference parts and alternative options found for EEFGX0E471L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEFGX0E471L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| EEFSX0E471XE | Panasonic Electronic Components | $1.6167 | Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT | EEFGX0E471L vs EEFSX0E471XE |
| 875046319001 | Wurth Elektronik | $2.4273 | Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP | EEFGX0E471L vs 875046319001 |
| 477XMPL2R5YG19A | Cornell Dubilier Electronics Inc | Check for Price | Aluminum Electrolytic Capacitor, Aluminum (solid Polymer), | EEFGX0E471L vs 477XMPL2R5YG19A |
| NSPL471M2.5D6VATRF | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Aluminum (solid Polymer), | EEFGX0E471L vs NSPL471M2.5D6VATRF |
| EEFSX0E471E4 | Panasonic Electronic Components | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT | EEFGX0E471L vs EEFSX0E471E4 |
| NSPL471M2.5D6UATRF | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Aluminum (solid Polymer), | EEFGX0E471L vs NSPL471M2.5D6UATRF |
| NSPL471M2.5D6YATRF | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Aluminum (solid Polymer), | EEFGX0E471L vs NSPL471M2.5D6YATRF |
| 477XMPL2R5YG19H | Cornell Dubilier Electronics Inc | Check for Price | Aluminum Electrolytic Capacitor, Aluminum (solid Polymer), | EEFGX0E471L vs 477XMPL2R5YG19H |
| EEFLX0E471R4 | Panasonic Electronic Components | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT | EEFGX0E471L vs EEFLX0E471R4 |
| NSP471M2.5D6UATRF | NIC Components Corp | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 470uF, 2917 | EEFGX0E471L vs NSP471M2.5D6UATRF |
EEFGX0E471L Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for EEFGX0E471L is 260°C (500°F) for a maximum of 3 seconds.
-
Yes, the EEFGX0E471L capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The ESR of the EEFGX0E471L capacitor is 0.015 ohms at 100 kHz.
-
Yes, the EEFGX0E471L capacitor is suitable for high-frequency applications up to 1 GHz due to its low ESR and high resonance frequency.
-
Yes, the EEFGX0E471L capacitor meets the requirements of the AEC-Q200 standard for automotive applications, making it suitable for use in automotive systems.
