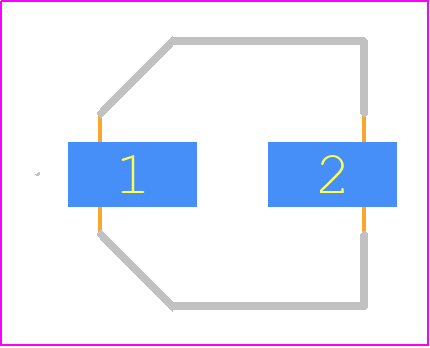

Footprint
-

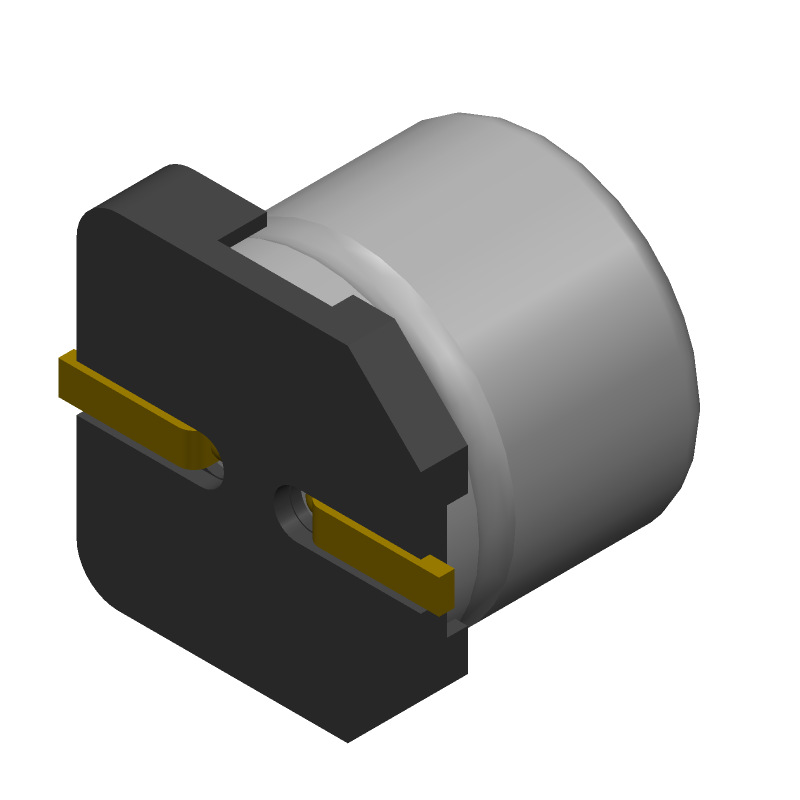

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EEHZC1H220P by Panasonic Electronic Components
Results Overview of EEHZC1H220P by Panasonic Electronic Components
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
EEHZC1H220P Information
EEHZC1H220P by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for EEHZC1H220P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62W7381
|
Newark | Cap, Alu Elec, Hybrid, 22Uf, 50V, Radial, Capacitance:22Μf, Voltage Rating:50V, Product Range:Zc Series, Capacitance Tolerance:± 20%, Ae Capacitor Case:Radial Can - Smd, Esr:0.08Ohm, Lifetime @ Temperature:4000 Hours @ 125°C, Rohs Compliant: Yes |Panasonic EEHZC1H220P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1237 |
|
$0.4800 / $0.7790 | Buy Now |
|
DISTI #
47AC4855
|
Newark | Cap, Alu Elec, Hybrid, 22Uf, 50V, Radial, Capacitance:22Μf, Voltage Rating:50V, Product Range:Zc Series, Capacitance Tolerance:± 20%, Ae Capacitor Case:Radial Can - Smd, Esr:0.08Ohm, Lifetime @ Temperature:4000 Hours @ 125°C, Rohs Compliant: Yes |Panasonic EEHZC1H220P RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 1000 |
|
$0.2940 / $0.3400 | Buy Now |
|
DISTI #
EEHZC1H220P
|
TME | Capacitor: hybrid, 22uF, 50VDC, 750mA, SMD, ESR: 80mΩ, ZC, ±20%, 4000h Min Qty: 10 | 0 |
|
$0.5140 | RFQ |
|
|
ComSIT USA | AVAILABLE EU | 186 |
|
RFQ | |
|
DISTI #
EEHZC1H220P
|
Avnet Abacus | - Tape and Reel (Alt: EEHZC1H220P) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 23 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
DISTI #
EEHZC1H220P
|
Avnet Asia | (Alt: EEHZC1H220P) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
LCSC | 50V 22uF 20% 80m 75mA100Hz SMDD6.3xL5.8mm Aluminum - Polymer Capacitors RoHS | 268 |
|
$0.2569 / $0.5245 | Buy Now |
|
|
New Advantage Corporation | ELCO SMD 22uF 50V 125�C 4000h low ESR Hybrid 6.3x5.8mm RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 1000 |
|
$0.3988 | Buy Now |
Part Details for EEHZC1H220P
EEHZC1H220P CAD Models
EEHZC1H220P Part Data Attributes
|
|
EEHZC1H220P
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EEHZC1H220P
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 50V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 14 Weeks |
Alternate Parts for EEHZC1H220P
This table gives cross-reference parts and alternative options found for EEHZC1H220P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEHZC1H220P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HHXC500ARA220MF61G | Chemi-Con | Check for Price | Aluminum Electrolytic Capacitor, Aluminum (solid Polymer), | EEHZC1H220P vs HHXC500ARA220MF61G |
| HHXC500GRA220MF61G | Chemi-Con | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 50V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2626, CHIP | EEHZC1H220P vs HHXC500GRA220MF61G |
EEHZC1H220P Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for EEHZC1H220P is 260°C (500°F) for 3 seconds or less.
-
Yes, the EEHZC1H220P capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The ESR of the EEHZC1H220P capacitor is 0.015 ohms or less at 100 kHz.
-
Yes, the EEHZC1H220P capacitor is designed to operate in high-temperature environments, with a maximum operating temperature of 125°C (257°F).
-
Yes, the EEHZC1H220P capacitor meets the requirements of the AEC-Q200 standard for automotive applications, making it suitable for use in automotive systems.
