ERA3AEB3922V by: Panasonic Electronic Components

Fixed Resistor, Metal Film, 0.1W, 39200ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

Part Details for ERA3AEB3922V by Panasonic Electronic Components

Results Overview of ERA3AEB3922V by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Consumer Electronics Audio and Video Systems

ERA3AEB3922V Information

ERA3AEB3922V by Panasonic Electronic Components is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for ERA3AEB3922V

Part # Distributor Description Stock Price Buy
DISTI # 55W9569
Newark Res, 39K2, 0.1%, 0.1W, Metal Film, 0603, Resistance:39.2Kohm, Resistance Tolerance:± 0.1%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Metal Film (Thin Film), Resistor Type:High Reliability Rohs Compliant: Yes |Panasonic ERA3AEB3922V RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.0660
  • 10,000 $0.0550
  • 20,000 $0.0480
  • 30,000 $0.0450
  • 50,000 $0.0400
$0.0400 / $0.0660 Buy Now
DISTI # 57AK0255
Newark Thin Film Resistor, chip,0603,1/10W, +/-0 Rohs Compliant: Yes |Panasonic ERA3AEB3922V RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 2,500 $0.0690
$0.0690 Buy Now
DISTI # 70358184
RS 0603 RESISTOR,3A,0.1W, 25PPM,0.1%,39K2 Min Qty: 50 Package Multiple: 1 Container: Bulk 0
  • 50 $0.1150
  • 100 $0.1010
  • 500 $0.0870
$0.0870 / $0.1150 RFQ
DISTI # ERA3AEB3922V
TME Resistor: thin film, SMD, 0603, 39.2kΩ, 100mW, ±0.1%, ERA3AEB, 75V Min Qty: 5000 0
  • 5,000 $0.0325
$0.0325 RFQ
DISTI # ERA3AEB3922V
Avnet Abacus - Tape and Reel (Alt: ERA3AEB3922V) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 21 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # ERA3AEB3922V
Avnet Asia (Alt: ERA3AEB3922V) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days 0
RFQ

US Tariff Estimator: ERA3AEB3922V by Panasonic Electronic Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ERA3AEB3922V
Panasonic Electronic Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ERA3AEB3922V

ERA3AEB3922V CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

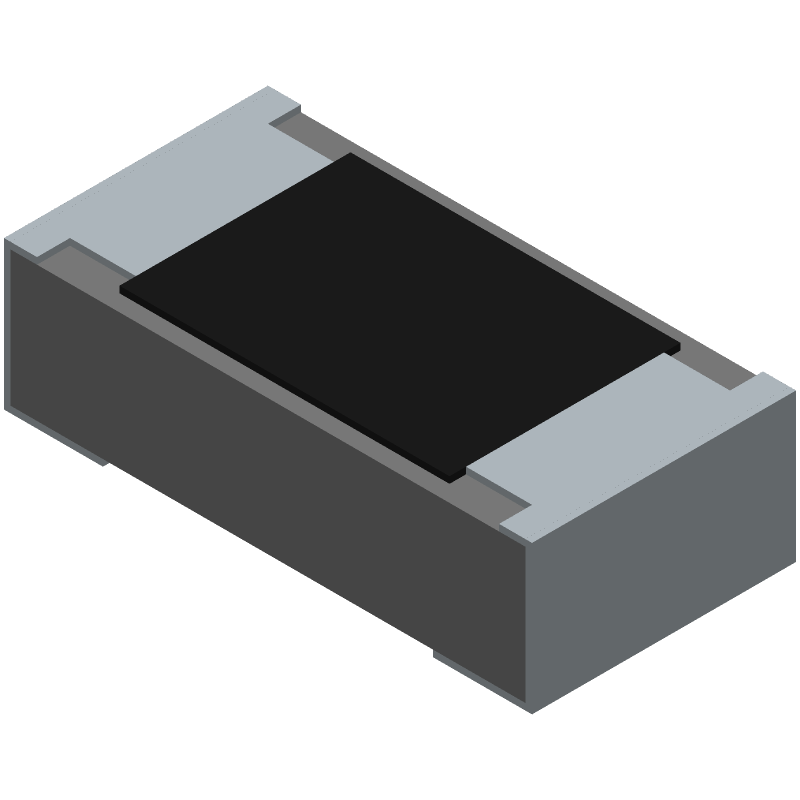

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ERA3AEB3922V Part Data Attributes

Parametric Data
ERA3AEB3922V Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ERA3AEB3922V Panasonic Electronic Components Fixed Resistor, Metal Film, 0.1W, 39200ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 12 Weeks
Samacsys Manufacturer Panasonic
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.6 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.8 mm
Packing Method TR, PUNCHED PAPER, 7 INCH
Rated Power Dissipation (P) 0.1 W
Rated Temperature 85 °C
Reference Standard AEC-Q200, IEC60115-8
Resistance 39200 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 25 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 75 V

Alternate Parts for ERA3AEB3922V

This table gives cross-reference parts and alternative options found for ERA3AEB3922V. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ERA3AEB3922V, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
P0603E3922BNT Vishay Intertechnologies $5.4888 Fixed Resistor, Thin Film, 0.125W, 39200ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP ERA3AEB3922V vs P0603E3922BNT
RT0603WRD1339K2 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 39200ohm, 75V, 0.05% +/-Tol, -25,25ppm/Cel, 0603 ERA3AEB3922V vs RT0603WRD1339K2
SF06R3922BTLA Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 39200ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP ERA3AEB3922V vs SF06R3922BTLA
SF06R3922BTLQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 39200ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP ERA3AEB3922V vs SF06R3922BTLQ
239060443923L YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 39200ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP ERA3AEB3922V vs 239060443923L
AGTF0603-QE-3922AT VENKEL LTD Check for Price Fixed Resistor, Thin Film, 0.1W, 39200ohm, 75V, 0.05% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP ERA3AEB3922V vs AGTF0603-QE-3922AT
PRCA0603TC25X39.2K+/-0.05% Precision Resistive Products Inc Check for Price Fixed Resistor, Thin Film, 0.1W, 39200ohm, 75V, 0.05% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP ERA3AEB3922V vs PRCA0603TC25X39.2K+/-0.05%
P0603E3922BNT Vishay Sfernice Check for Price RES,SMT,THIN FILM,39.2K OHMS,75WV,.1% +/-TOL,-25,25PPM TC,0603 CASE ERA3AEB3922V vs P0603E3922BNT
AR03ABCX3922N Viking Tech Corp Check for Price Fixed Resistor, Thin Film, 0.1W, 39200ohm, 75V, 0.05% +/-Tol, -25,25ppm/Cel, 0603, ERA3AEB3922V vs AR03ABCX3922N
WF06R3922AGLQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 39200ohm, 75V, 0.05% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP ERA3AEB3922V vs WF06R3922AGLQ
