Part Details for ERJ1GNF1000C by Panasonic Electronic Components
Results Overview of ERJ1GNF1000C by Panasonic Electronic Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
ERJ1GNF1000C Information
ERJ1GNF1000C by Panasonic Electronic Components is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for ERJ1GNF1000C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05X8794
|
Newark | Res, Thick Film, 100R, 1%, 0.05W, 0201, Resistance:100Ohm, Resistance Tolerance:± 1%, Power Rating:50Mw, Resistor Case/Package:0201 [0603 Metric], Resistor Technology:Thick Film, Resistor Type:Precision, Voltage Rating:25V Rohs Compliant: Yes |Panasonic ERJ1GNF1000C RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 19209 |
|
$0.0090 / $0.0990 | Buy Now |
|
DISTI #
30AC9549
|
Newark | Res, 100R, 1%, 0.05W, 0201, Thick Film, Resistor Case Style:0201 [0603 Metric], Resistance:100Ohm, Product Range:Erj1Gn Series, Voltage Rating:25V, Resistor Element Material:Thick Film, Power Rating:50Mw, Resistance Tolerance:± 1%, Rohs Compliant: Yes |Panasonic ERJ1GNF1000C RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 1 Container: Reel | 15000 |
|
$0.0060 | Buy Now |
|
DISTI #
ERJ1GNF1000C
|
TME | Resistor: thick film, SMD, 0201, 100Ω, 50mW, ±1%, ERJ1GNF, 25V Min Qty: 1 | 677 |
|
$0.0084 / $0.0900 | Buy Now |
|
DISTI #
ERJ1GNF1000C
|
Avnet Abacus | - Tape and Reel (Alt: ERJ1GNF1000C) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 21 Weeks, 0 Days Container: Reel | Abacus - 60000 |
|
Buy Now | |
|
DISTI #
ERJ1GNF1000C
|
Avnet Asia | (Alt: ERJ1GNF1000C) RoHS: Compliant Min Qty: 30000 Package Multiple: 15000 Lead time: 22 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
New Advantage Corporation | RES SMD 0201 100R 1% 0.05W 200PPM T&R RoHS: Compliant Min Qty: 1 Package Multiple: 15000 | 45000 |
|
$0.0089 / $0.0097 | Buy Now |
US Tariff Estimator: ERJ1GNF1000C by Panasonic Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ERJ1GNF1000C
ERJ1GNF1000C CAD Models
-
Part Symbol
-
Footprint
-

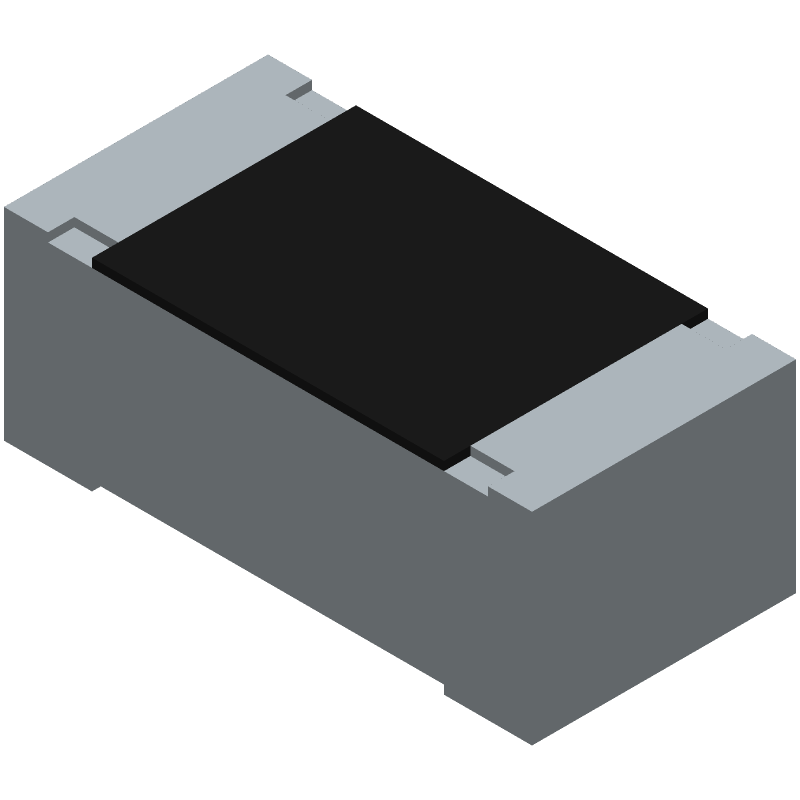

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ERJ1GNF1000C Part Data Attributes
|
|
ERJ1GNF1000C
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ERJ1GNF1000C
Panasonic Electronic Components
Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 25 Weeks, 3 Days | |
| Additional Feature | Precision | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.23 Mm | |
| Package Length | 0.6 Mm | |
| Package Shape | Rectangular Package | |
| Package Style | Smt | |
| Package Width | 0.3 Mm | |
| Packing Method | Tr, Pressed, 7 Inch | |
| Rated Power Dissipation (P) | 0.05 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | Iec60115-8 | |
| Resistance | 100 Ω | |
| Resistor Type | Fixed Resistor | |
| Size Code | 0201 | |
| Surface Mount | Yes | |
| Technology | Metal Glaze/Thick Film | |
| Temperature Coefficient | 200 Ppm/°C | |
| Terminal Finish | Matte Tin Over Nickel | |
| Terminal Shape | Wraparound | |
| Tolerance | 1% | |
| Working Voltage | 25 V |
Alternate Parts for ERJ1GNF1000C
This table gives cross-reference parts and alternative options found for ERJ1GNF1000C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ERJ1GNF1000C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ERJU01F1000C | Panasonic Electronic Components | $0.0377 | Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP | ERJ1GNF1000C vs ERJU01F1000C |
| RK73H1HGTCM1000F | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP, ROHS COMPLIANT | ERJ1GNF1000C vs RK73H1HGTCM1000F |
| RC0201FR-13100RL | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP | ERJ1GNF1000C vs RC0201FR-13100RL |
| ASAS05-1000-FK | ASJ Holdings Limited | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP | ERJ1GNF1000C vs ASAS05-1000-FK |
| ERJ1GEF1000C | Panasonic Electronic Components | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP | ERJ1GNF1000C vs ERJ1GEF1000C |
| RM02FTN1000 | TA-I Technology Co Ltd | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, LEAD FREE | ERJ1GNF1000C vs RM02FTN1000 |
| RM02FLN1000 | TA-I Technology Co Ltd | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, -200,200ppm/Cel, 0201 | ERJ1GNF1000C vs RM02FLN1000 |
| RAT011000FH1 | Ralec | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP | ERJ1GNF1000C vs RAT011000FH1 |
| MC0201L6F1000SE | SPC Multicomp | Check for Price | RES,SMT,THICK FILM,100 OHMS,25WV,1% +/-TOL,-200,200PPM TC,0201 CASE | ERJ1GNF1000C vs MC0201L6F1000SE |
| RC01W1000FBG | Fenghua (HK) Electronics Ltd | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.05W, 100ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP | ERJ1GNF1000C vs RC01W1000FBG |
ERJ1GNF1000C Frequently Asked Questions (FAQ)
-
The recommended land pattern for ERJ1GNF1000C is a rectangular pad with a size of 1.5mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.
-
Handle the ERJ1GNF1000C by the body, avoiding touching the terminals to prevent damage from electrostatic discharge (ESD). Use an anti-static wrist strap or mat during assembly.
-
The maximum power rating of ERJ1GNF1000C is 1/4W (250mW) at an ambient temperature of 70°C.
-
Yes, ERJ1GNF1000C can operate in high-temperature environments up to 150°C, but the power rating should be derated accordingly to prevent overheating.
-
Store ERJ1GNF1000C components in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and avoid stacking components to prevent damage.
