Resistors / Fixed Resistors / ERJ1GNF1602C
Datasheets
ERJ1GNF1602C by: Panasonic Electronic Components

Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP

Part Details for ERJ1GNF1602C by Panasonic Electronic Components

Results Overview of ERJ1GNF1602C by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Electronic Manufacturing

ERJ1GNF1602C Information

ERJ1GNF1602C by Panasonic Electronic Components is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for ERJ1GNF1602C

Part # Distributor Description Stock Price Buy
DISTI # 61AC7550
Newark Res, 16K, 1%, 0.05W, 0201, Thick Film, Resistor Case Style:0201 [0603 Metric], Resistance:16Kohm, Product Range:Erj1G Series, Voltage Rating:25V, Resistor Element Material:Thick Film, Power Rating:50Mw, Resistance Tolerance:± 1%, Rohs Compliant: Yes |Panasonic ERJ1GNF1602C RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 1 Container: Reel 15000
  • 15,000 $0.0060
$0.0060 Buy Now
DISTI # 09AH9262
Newark Res, 16K, 1%, 0.05W, 0201, Thick Film, Resistor Case Style:0201 [0603 Metric], Resistance:16Kohm, Product Range:-, Voltage Rating:25V, Resistor Element Material:Thick Film, Power Rating:50Mw, Resistance Tolerance:± 1%, Temperature Rohs Compliant: Yes |Panasonic ERJ1GNF1602C RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 4519
  • 10 $0.0260
  • 100 $0.0150
  • 1,000 $0.0120
  • 5,000 $0.0100
  • 10,000 $0.0070
$0.0070 / $0.0260 Buy Now
Bristol Electronics   39400
RFQ
DISTI # ERJ1GNF1602C
TME Resistor: thick film, SMD, 0201, 16kΩ, 50mW, ±1%, ERJ1GNF, 25V Min Qty: 15000 0
  • 15,000 $0.0066
  • 30,000 $0.0058
  • 45,000 $0.0056
$0.0056 / $0.0066 RFQ
DISTI # ERJ1GNF1602C
Avnet Abacus (Alt: ERJ1GNF1602C) RoHS: Compliant Min Qty: 30000 Package Multiple: 15000 Lead time: 21 Weeks, 0 Days Abacus - 0
Buy Now

US Tariff Estimator: ERJ1GNF1602C by Panasonic Electronic Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ERJ1GNF1602C
Panasonic Electronic Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ERJ1GNF1602C

ERJ1GNF1602C CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

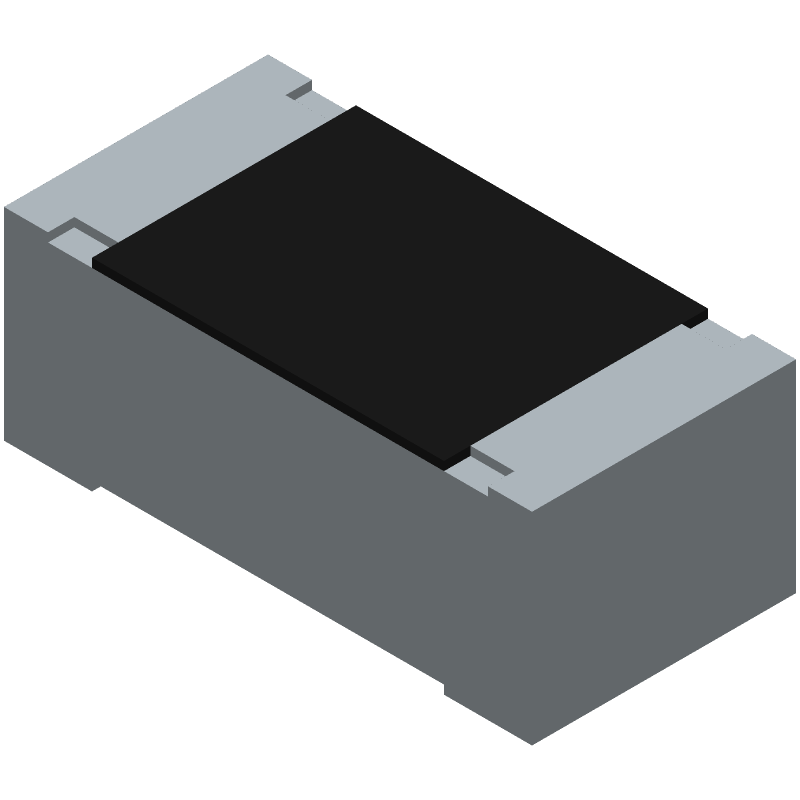

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ERJ1GNF1602C Part Data Attributes

Parametric Data
ERJ1GNF1602C Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ERJ1GNF1602C Panasonic Electronic Components Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Additional Feature Precision
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.23 Mm
Package Length 0.6 Mm
Package Shape Rectangular Package
Package Style Smt
Package Width 0.3 Mm
Packing Method Tr, Pressed, 7 Inch
Rated Power Dissipation (P) 0.05 W
Rated Temperature 70 °C
Reference Standard Iec60115-8
Resistance 16000 Ω
Resistor Type Fixed Resistor
Size Code 0201
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 200 Ppm/°C
Terminal Finish Matte Tin Over Nickel
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 25 V

Alternate Parts for ERJ1GNF1602C

This table gives cross-reference parts and alternative options found for ERJ1GNF1602C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ERJ1GNF1602C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CR0201AFW-1602GAS Bourns Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GNF1602C vs CR0201AFW-1602GAS
CR05-1602-FY ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GNF1602C vs CR05-1602-FY
CPW05-1602-FN ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GNF1602C vs CPW05-1602-FN
RAT011602FH0 Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GNF1602C vs RAT011602FH0
WR02X1602FQL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, -200,200ppm/Cel, 0201, ERJ1GNF1602C vs WR02X1602FQL
ASAS05-1602-FK ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GNF1602C vs ASAS05-1602-FK
RMF02FT1602 TA-I Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GNF1602C vs RMF02FT1602
232280661603 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP, ROHS COMPLIANT ERJ1GNF1602C vs 232280661603
RTT011602FTH Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.05W, 16000ohm, 25V, 1% +/-Tol, -200,200ppm/Cel, 0201, ERJ1GNF1602C vs RTT011602FTH
CPW05-1602-FY ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 16000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP ERJ1GNF1602C vs CPW05-1602-FY
