Part Details for ERJ3GEYJ331V by Panasonic Electronic Components
Results Overview of ERJ3GEYJ331V by Panasonic Electronic Components
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ERJ3GEYJ331V Information
ERJ3GEYJ331V by Panasonic Electronic Components is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for ERJ3GEYJ331V
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65T8629
|
Newark | Res, Thick Film, 330R, 5%, 0.1W, 0603, Resistance:330Ohm, Resistance Tolerance:± 5%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:75V Rohs Compliant: Yes |Panasonic ERJ3GEYJ331V RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 23108 |
|
$0.0110 / $0.0980 | Buy Now |
|
DISTI #
97W7533
|
Newark | Res, Thick Film, 330R, 5%, 0.1W, 0603, Reel, Resistance:330Ohm, Resistance Tolerance:± 5%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Panasonic ERJ3GEYJ331V RoHS: Compliant Min Qty: 50000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0070 | Buy Now |
|
|
Bristol Electronics | Min Qty: 6 | 74542 |
|
$0.2281 / $0.8775 | Buy Now |
|
|
Bristol Electronics | 4041 |
|
RFQ | ||
|
DISTI #
ERJ3GEYJ331V
|
TME | Resistor: thick film, 0603, 330Ω, 100mW, ±5%, ERJ3GEY, 200ppm/°C Min Qty: 1 | 348 |
|
$0.0046 / $0.1000 | Buy Now |
|
DISTI #
ERJ3GEYJ331V
|
Avnet Abacus | - Tape and Reel (Alt: ERJ3GEYJ331V) RoHS: Compliant Min Qty: 50000 Package Multiple: 5000 Lead time: 21 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
DISTI #
ERJ3GEYJ331V
|
Avnet Asia | (Alt: ERJ3GEYJ331V) RoHS: Compliant Min Qty: 25000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
LCSC | 100mW 330 75V 200ppm/ Thick Film Resistor 5% 0603 Chip Resistor - Surface Mount RoHS | 2900 |
|
$0.0026 / $0.0052 | Buy Now |
US Tariff Estimator: ERJ3GEYJ331V by Panasonic Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ERJ3GEYJ331V
ERJ3GEYJ331V CAD Models
-
Part Symbol
-
Footprint
-

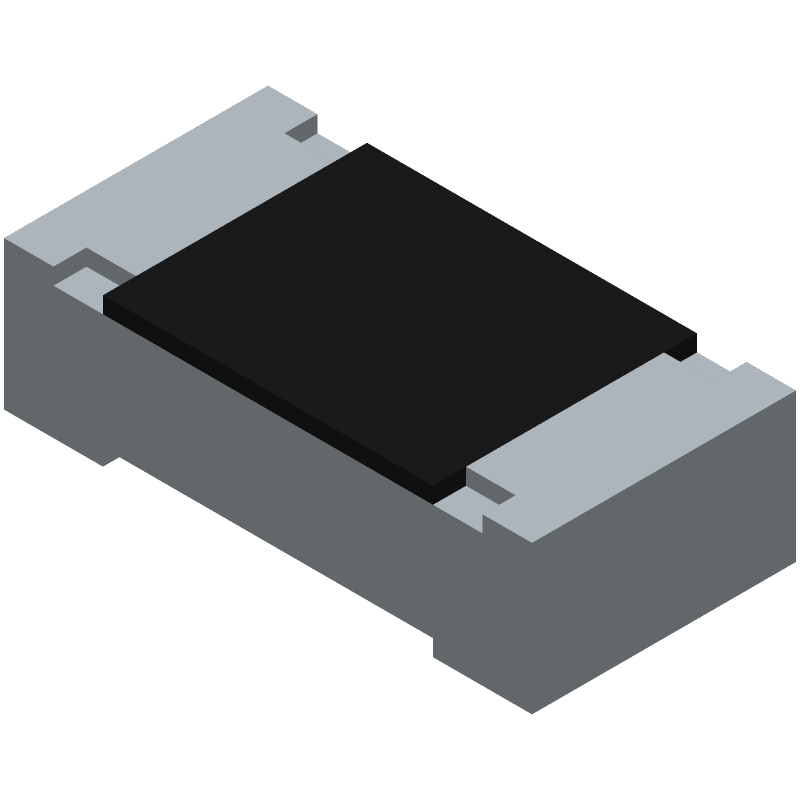

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ERJ3GEYJ331V Part Data Attributes
|
|
ERJ3GEYJ331V
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ERJ3GEYJ331V
Panasonic Electronic Components
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 330ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 Mm | |
| Package Length | 1.6 Mm | |
| Package Shape | Rectangular Package | |
| Package Style | Smt | |
| Package Width | 0.8 Mm | |
| Packing Method | Tr, Punched Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | Aec-Q200, Iec60115-8 | |
| Resistance | 330 Ω | |
| Resistor Type | Fixed Resistor | |
| Size Code | 0603 | |
| Surface Mount | Yes | |
| Technology | Metal Glaze/Thick Film | |
| Temperature Coefficient | 200 Ppm/°C | |
| Terminal Finish | Matte Tin Over Nickel | |
| Terminal Shape | Wraparound | |
| Tolerance | 5% | |
| Working Voltage | 75 V |
Alternate Parts for ERJ3GEYJ331V
This table gives cross-reference parts and alternative options found for ERJ3GEYJ331V. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ERJ3GEYJ331V, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| D11/CRCW0603200330R5%ET6E3 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 330ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, | ERJ3GEYJ331V vs D11/CRCW0603200330R5%ET6E3 |
| RK73B1JATTP331J | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 330ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP | ERJ3GEYJ331V vs RK73B1JATTP331J |
| RK73B1JTTP331J | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 330ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT | ERJ3GEYJ331V vs RK73B1JTTP331J |
| CRCW0603330RJNED | Vishay Intertechnologies | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 330ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP | ERJ3GEYJ331V vs CRCW0603330RJNED |
| D11/CRCW0603-IF200330R5%ET5E3 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 330ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, | ERJ3GEYJ331V vs D11/CRCW0603-IF200330R5%ET5E3 |
| RK73B1JLTP3300J | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 330ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP | ERJ3GEYJ331V vs RK73B1JLTP3300J |
| RK73B1JRTTDD331J | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 330ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT | ERJ3GEYJ331V vs RK73B1JRTTDD331J |
| WR06X331JQR | Walsin Technology Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 330ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT | ERJ3GEYJ331V vs WR06X331JQR |
| RM06J331CTDK | Cal-Chip Electronics | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 330ohm, 75V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP | ERJ3GEYJ331V vs RM06J331CTDK |
| 232270270331 | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 330ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP | ERJ3GEYJ331V vs 232270270331 |
ERJ3GEYJ331V Frequently Asked Questions (FAQ)
-
The recommended land pattern for ERJ3GEYJ331V is a rectangular pad with a size of 1.5mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.
-
Handle the ERJ3GEYJ331V by the body, avoiding touching the terminals to prevent damage from electrostatic discharge (ESD). Use an anti-static wrist strap or mat during assembly.
-
The maximum power rating for ERJ3GEYJ331V is 0.25W, and it is recommended to derate the power according to the ambient temperature.
-
Yes, ERJ3GEYJ331V is suitable for high-frequency circuits up to 100MHz, but it's recommended to evaluate the component's performance in the specific application.
-
Store ERJ3GEYJ331V components in a dry, cool place, away from direct sunlight and moisture. Use a sealed package or airtight container to maintain the component's shelf life.
