ES2J-LTP Information
ES2J-LTP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ES2J-LTP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21AM9608
|
Newark | Rectifier, Single, 600V, 2A, Do-214Ac Rohs Compliant: Yes |Micro Commercial Components ES2J-LTP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3895 |
|
$0.1010 / $0.2720 | Buy Now |
|
|
Bristol Electronics | Min Qty: 34 | 226 |
|
$0.0750 / $0.1500 | Buy Now |
|
DISTI #
ES2J-LTP
|
TME | Diode: rectifying, SMD, 600V, 2A, 35ns, DO214AC,SMA, Ufmax: 1.7V Min Qty: 1 | 0 |
|
$0.0486 / $0.2030 | RFQ |
|
|
New Advantage Corporation | DIODE GEN PURP 600V 2A DO214AC RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 20000 |
|
$0.0645 / $0.0698 | Buy Now |
US Tariff Estimator: ES2J-LTP by Micro Commercial Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ES2J-LTP
ES2J-LTP CAD Models
-
Part Symbol
-
Footprint
-

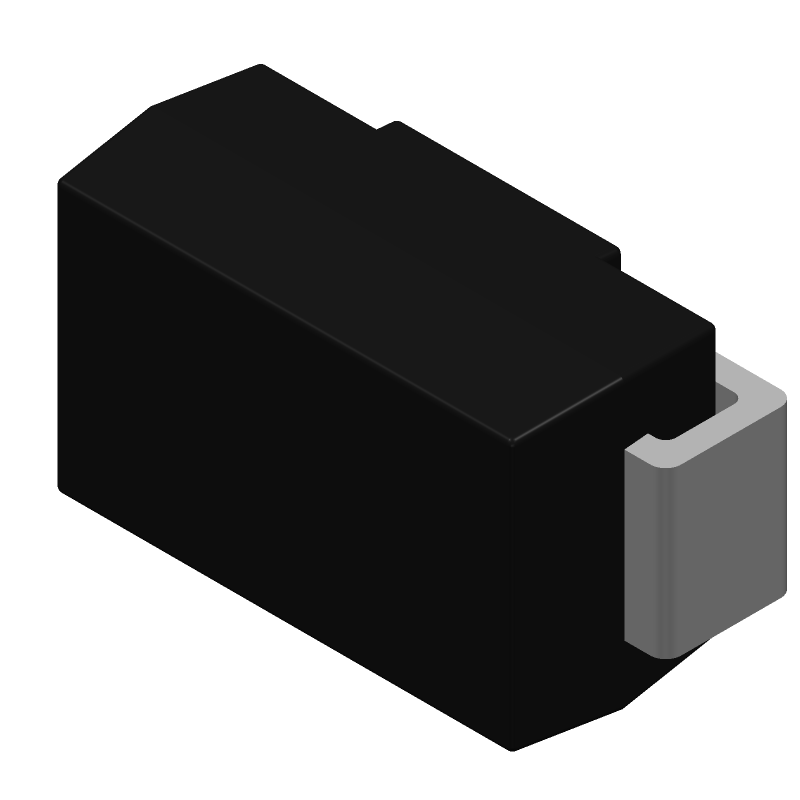

3D Model
